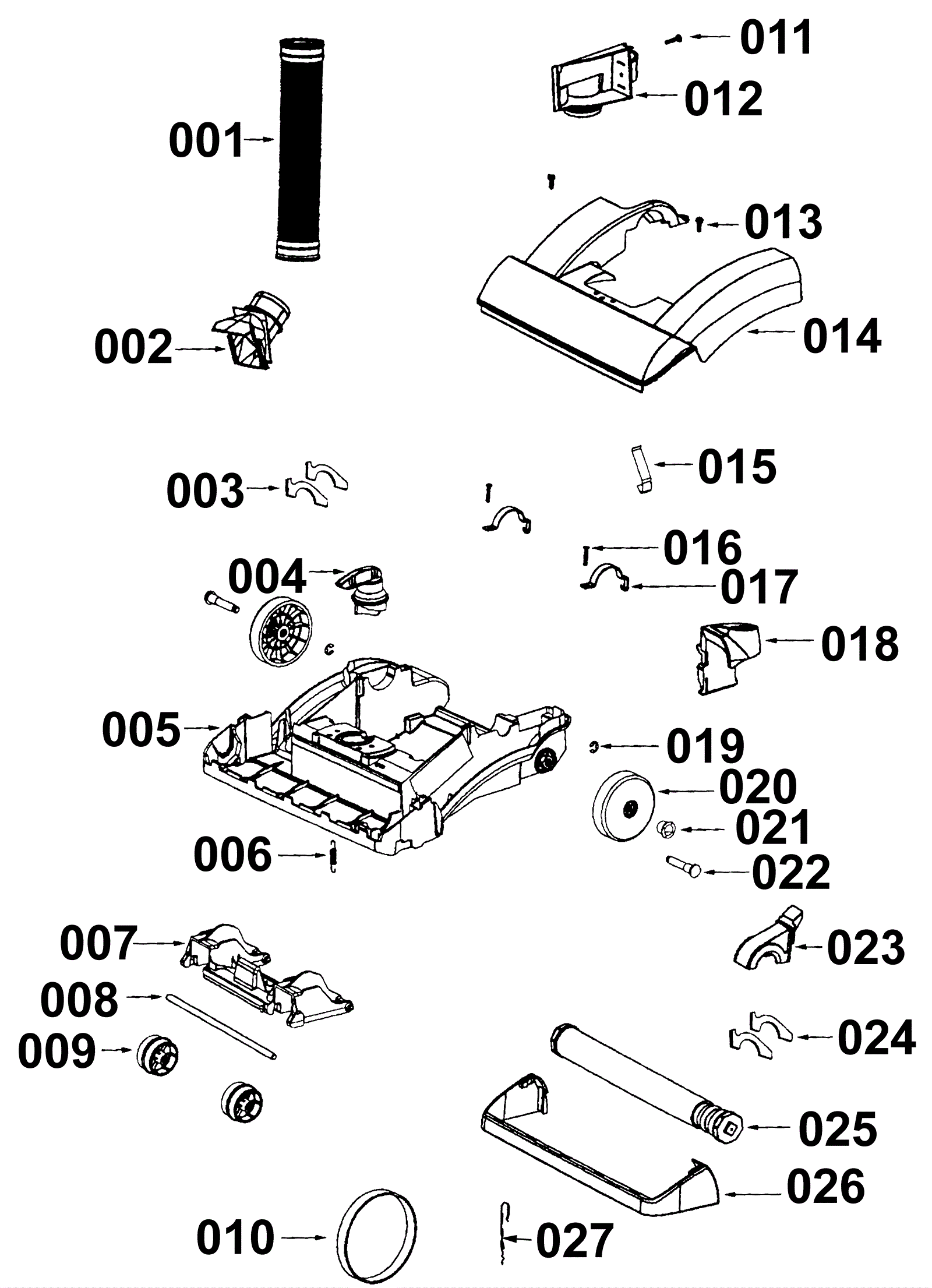

Powerhead Assembly

#PartDescription ReqNotesAvailability
001 182-0906 Base hose assembly
002 182-0906 Base hose assembly
003 182-0907 Felt base
004 182-0908 Knob-height adjustment
005 182-0803 Base assembly (inc. wheels & height adjustment)
006 182-0586 Spring (pkg of 10)
007 182-7951 Wheel carriage
008 182-0835 Front axle
009 182-0581 Front wheel
010 N/A Not available (Belt, pkg of 2)
011 182-0836 Screw 10 pack (OBSOLETE)
012 182-0906 Base hose assembly
013 182-0838 Screw 10 pack
014 182-0910 Hood assembly
015 182-0842 Handle release spring
016 182-0836 Screw 10 pack (OBSOLETE)
017 182-0843 Clamp
018 182-0911 Handle release
019 182-0585 Retaining ring
020a 182-0658 Rear wheel and bushing (set of 2) (OBSOLETE)
020b 182-7981 Rear wheel
021 182-0846 Axle bushing
022 182-0580 Rear axle
023 182-0912 Belt cap assembly
024 182-0913 Felt belt cap
025 182-7953 Brush roll assembly
026 182-0849 Furniture guard
027 182-0915 Guard belt (OBSOLETE)
