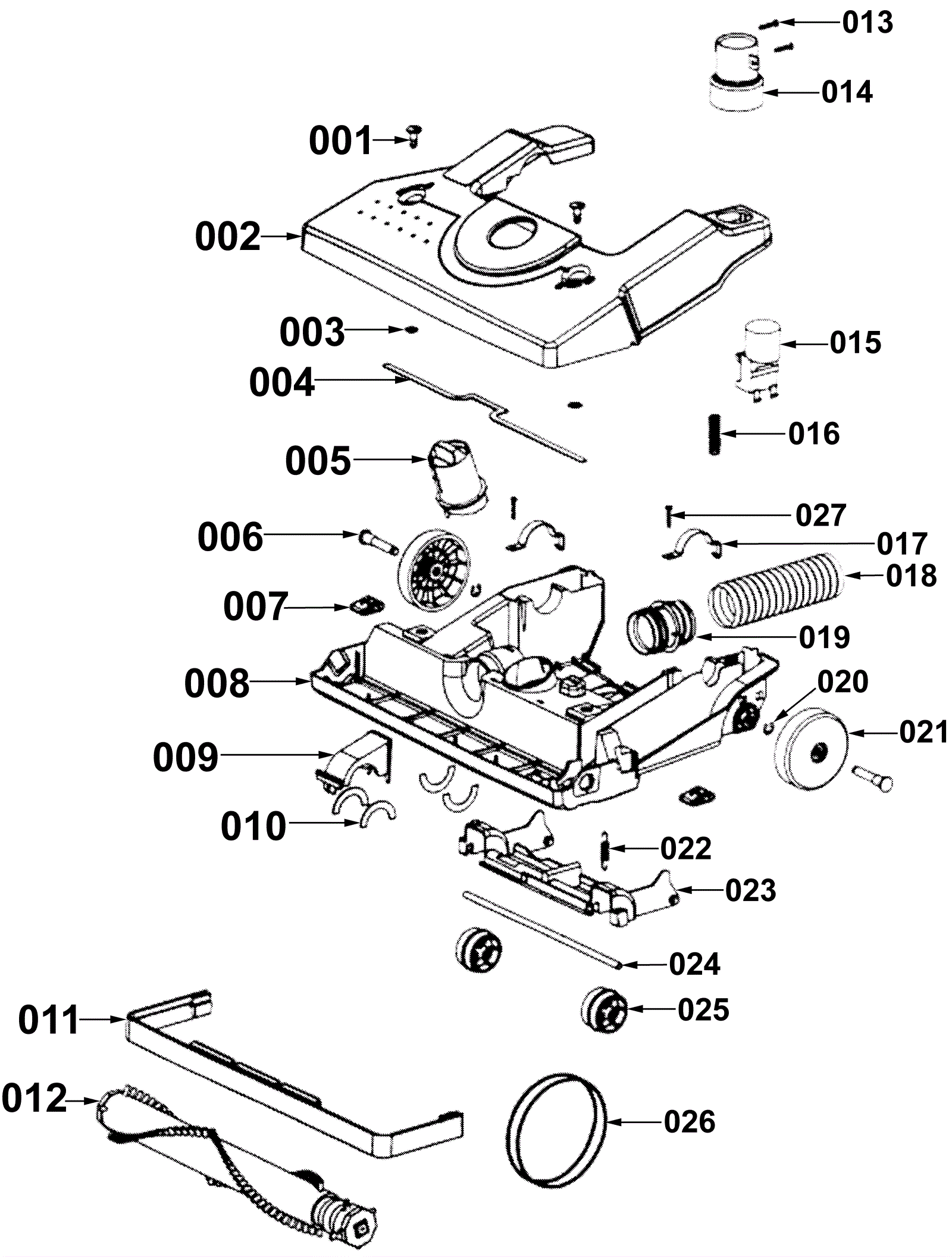

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0593
|
Quarter turn fastener |
|
|
|
002 |
182-0590
|
Hood assembly |
|
|
|
003 |
182-0594
|
Quarter turn retainer |
|
|
|
004 |
182-0588
|
Gasket |
|
|
|
005 |
182-0577
|
Operator height adjustment |
|
|
|
006 |
182-0580
|
Rear axle |
|
|
|
007 |
182-0592
|
Quarter turn receptacle (pack of 10) |
|
|
|
008 |
N/A
|
Not available |
|
(Base assembly) |
|
009 |
182-0584
|
Belt cap and gasket package (OBSOLETE) |
|
includes item 10 |
|
010 |
182-0587
|
Felt gasket |
|
|
|
011 |
182-0576
|
Furniture guard |
|
|
|
012 |
182-0230
|
Disturbulator assembly (OBSOLETE) |
|
|
|
013 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
014 |
182-0149
|
Hose cuff |
|
|
|
015 |
182-0190
|
Handle release (OBSOLETE) |
|
|
|
016 |
182-0589
|
Compression spring |
|
|
|
017 |
182-0112
|
Clamp |
|
|
|
018 |
182-0579
|
Compression hose (purch) (OBSOLETE) |
|
|
|
019 |
182-0578
|
Base adaptor |
|
|
|
020 |
182-0585
|
Retaining ring |
|
|
|
021 |
182-0658
|
Rear wheel and bushing (set of 2) (OBSOLETE) |
|
|
|
022 |
182-0586
|
Spring (pkg of 10) |
|
|
|
023 |
182-0654
|
Wheel carriage |
|
|
|
024 |
182-0596
|
Wheel axle |
|
|
|
025 |
182-0581
|
Front wheel |
|
|
|
026 |
N/A
|
Not available |
|
(Belt, pkg of 2) |
|
