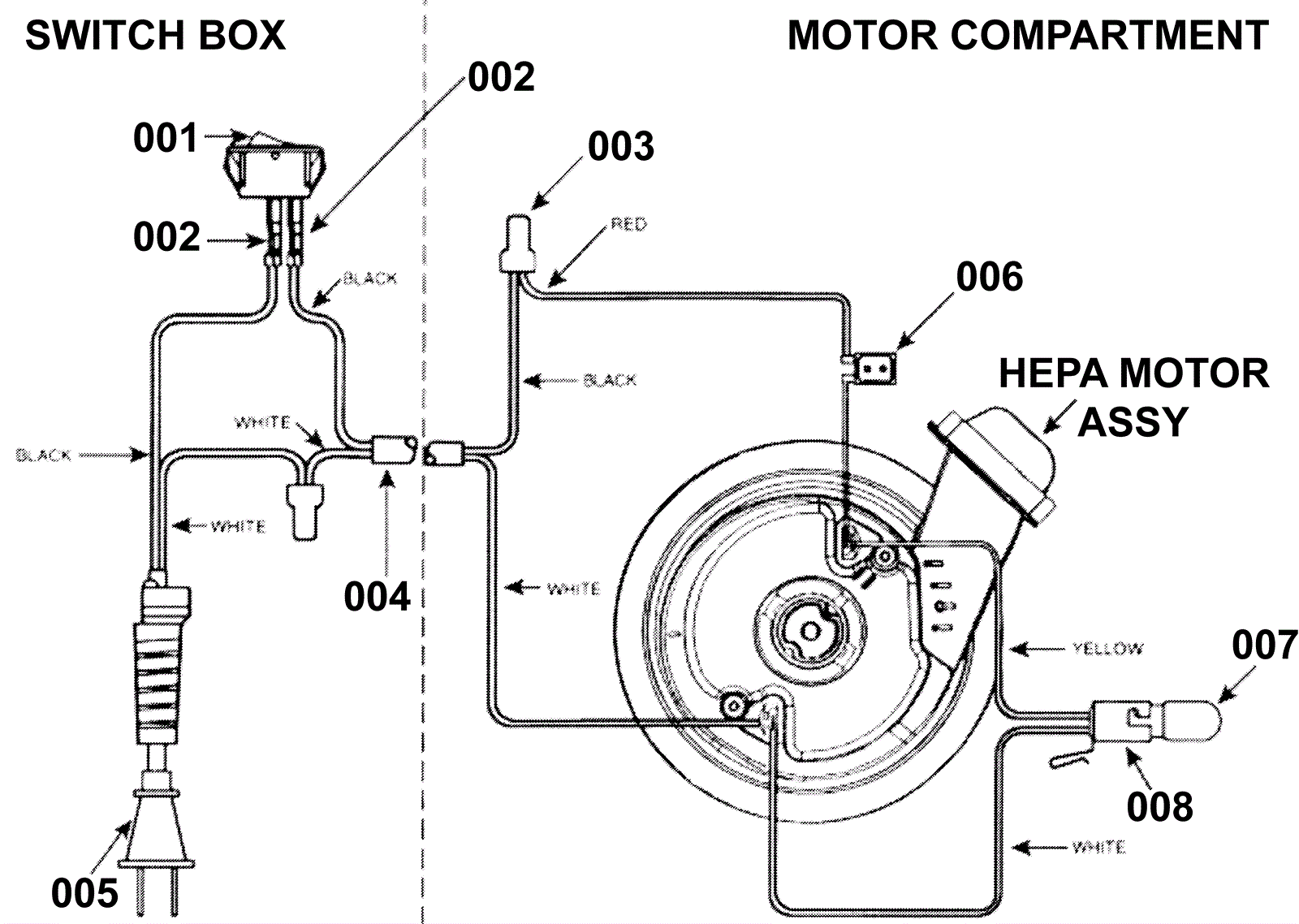

SANITAIRE SC4570BT Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 182-0622 Rocker switch $5.92 usually ships 10-16 days
002 182-0813 Connector $0.99 usually ships 1-5 days
003 999-0425 Nut 9/16-12 hex slotted plain finish $3.01 ships same day
004 182-0814 Upper cord assembly $5.75 usually ships 1-5 days
005 182-0815 Cord and terminal assembly Call for price usually ships 1-5 days
006 182-0693 Thermostat and terminal assembly $7.25 usually ships 1-5 days
007 992-9513 15watt double bulb $1.34 usually ships 24-37 days
008 182-0601 Headlamp socket and terminal $3.88 usually ships 1-5 days
