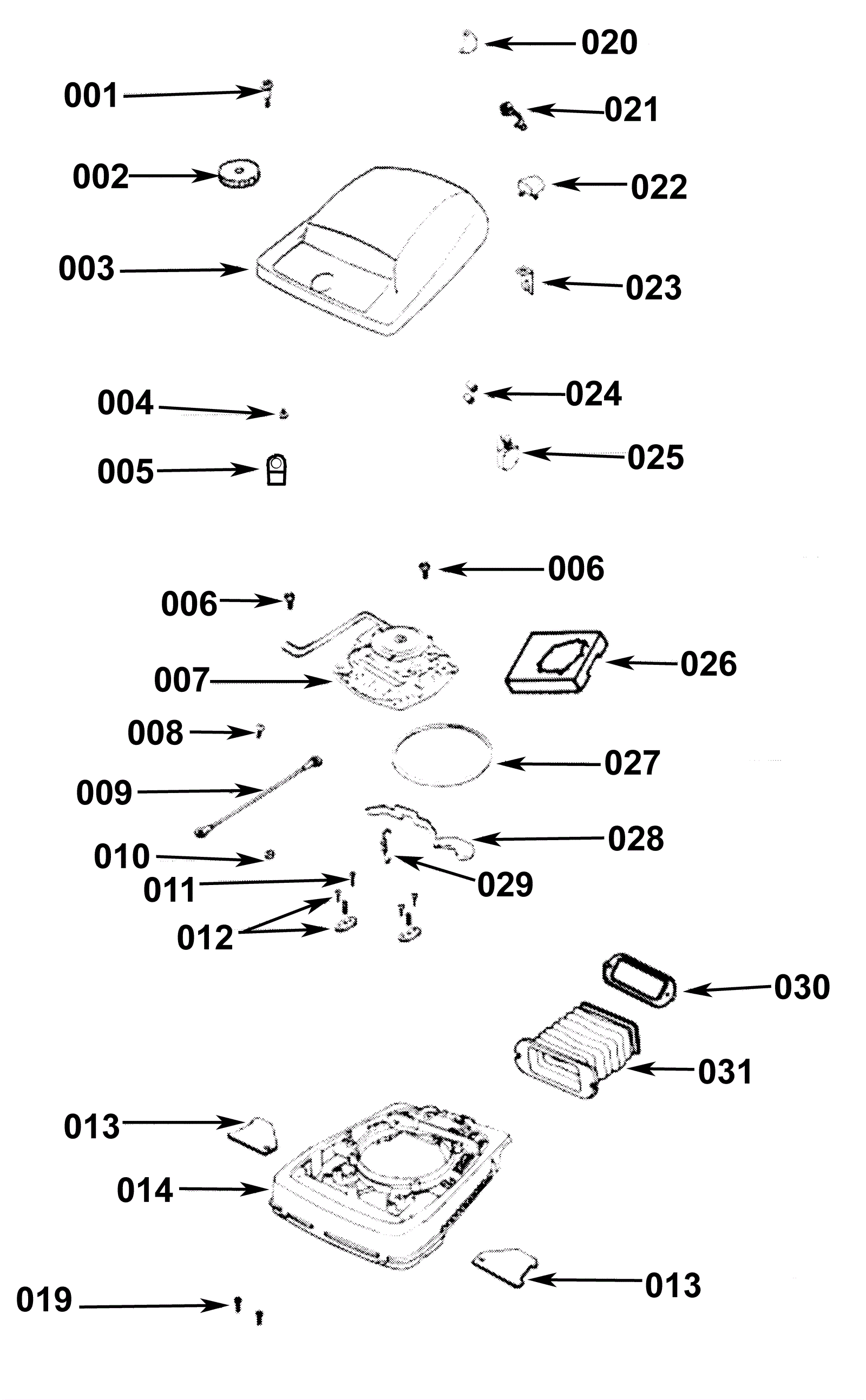

C2132A Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 182-0003 Shoulder screw $14.01 ships same day
002 182-0004 Knob $4.61 usually ships 12-20 days
003 182-0754 Hood assembly packaged $31.67 usually ships 1-5 days
004 182-0034 Screw 10-14 x 1/2 pan head plastite $4.61 ships same day
005 182-0755 Cable clamp $3.95 usually ships 1-5 days
006 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 ships same day
007 182-0185 Motor assembly $58.04 ships same day
008 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 ships same day
009 182-0129 Wire and terminal assembly $3.29 usually ships 12-20 days
010 182-0756 Nut (pkg of 10) $3.16 usually ships 1-5 days
011 182-0008 Motor mounting screw $4.61 ships same day
012 182-0013 Screw and clamp assembly $3.45 ships same day
013 182-0014 Wheel cover $3.37 usually ships 12-20 days
014a 182-0015 Base assembly $34.09 usually ships 12-20 days
014b 182-0115 Right side cam $4.61 usually ships 12-20 days
014c 182-0116 Left side cam $2.72 ships same day
014d 182-0029 Cam rivet $1.05 ships same day
014e N/A Not available Call for price Not available (steel washer) usually ships 3-26 days
019 182-0016 Screw $0.90 usually ships 12-20 days
020 182-0018 Bracket $3.29 usually ships 1-5 days
021 182-0017 Strain relief bushing $5.71 usually ships 12-20 days
022 182-0006 Button switch $3.29 usually ships 1-5 days
023 182-0020 Switch clip $4.03 usually ships 12-20 days
024 998-0062 Wire nut (blue) $0.99 ships same day
025 182-0019 Push switch $8.25 ships same day
026 182-0757 Separator assembly $9.23 usually ships 1-5 days
027 182-0010 Motor seal gasket $0.99 ships same day
028 182-0023 Foot pedal $4.71 usually ships 12-20 days
029 182-0011 Foot pedal spring $4.09 ships same day
030 182-0025 Bellows clamp $7.81 ships same day
031 182-0026 Bellows $23.84 usually ships 12-20 days
