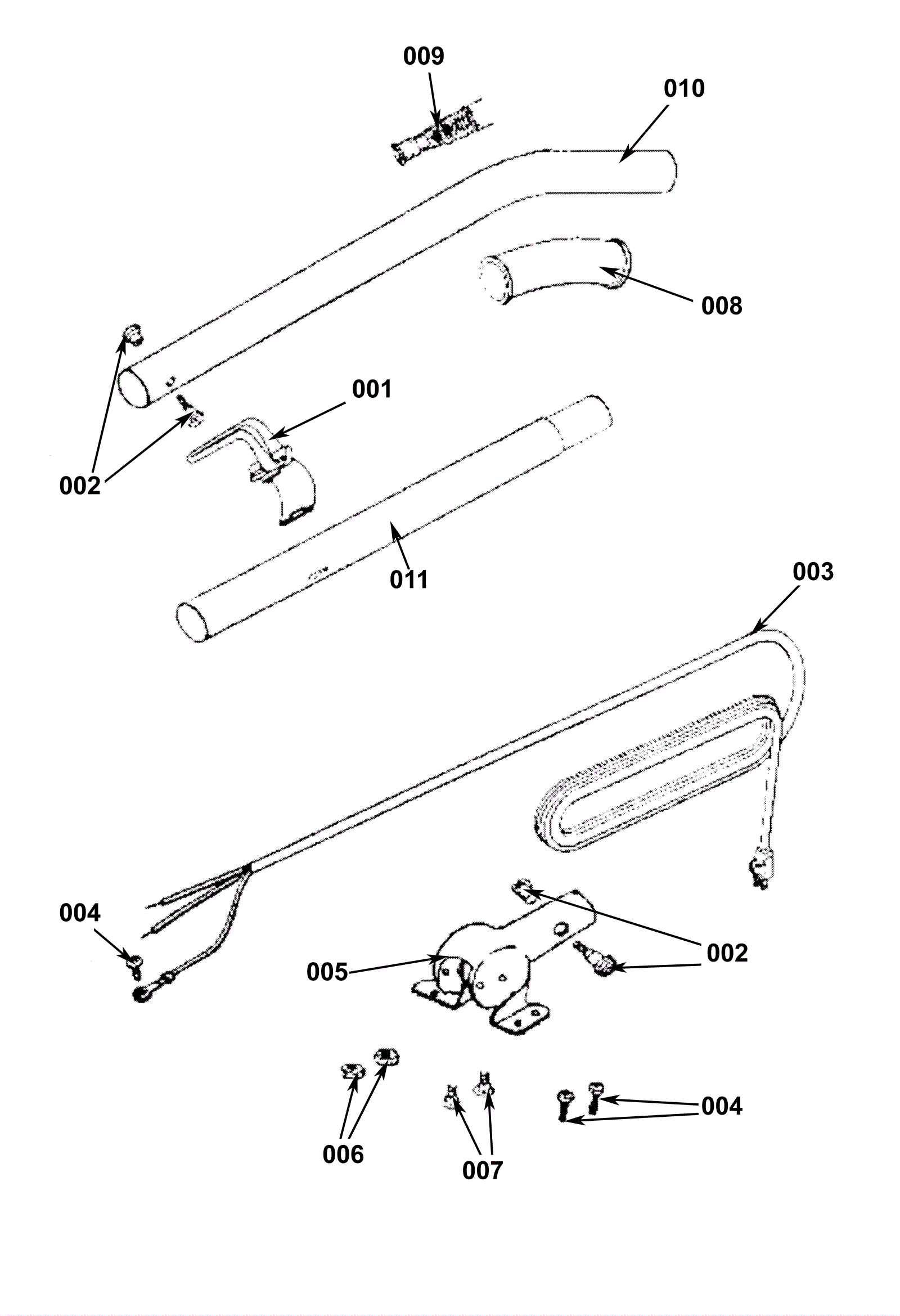

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0100
|
Cord hook set |
|
|
|
002 |
182-0075
|
Screw and nut assembly |
|
|
|
003a |
182-0077
|
18/3 power cord 50 foot (black) |
|
|
|
003b |
991-5007
|
18/3 replacement power cord 50 foot (black) |
|
|
|
004 |
182-0008
|
Motor mounting screw |
|
|
|
005 |
182-0079
|
Handle socket assembly |
|
|
|
006 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
|
007 |
182-0081
|
Bolt 10-24 x 5/8 carriage head |
|
|
|
008 |
182-0082
|
Handle grip |
|
|
|
009 |
182-0140
|
Strain relief |
|
|
|
010 |
182-0074
|
Upper handle assembly |
|
|
|
011 |
182-0138
|
Lower handle tube |
|
|
|
