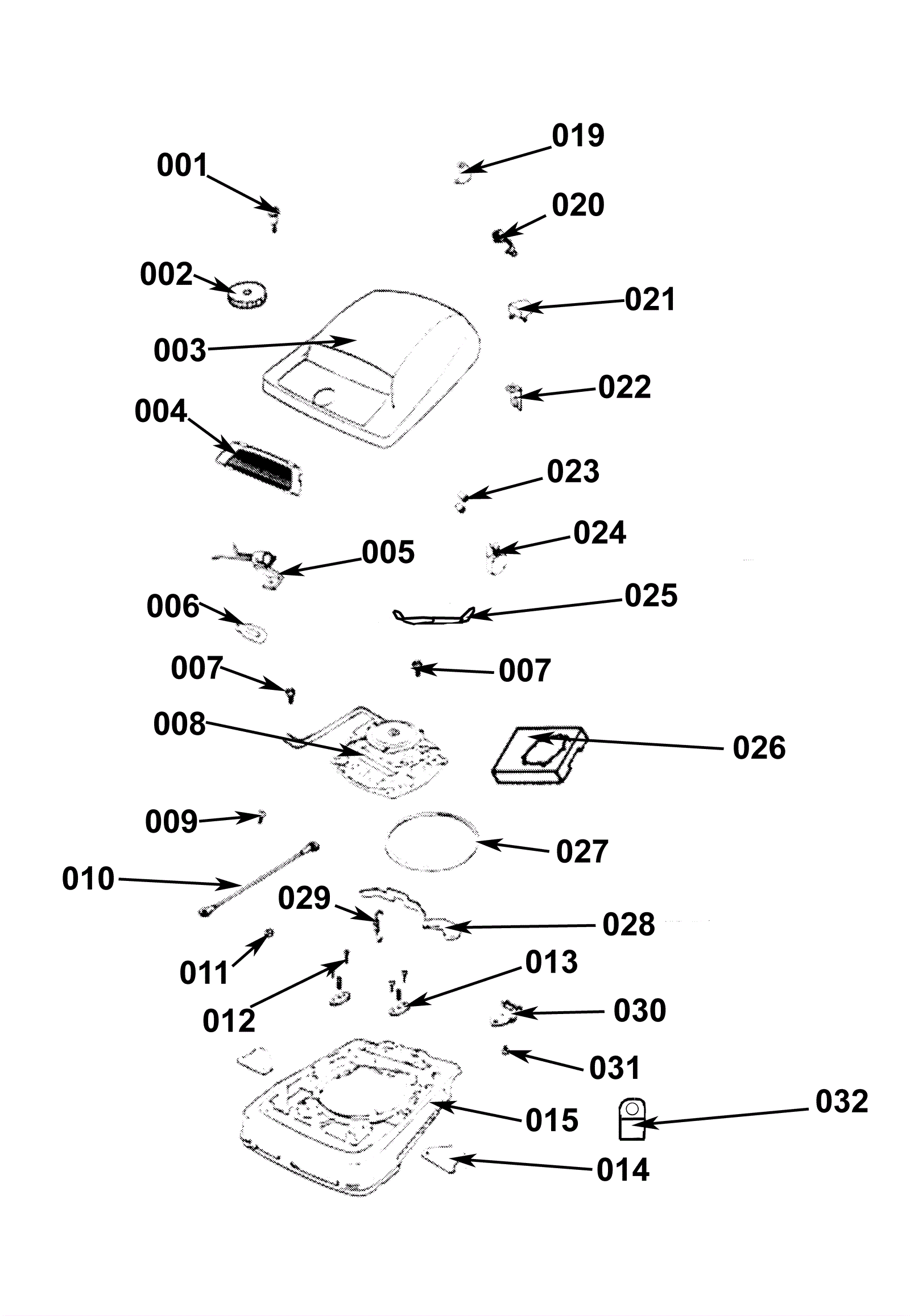

C2094G Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 182-0003 Shoulder screw $12.74 ships same day
002 182-0004 Knob $4.19 usually ships 6-16 days
003 182-0750 Hood assembly (OBSOLETE) $20.99 usually ships 6-16 days
004 182-0751 Hood lens $6.00 usually ships 6-16 days
005 182-0153 Headlight socket assembly $7.79 usually ships 6-16 days
006 182-0155 Light bulb $3.06 ships same day
007 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 ships same day
008 182-0009 120V vacuum motor assembly $63.34 ships same day
009 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 ships same day
010 182-0129 Wire and terminal assembly $2.99 usually ships 6-16 days
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 ships same day
012 182-0008 Motor mounting screw $4.19 usually ships 6-16 days
013 182-0013 Screw and clamp assembly $3.14 usually ships 6-16 days
014 182-0014 Wheel cover $3.06 usually ships 6-16 days
015a 182-0182 Base assembly $41.26 usually ships 6-16 days
015b 182-0115 Right side cam $4.19 usually ships 6-16 days
015c 182-0116 Left side cam $2.72 ships same day
015d 182-0029 Cam rivet $1.05 ships same day
015e N/A Not available Call for price Not available (steel washer) usually ships 3-26 days
019 182-0018 Bracket $2.99 usually ships 1-5 days
020 182-0017 Strain relief bushing $2.08 ships same day
021 182-0006 Button switch $2.99 usually ships 1-5 days
022 182-0020 Switch clip $2.56 ships same day
023 998-0062 Wire nut (blue) $0.99 ships same day
024 182-0019 Push switch $8.25 ships same day
025 182-0753 Light shield $0.90 usually ships 1-5 days
026 182-0022 Air separator $4.19 usually ships 6-16 days
027 182-0010 Motor seal gasket $0.90 ships same day
028 182-0023 Foot pedal $4.28 usually ships 6-16 days
029 182-0011 Foot pedal spring $3.72 ships same day
030 182-0119 Bag clip retainer bracket $1.68 ships same day
031 182-0034 Screw 10-14 x 1/2 pan head plastite $4.19 ships same day
032 182-0125 P clamp $2.44 usually ships 6-16 days
N/S 182-0002 6 Piece attachment set for 12 uprights $25.58 usually ships 1-5 days
