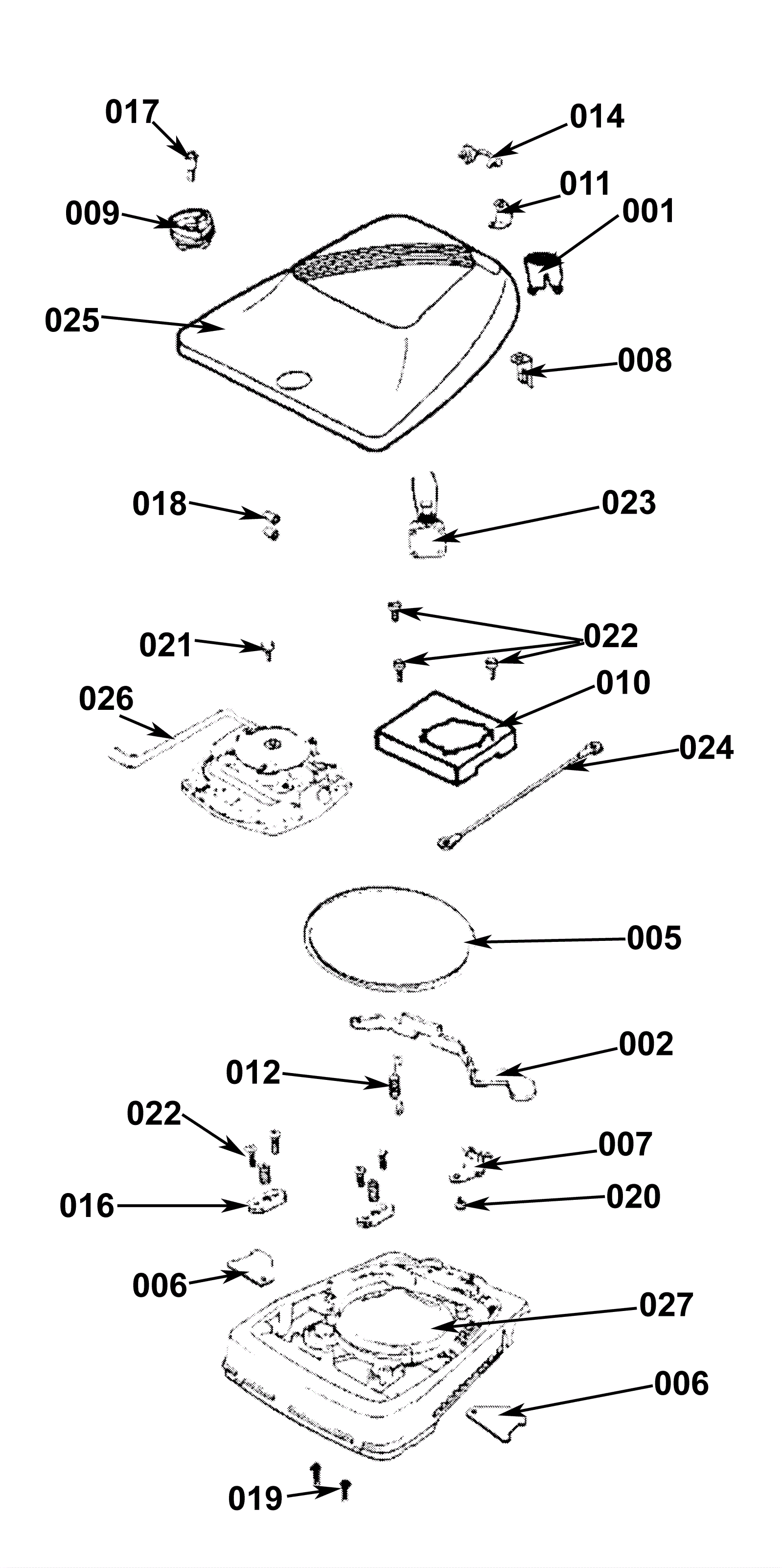

Base Assembly

#PartDescription ReqNotesAvailability
001 182-0183 Switch button
002 182-0023 Foot pedal
005 182-0010 Motor seal gasket
006 182-0014 Wheel cover
007 182-0119 Bag clip retainer bracket
008 182-0020 Switch clip
009 182-0004 Knob
010 182-0022 Air separator
011 182-0018 Bracket
012 182-0011 Foot pedal spring
014 182-0017 Strain relief bushing
016 182-0013 Screw and clamp assembly
017 182-0003 Shoulder screw
018 998-0062 Wire nut (blue)
019 182-0016 Screw
020 182-0034 Screw 10-14 x 1/2 pan head plastite
021 182-0008 Motor mounting screw
022 182-0012 Screw 10-14 x .88 phillips pan plastite
023 182-0019 Push switch
024 182-0129 Wire and terminal assembly
025 182-0181 Hood assembly
026 182-0009 120V vacuum motor assembly
027a 182-0182 Base assembly
027b 182-0115 Right side cam
027c 182-0116 Left side cam
027d 182-0029 Cam rivet
027e N/A Not available (Steel washer)
