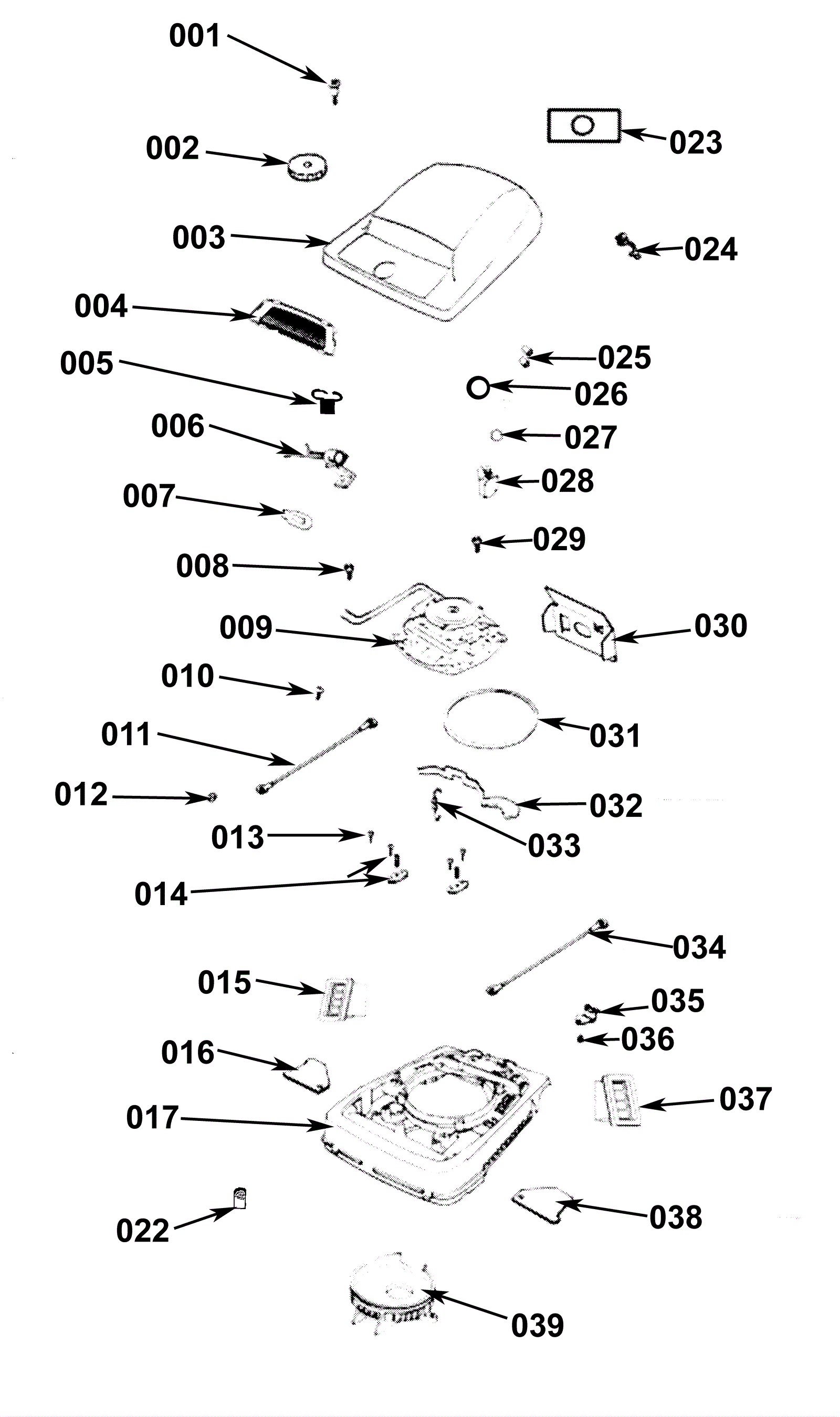

SANITAIRE SC888H Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 182-0003 Shoulder screw $14.01 ships same day
002 182-0117 Knob assembly (OBSOLETE) $4.61 usually ships 12-20 days
003 182-0151 Hood assembly $66.65 usually ships 12-20 days
004 182-0152 Lens and housing assembly $8.57 usually ships 12-20 days
005 182-0124 Hood spring $1.07 ships same day
006 182-0153 Headlight socket assembly $8.57 usually ships 12-20 days
007 992-9513 15watt double bulb $1.34 usually ships 31-57 days
008 182-0066 Rivet (OBSOLETE) $3.29 usually ships 12-20 days
009 182-0009 120V vacuum motor assembly $69.67 ships same day
010 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 ships same day
011 182-0129 Wire and terminal assembly $3.29 usually ships 12-20 days
012 999-0308 Nut 8-32 plain $0.99 ships same day
013 182-0008 Motor mounting screw $4.61 ships same day
014 182-0013 Screw and clamp assembly $3.45 ships same day
015 182-0133 Left side air inlet duct $6.44 ships same day
016 182-0014 Wheel cover $3.37 usually ships 12-20 days
017a 182-0184 Base assembly $52.37 usually ships 12-20 days
017b 182-0115 Right side cam $4.61 usually ships 12-20 days
017c 182-0116 Left side cam $2.72 ships same day
017d 182-0029 Cam rivet $1.05 ships same day
017e N/A Not available Call for price Not available (steel washer) usually ships 3-26 days
022 182-0125 P clamp $2.68 usually ships 12-20 days
023 182-0120 Sanitaire decal (OBSOLETE) $5.53 usually ships 12-20 days
024 182-0017 Strain relief bushing $5.71 usually ships 12-20 days
025 998-0062 Wire nut (blue) $0.99 ships same day
026 182-0123 Washer lock $4.61 ships same day
027 272-5225 Switch nut $3.43 usually ships 12-20 days
028 182-0118 Push switch $10.66 ships same day
029 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 ships same day
030 182-0154 Light shield (OBSOLETE) $6.60 usually ships 12-20 days
031 182-0010 Motor seal gasket $0.99 ships same day
032 182-0023 Foot pedal $4.71 usually ships 12-20 days
033 182-0011 Foot pedal spring $4.09 ships same day
034 182-0129 Wire and terminal assembly $3.29 usually ships 12-20 days
035 182-0119 Bag clip retainer bracket $1.85 ships same day
036 182-0034 Screw 10-14 x 1/2 pan head plastite $4.61 ships same day
037 182-0132 Right side air inlet duct $7.27 ships same day
038 182-0014 Wheel cover $3.37 usually ships 12-20 days
039 182-0113 Fan scroll cover $18.08 ships same day
