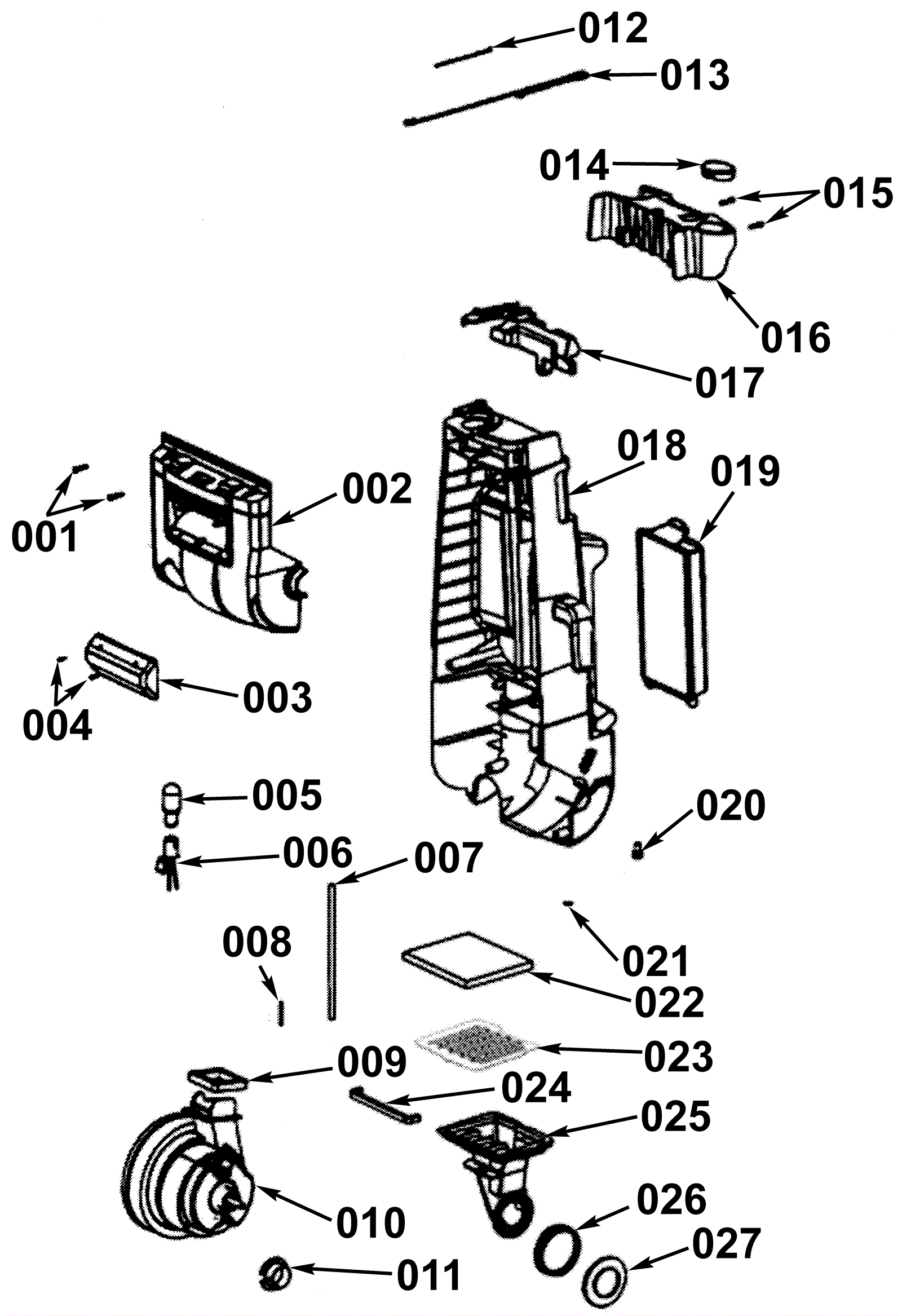

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
002 |
182-0597
|
Motor cover assembly - packaged |
|
|
|
003 |
182-0598
|
Motor cover lens (OBSOLETE) |
|
|
|
004 |
182-0599
|
Screw package |
|
|
|
005 |
992-9513
|
15watt double bulb |
|
|
|
006 |
182-0601
|
Headlamp socket and terminal |
|
|
|
007 |
182-0602
|
Tube |
|
|
|
008 |
182-0603
|
Tube adaptor |
|
|
|
009 |
182-0604
|
Motor exhaust gasket |
|
|
|
010 |
182-0605
|
Hepa motor assembly - packaged |
|
|
|
011 |
182-0606
|
Grommet |
|
|
|
012 |
997-2101
|
6 inch cable tie |
|
|
|
013 |
182-0608
|
Thermostat and terminal assembly |
|
|
|
014 |
182-0609
|
Tool caddy bushing |
|
|
|
015 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
016 |
182-0611
|
Tool caddy |
|
|
|
017 |
182-0612
|
Flange retainer |
|
|
|
018 |
182-0167
|
Rear housing |
|
|
|
019 |
182-0551
|
Washable HEPA filter |
|
|
|
020 |
998-0062
|
Wire nut (blue) |
|
|
|
021 |
182-0613
|
Push on nut |
|
|
|
022 |
182-0646
|
Filter (pkg of 4) |
|
|
|
023 |
182-0615
|
Motor filter |
|
|
|
024 |
182-0616
|
Air duct gasket |
|
|
|
025 |
182-0689
|
Air duct |
|
|
|
026 |
182-0664
|
Gasket |
|
|
|
027 |
182-0619
|
Motor intake flange |
|
|
|
