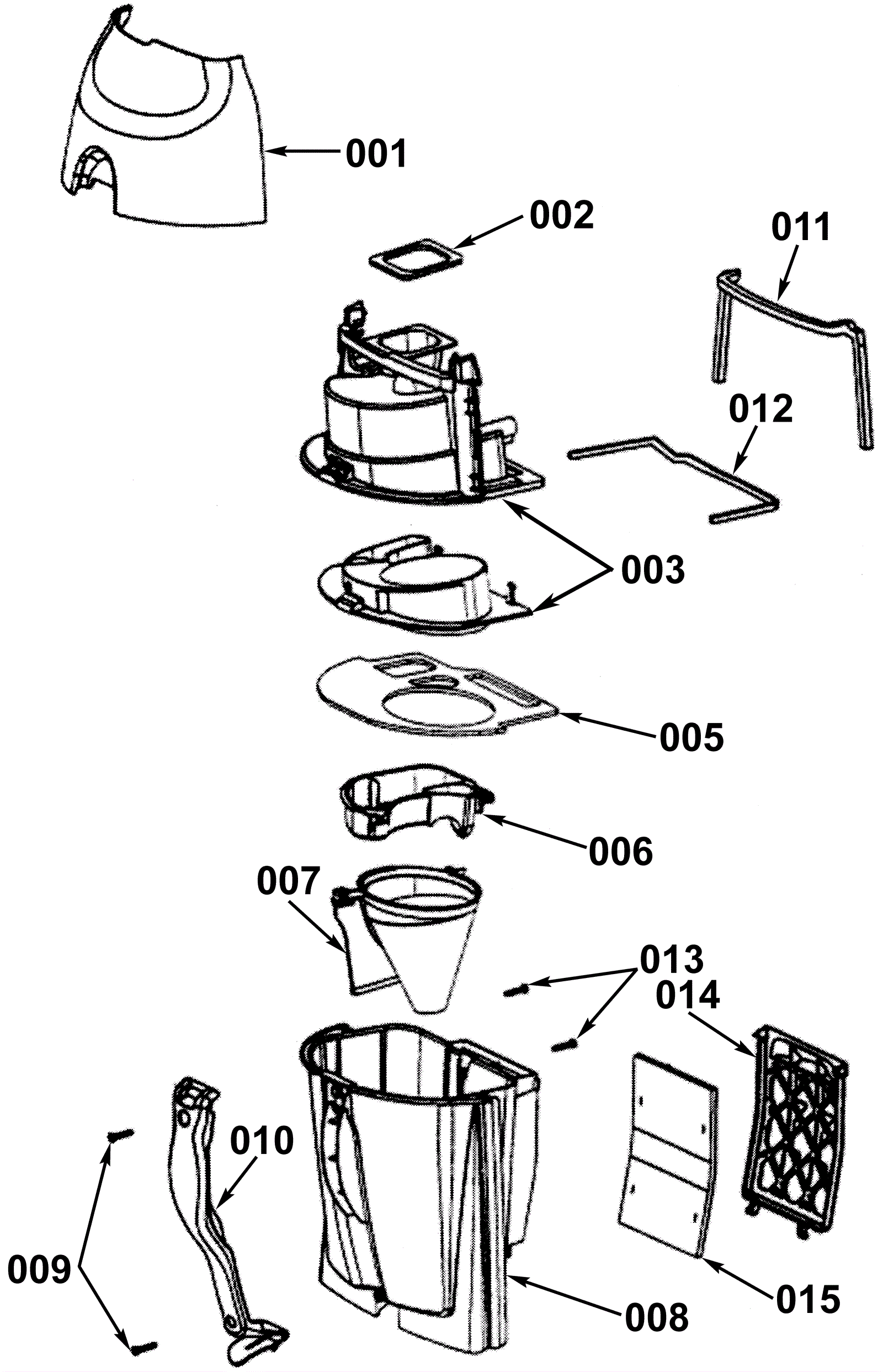

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0647
|
Front cover assembly packaged |
|
|
|
002 |
182-0642
|
Cyclone gasket sheet |
|
|
|
003 |
182-0648
|
Upper cyclone assembly packaged |
|
|
|
005 |
182-0642
|
Cyclone gasket sheet |
|
|
|
006 |
182-0639
|
Filter screen (OBSOLETE) |
|
|
|
007 |
182-0650
|
Funnel and gasket assembly |
|
|
|
008 |
182-0649
|
Cyclonic cassette assembly |
|
|
|
009 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
010 |
182-0641
|
Dirt cup grip (OBSOLETE) |
|
|
|
011 |
182-0645
|
Cyclone gasket |
|
|
|
012 |
182-0644
|
Air duct gasket |
|
|
|
013 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
014 |
182-0640
|
Filter frame (OBSOLETE) |
|
|
|
015 |
182-0646
|
Filter (pkg of 4) |
|
|
|
