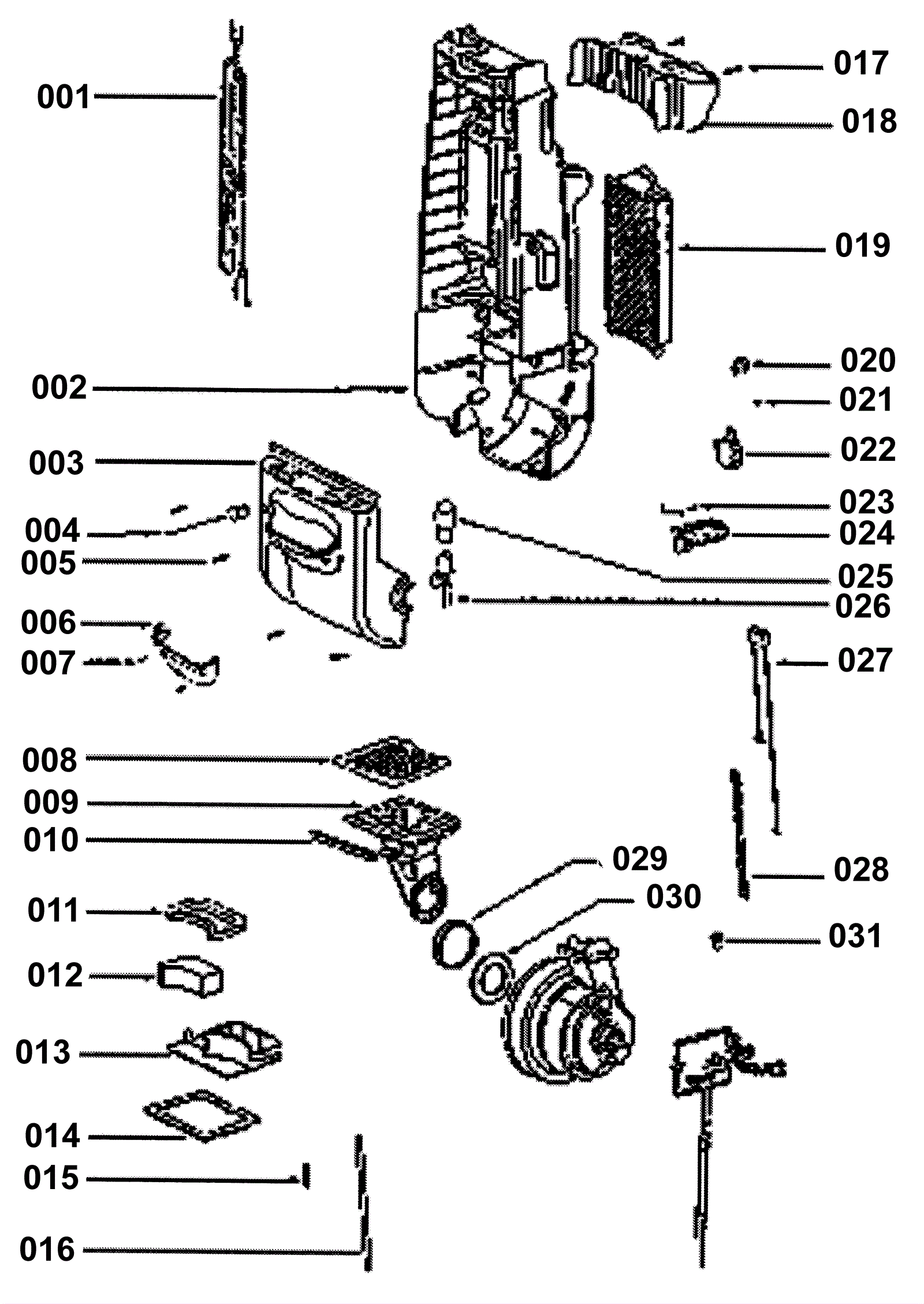

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0688
|
Motor cover lens |
|
|
|
002 |
182-0689
|
Air duct |
|
|
|
003 |
182-0611
|
Tool caddy |
|
|
|
004 |
182-0664
|
Gasket |
|
|
|
005 |
182-0690
|
Switch button |
|
|
|
006 |
182-0606
|
Grommet |
|
|
|
007 |
182-0691
|
Switch push button |
|
|
|
008 |
182-0615
|
Motor filter |
|
|
|
009 |
182-0601
|
Headlamp socket and terminal |
|
|
|
010 |
182-0692
|
Supply cord and terminal assembly |
|
|
|
011 |
182-0619
|
Motor intake flange |
|
|
|
012 |
182-0693
|
Thermostat and terminal assembly |
|
|
|
013 |
182-0694
|
Adapter - motor intake |
|
|
|
014 |
182-0695
|
Pre-motor filter |
|
|
|
015 |
182-0696
|
Motor intake adapter gasket |
|
|
|
016 |
992-9513
|
15watt double bulb |
|
|
|
017 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
018 |
182-0604
|
Motor exhaust gasket |
|
|
|
019 |
182-0616
|
Air duct gasket |
|
|
|
020 |
182-0603
|
Tube adaptor |
|
|
|
021 |
182-0602
|
Tube |
|
|
|
022 |
182-0599
|
Screw package |
|
|
|
023 |
182-0697
|
Tors spring packaged |
|
|
|
024 |
998-0062
|
Wire nut (blue) |
|
|
|
025 |
991-4044
|
Hepa filter package |
|
|
|
026 |
182-0613
|
Push on nut |
|
|
|
027 |
182-0698
|
Hepa motor and shroud assembly |
|
|
|
028 |
182-0699
|
Rear housing packaged |
|
|
|
029 |
182-0700
|
Motor cover assembly without lens |
|
|
|
030 |
182-0701
|
Retainging ring packaged |
|
|
|
031 |
182-0702
|
Motor intake gasket |
|
|
|
