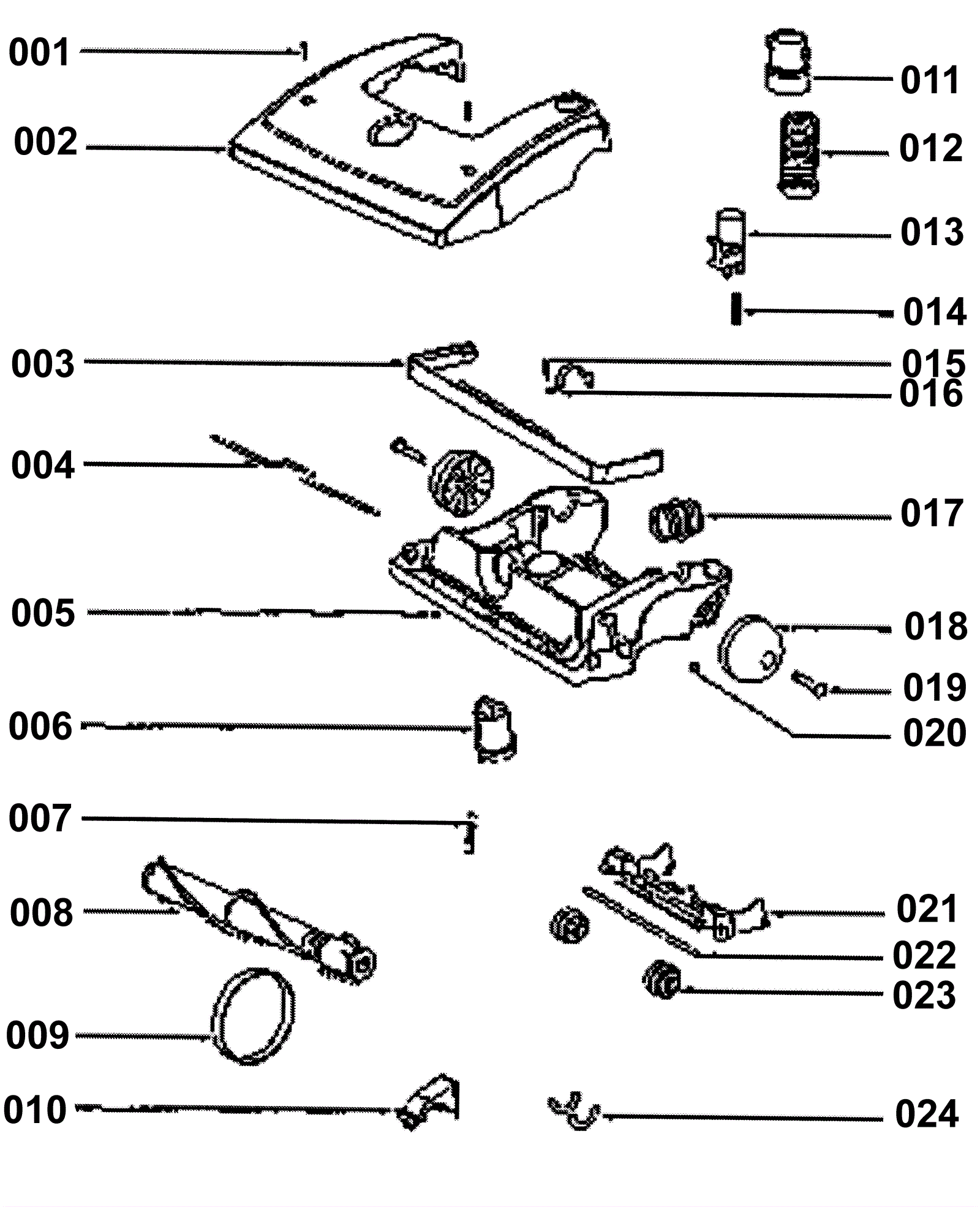

4600 SERIES 4686 Parts Assembly Part I

#PartDescriptionPriceReqNotesAvailability
001 182-0654 Wheel carriage $7.25 usually ships 1-5 days
002 182-0576 Furniture guard $6.60 usually ships 1-5 days
003 182-0655 Operator height adjustment $1.57 usually ships 1-5 days
004 182-0190 Handle release (OBSOLETE) $1.98 usually ships 12-20 days
005 182-0149 Hose cuff $5.53 usually ships 1-5 days
006 182-0683 Rear wheel $1.57 usually ships 1-5 days
007 182-0578 Base adaptor $5.53 usually ships 1-5 days
008 182-0112 Clamp $3.95 usually ships 1-5 days
009 182-0579 Compression hose (purch) (OBSOLETE) $3.16 usually ships 12-20 days
010 182-0580 Rear axle $5.50 usually ships 12-20 days
011 182-0581 Front wheel $4.15 usually ships 12-20 days
012 182-0583 Screw (OBSOLETE) $3.95 usually ships 12-20 days
013 182-0584 Belt cap and gasket package $7.25 usually ships 1-5 days
014 182-0585 Retaining ring $3.29 usually ships 12-20 days
015 182-0586 Spring package $7.81 usually ships 12-20 days
016 182-0587 Felt gasket $3.95 usually ships 1-5 days
017 182-0660 Wheel axle $1.57 usually ships 1-5 days
018 182-0684 Gasket $3.95 usually ships 1-5 days
019 182-0589 Compression spring $3.95 usually ships 1-5 days
020 182-0685 Base assembly (OBSOLETE) $40.91 usually ships 12-20 days
021 N/A Not available Call for price (Belt, pkg of 2) usually ships 3-26 days
022 182-0686 Brushroll assembly - cartoned $27.05 usually ships 1-5 days
023 182-0687 Hood assembly - packaged $11.77 usually ships 1-5 days
