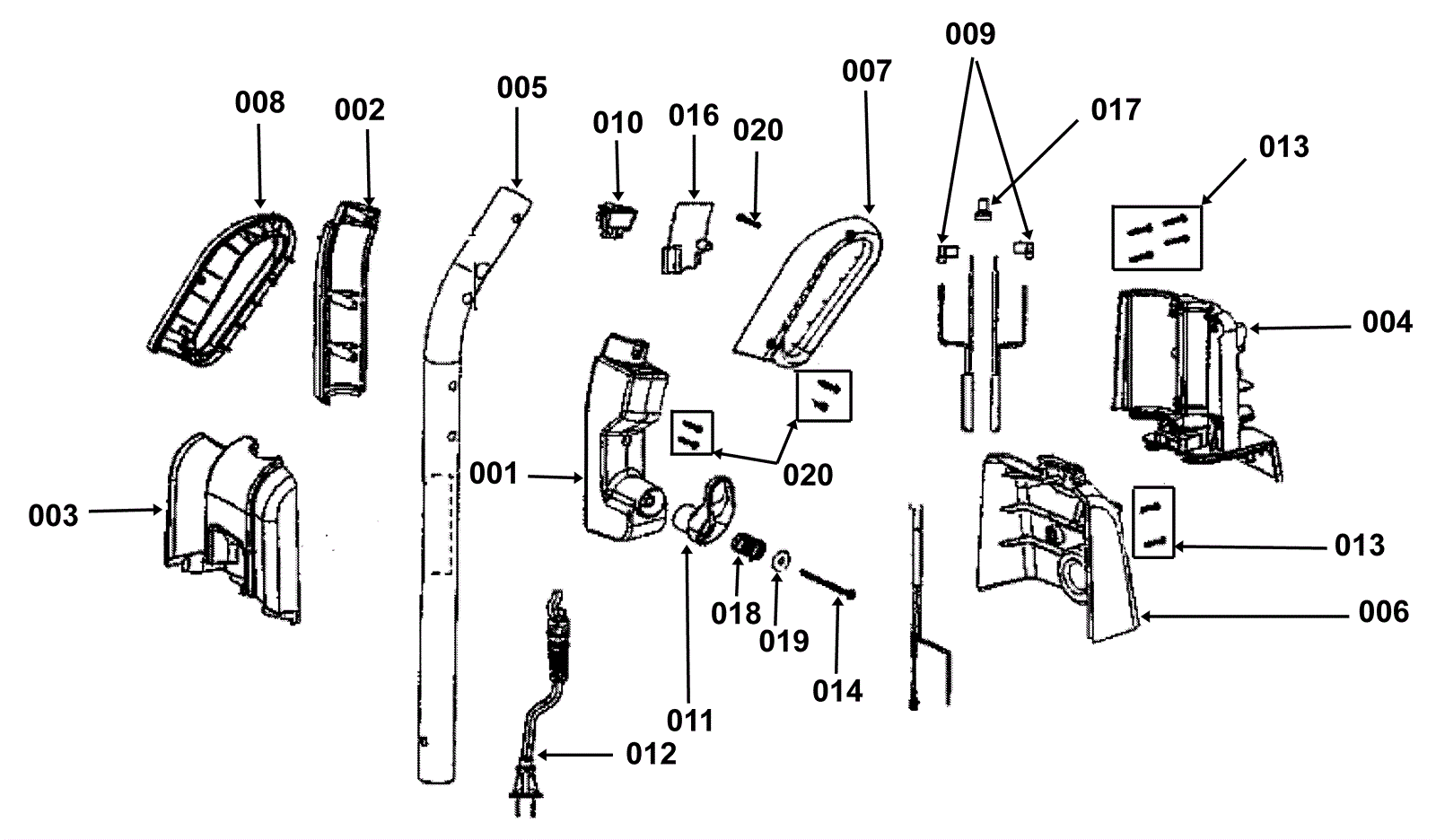

Handle Assembly

#PartDescription ReqNotesAvailability
001 182-0631 Left switch housing
002 182-0621 Right switch housing
003 182-0672 Front handle housing
004 182-0633 Rear handle housing
005 182-0623 Steel handle
006 182-0630 Handle cover
007 182-0629 Left handle grip
008 182-0620 Right handle grip
009 182-0628 Upper cord assembly
010 182-0622 Rocker switch
011 182-0634 Cord retainer
012 182-0627 Supply cord and terminal assembly
013 182-0583 Screw (OBSOLETE)
014 182-0638 Screw package
016 182-0625 Wiring shield
017 998-0062 Wire nut (blue)
018 182-0636 Spring
019 182-0637 Washer
020 182-0624 Screw package
N/S 182-0673 Strain relief bushing
