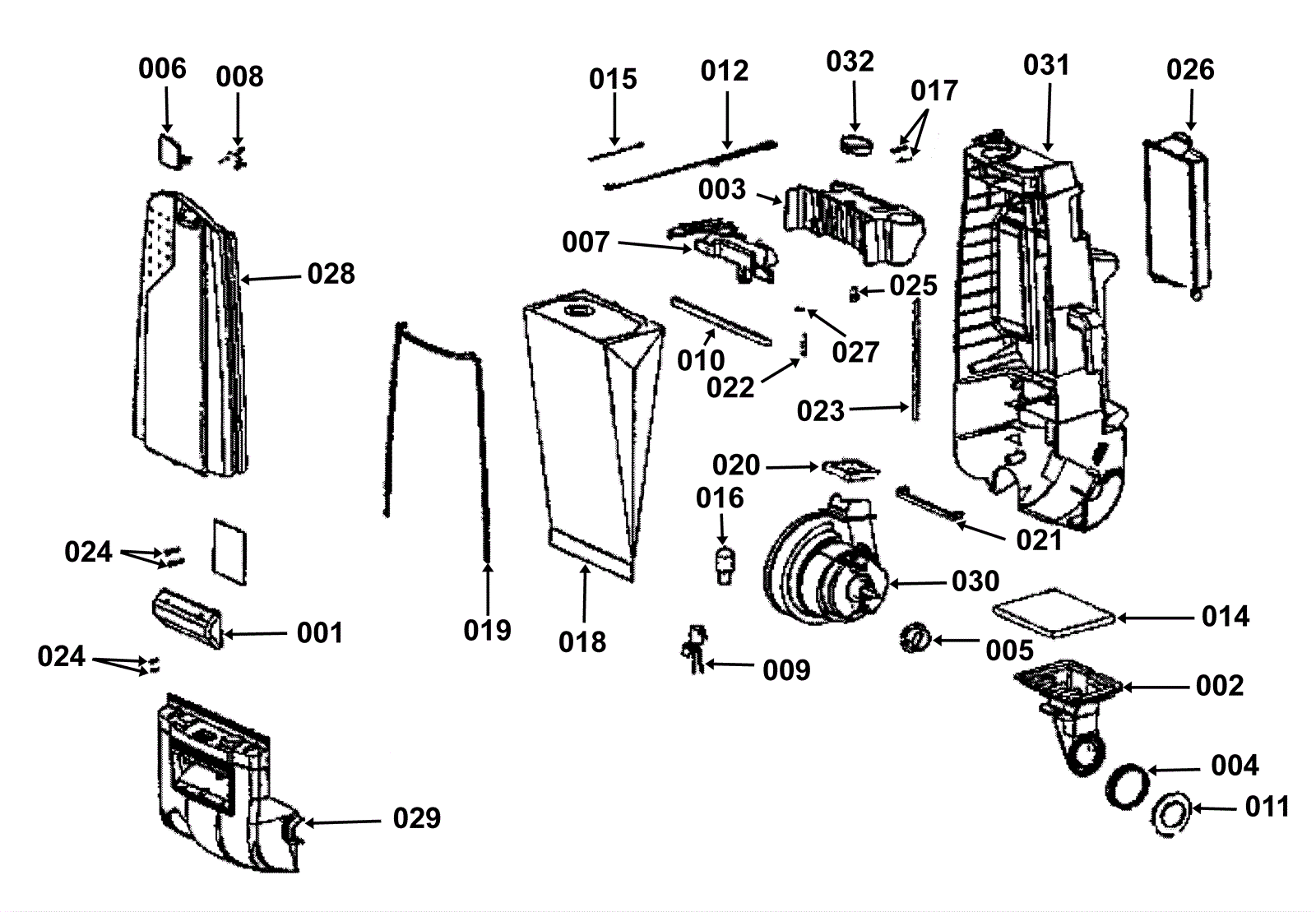

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0598
|
Motor cover lens (OBSOLETE) |
|
|
|
003 |
182-0663
|
Tool caddy |
|
|
|
004 |
182-0664
|
Gasket |
|
|
|
005 |
182-0606
|
Grommet |
|
|
|
006 |
182-0189
|
Bag cover latch |
|
|
|
007 |
182-0612
|
Flange retainer |
|
|
|
008 |
182-0665
|
Air deflector assembly |
|
|
|
009 |
182-0601
|
Headlamp socket and terminal |
|
|
|
010 |
182-0667
|
Gasket |
|
|
|
011 |
182-0619
|
Motor intake flange |
|
|
|
012 |
182-0608
|
Thermostat and terminal assembly |
|
|
|
014 |
182-0668
|
Motor pre-filter |
|
|
|
015 |
182-0067
|
Cable tie |
|
|
|
016 |
992-9513
|
15watt double bulb |
|
|
|
017 |
182-0583
|
Screw (OBSOLETE) |
|
|
|
018 |
182-0193
|
Paper bag (3pack) Type AA |
|
|
|
019 |
182-0670
|
Bag cover gasket |
|
|
|
020 |
182-0604
|
Motor exhaust gasket |
|
|
|
021 |
182-0616
|
Air duct gasket |
|
|
|
022 |
182-0603
|
Tube adaptor |
|
|
|
023 |
182-0602
|
Tube |
|
|
|
024 |
182-0599
|
Screw package |
|
|
|
025 |
998-0062
|
Wire nut (blue) |
|
|
|
026 |
991-4044
|
Hepa filter package |
|
|
|
027 |
182-0613
|
Push on nut |
|
|
|
028 |
182-0111
|
Bag cover assembly |
|
|
|
029 |
182-0597
|
Motor cover assembly - packaged |
|
|
|
030 |
182-0605
|
Hepa motor assembly - packaged |
|
|
|
031 |
182-0167
|
Rear housing |
|
|
|
032 |
182-0609
|
Tool caddy bushing |
|
|
|
N/S |
182-0198
|
Latch spring |
|
|
|
