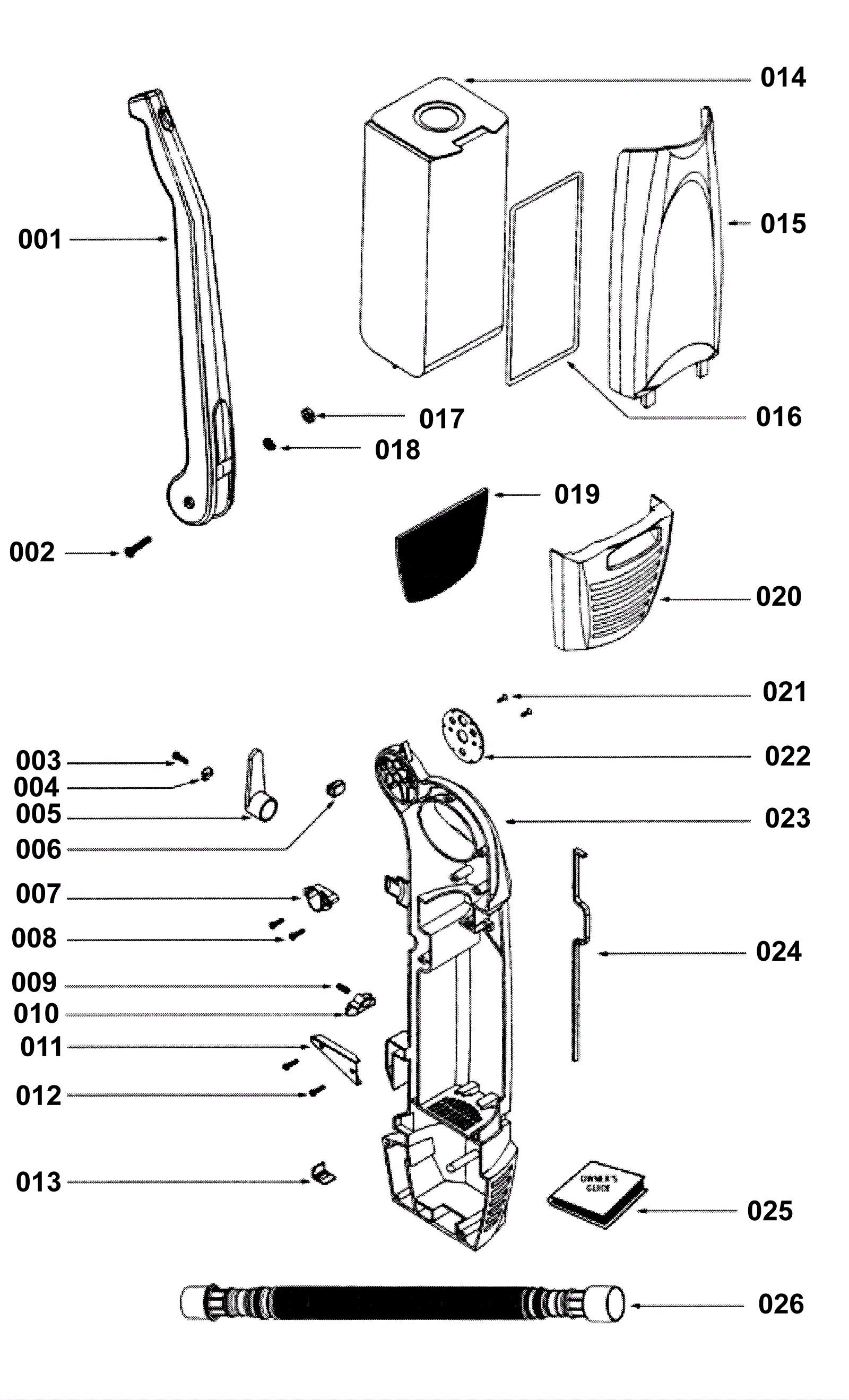

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0312
|
Upper pivoting handle assembly |
|
|
|
002 |
182-0297
|
Screw package |
|
|
|
003 |
182-0245
|
Screw package |
|
|
|
004 |
182-0324
|
Bracket - cord release |
|
|
|
005 |
182-0328
|
Hook - cord swivel |
|
|
|
006 |
182-0322
|
Stop - rubber |
|
|
|
007 |
182-0321
|
Neon light cover |
|
|
|
009 |
182-0320
|
Fix spring |
|
|
|
010 |
182-0319
|
Fix switch |
|
|
|
011 |
182-0318
|
Right side guard |
|
|
|
012 |
182-0326
|
Screw package |
|
|
|
013 |
182-0299
|
Fixed plate |
|
|
|
014a |
182-0294
|
Paper bag pkg style sl (pkg of 3) |
|
|
|
014b |
991-9066
|
Paper vacuum bags (pkg of 3) |
|
(NON-OEM) |
|
015 |
182-0329
|
Dust cabinet cover (OBSOLETE) |
|
|
|
016 |
N/A
|
Not available |
|
Gasket |
|
017 |
182-0310
|
Nut package |
|
|
|
018 |
182-0311
|
Spring washer package |
|
|
|
019 |
182-0293
|
Exhaust micron filter (OBSOLETE) |
|
|
|
020 |
182-0330
|
Cover - exhaust air |
|
|
|
021 |
182-0247
|
Screw package |
|
|
|
022 |
182-0255
|
Fix plate - handle release |
|
|
|
023 |
182-0331
|
Machine cover (RH) |
|
|
|
024 |
182-0317
|
Gasket ('l' pad) |
|
|
|
026 |
182-0325
|
Extension hose assembly |
|
|
|
N/S |
182-0313
|
Upper pivoting handle assembly |
|
|
|
N/S |
182-0334
|
Cord hook |
|
|
|
N/S |
182-0336
|
Right side guide |
|
|
|
N/S |
182-0335
|
Machine cover (RH) |
|
|
|
N/S |
182-0312
|
Upper pivoting handle assembly |
|
|
|
N/S |
182-0314
|
Dust cover replacement kit |
|
|
|
