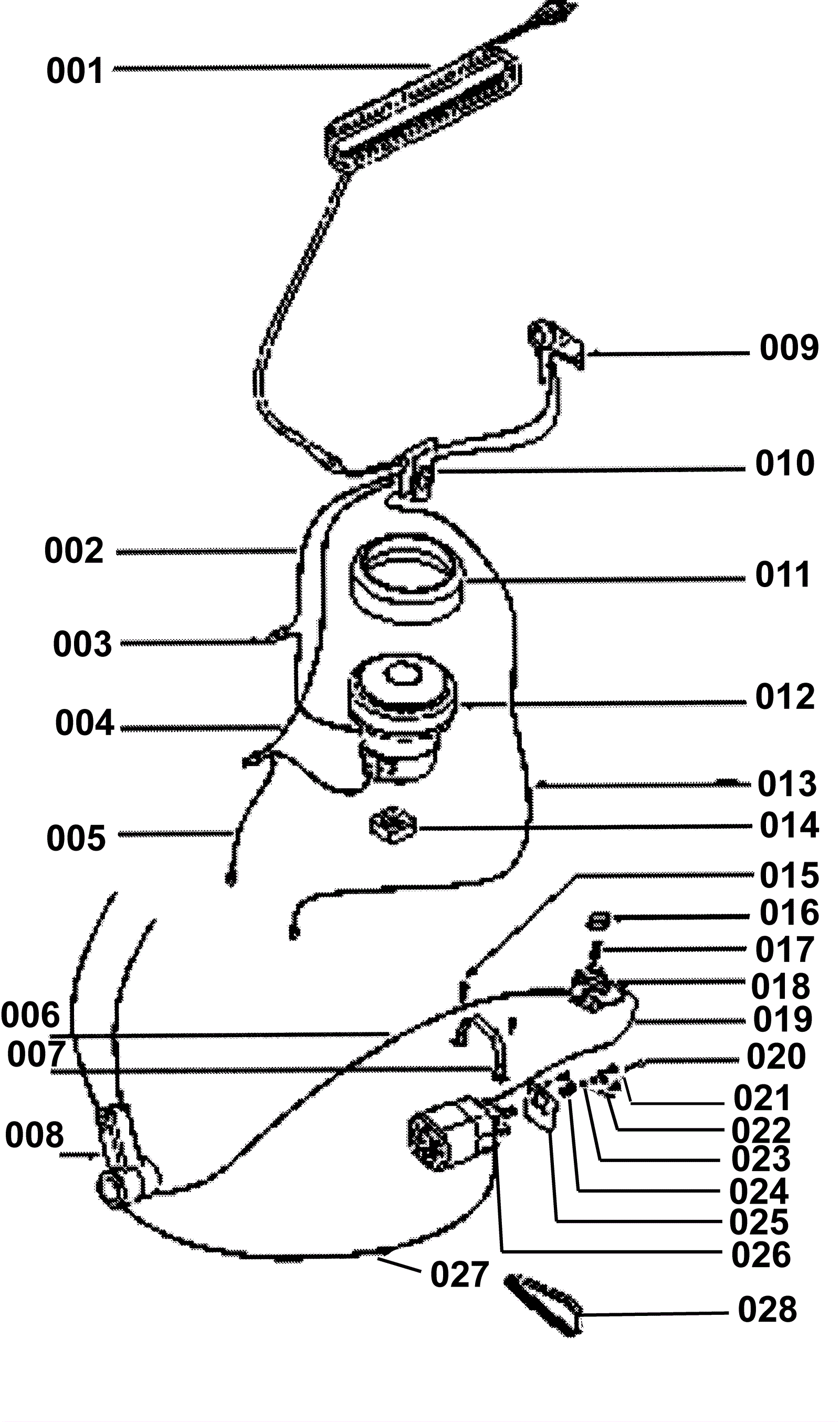

SANITAIRE SC785AT Parts 2 Assembly

#PartDescriptionPriceReqNotesAvailability
001 182-0265 Belt (OBSOLETE) $6.04 usually ships 6-16 days
003 182-0266 Screw package $2.15 usually ships 1-5 days
004 182-0267 16/3 power cord 30 foot and control board (OBSOLETE) $31.01 usually ships 6-16 days
005 182-0267 16/3 power cord 30 foot and control board (OBSOLETE) $31.01 usually ships 6-16 days
006 182-0269 Mount - front motor $2.37 usually ships 1-5 days
007 182-0270 Mount - rear motor $4.27 usually ships 1-5 days
008 182-0271 Wire - connecting $1.57 usually ships 1-5 days
009 182-0272 Wire - connecting $0.99 usually ships 1-5 days
010 182-0273 Wire - connecting $1.57 usually ships 1-5 days
011 182-0274 Wire - terminated $1.57 usually ships 1-5 days
012 182-0275 Wire - terminated $1.57 usually ships 1-5 days
013 182-0276 Wire - terminated $1.57 usually ships 1-5 days
014 182-0277 Wire - terminated $3.29 usually ships 6-16 days
015 182-0278 120V vacuum motor $66.65 usually ships 1-5 days
016 182-0279 Joint - nozzle pivot (OBSOLETE) $10.24 usually ships 16-36 days
017 182-0280 Clamp motor $3.95 usually ships 1-5 days
018 182-0281 120V brush gear motor assembly $33.39 usually ships 1-5 days
019 182-0282 Fixed plate $1.57 usually ships 1-5 days
020 182-0283 Push button $1.57 usually ships 1-5 days
021 182-0284 Spring - compression $3.95 usually ships 1-5 days
022 182-0285 Circuit breaker assembly $8.57 usually ships 1-5 days
023 182-0286 Gear $3.95 usually ships 1-5 days
024 182-0287 Electrical contact package $0.99 usually ships 1-5 days
025 182-0288 Nut package $5.53 usually ships 1-5 days
026 182-0289 Spring washer package $5.53 usually ships 1-5 days
027 182-0290 Spring washer package $1.57 usually ships 1-5 days
028a 182-0291 Screw package $2.37 usually ships 1-5 days
028b 182-0245 Screw package $5.53 usually ships 1-5 days
