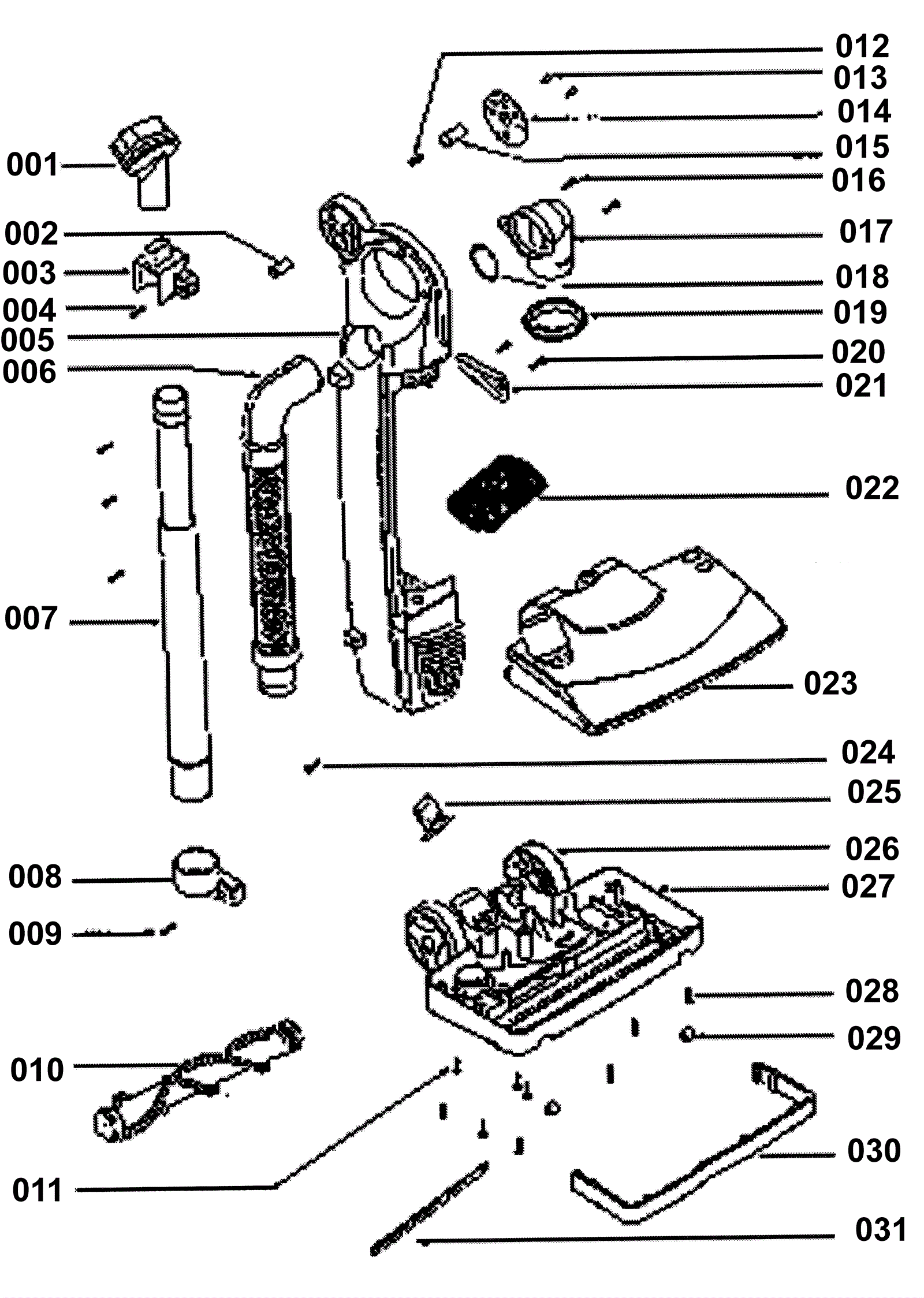

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
182-0236
|
Motor filter |
|
|
|
002 |
182-0237
|
Dusting brush |
|
|
|
003 |
182-0238
|
Nesting wand set |
|
|
|
004 |
182-0239
|
Brush roll assembly (OBSOLETE) |
|
|
|
005 |
182-0240
|
Cleaner hose assembly |
|
|
|
006 |
182-0241
|
Sleeve - bushing |
|
|
|
007 |
182-0242
|
Wand support (upper) |
|
|
|
008 |
182-0243
|
Wand support (lower) |
|
|
|
009 |
182-0244
|
Front wheel assembly (OBSOLETE) |
|
|
|
010 |
182-0245
|
Screw package |
|
|
|
011 |
182-0246
|
Screw package |
|
|
|
012 |
182-0247
|
Screw package |
|
|
|
013 |
182-0248
|
Furniture guard |
|
|
|
014 |
182-0249
|
Left side guard |
|
|
|
015 |
182-0250
|
Seal ring |
|
|
|
016 |
182-0251
|
Base assembly - packaged |
|
|
|
017 |
182-0252
|
Seal ring |
|
|
|
018 |
182-0253
|
Bend pipe |
|
|
|
019 |
182-0254
|
Button - metal locking |
|
|
|
020 |
182-0255
|
Fix plate - handle release |
|
|
|
021 |
182-0256
|
Hood assembly (OBSOLETE) |
|
|
|
022 |
182-0257
|
Spring package |
|
|
|
023 |
182-0258
|
Dust cover replacement kit |
|
|
|
024 |
182-0259
|
Rear wheel assembly |
|
|
|
025 |
182-0260
|
Foot pedal assembly (OBSOLETE) |
|
|
|
026 |
182-0261
|
Squeegee blade 20 inch |
|
|
|
027 |
182-0262
|
Squeegee cover |
|
|
|
028 |
182-0263
|
Torque spring |
|
|
|
029 |
182-0264
|
Torque spring (RH) - pkgd |
|
|
|
