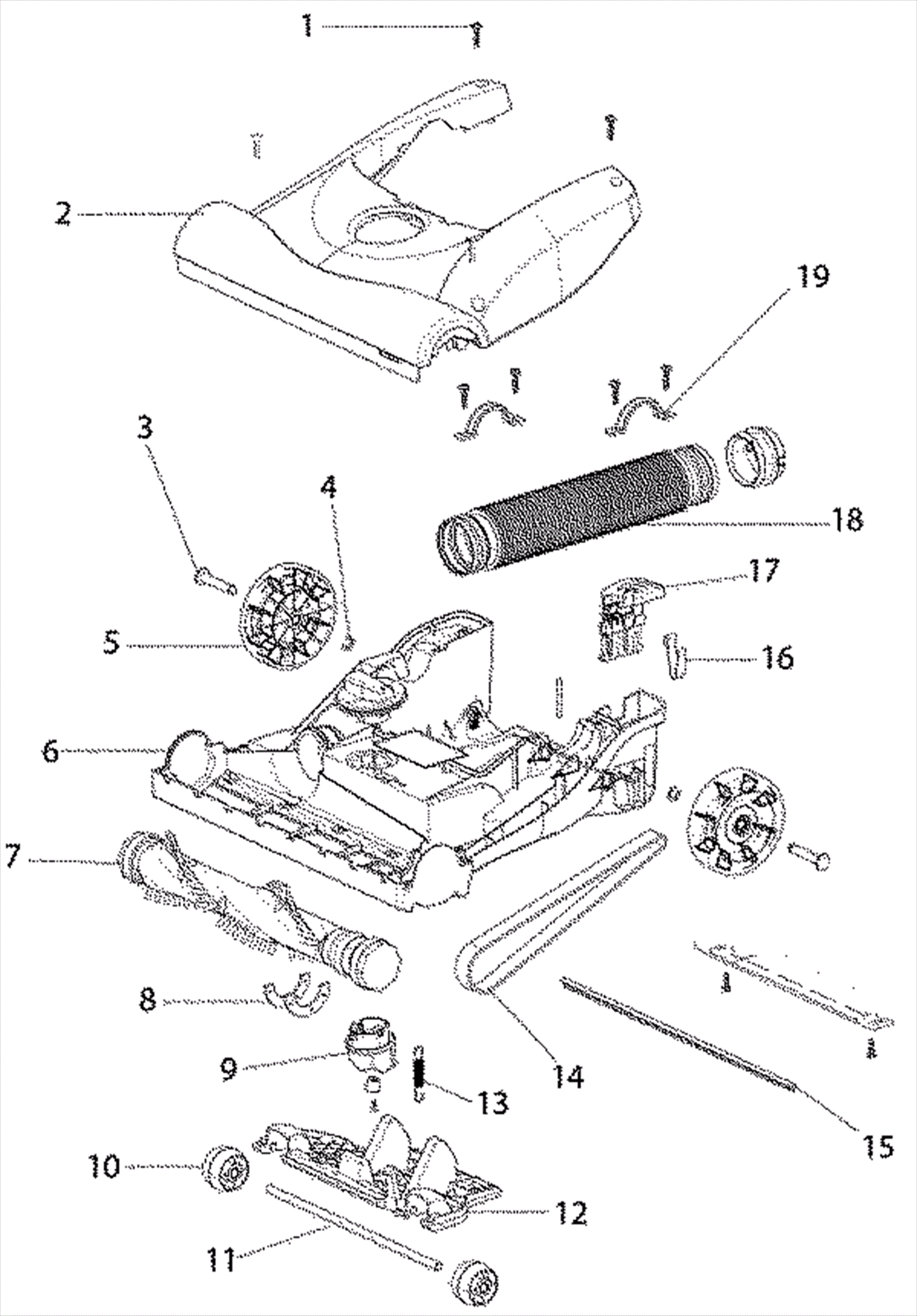

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-2298
|
Screw (pkg of 8) |
1 |
|
|
2 |
182-1178
|
Hood assembly |
1 |
Packaged Hood Assembly |
|
3 |
182-1179
|
Rear wheel axle |
1 |
Rear Wheel Axle |
|
4 |
182-1180
|
Retaining ring package |
1 |
Packaged Retaining Ring |
|
5 |
182-1181
|
Rear wheel |
1 |
Rear Wheel |
|
6 |
182-1182
|
Base |
1 |
Base |
|
7 |
182-0376
|
Brush roll assembly (OBSOLETE) |
1 |
|
|
8 |
182-1183
|
Felt |
1 |
Felt |
|
9 |
182-1184
|
Height actuator |
1 |
Height Actuator |
|
10 |
182-1185
|
Front wheel with overmo |
1 |
|
|
11 |
182-1186
|
Front wheel axle |
1 |
|
|
12 |
182-1187
|
Wheel carriage |
1 |
|
|
13 |
182-1188
|
Spring package |
1 |
|
|
14 |
182-0595
|
Belt, extended life 2-pack (U-style) (84464) |
1 |
|
|
15 |
182-1189
|
Wiper blade |
1 |
|
|
16 |
182-1190
|
Handle release spring |
1 |
|
|
17 |
182-1191
|
Handle release pedal |
1 |
|
|
18 |
182-1192
|
Hose base |
1 |
|
|
19 |
182-1193
|
Motor cClamp |
1 |
|
|
