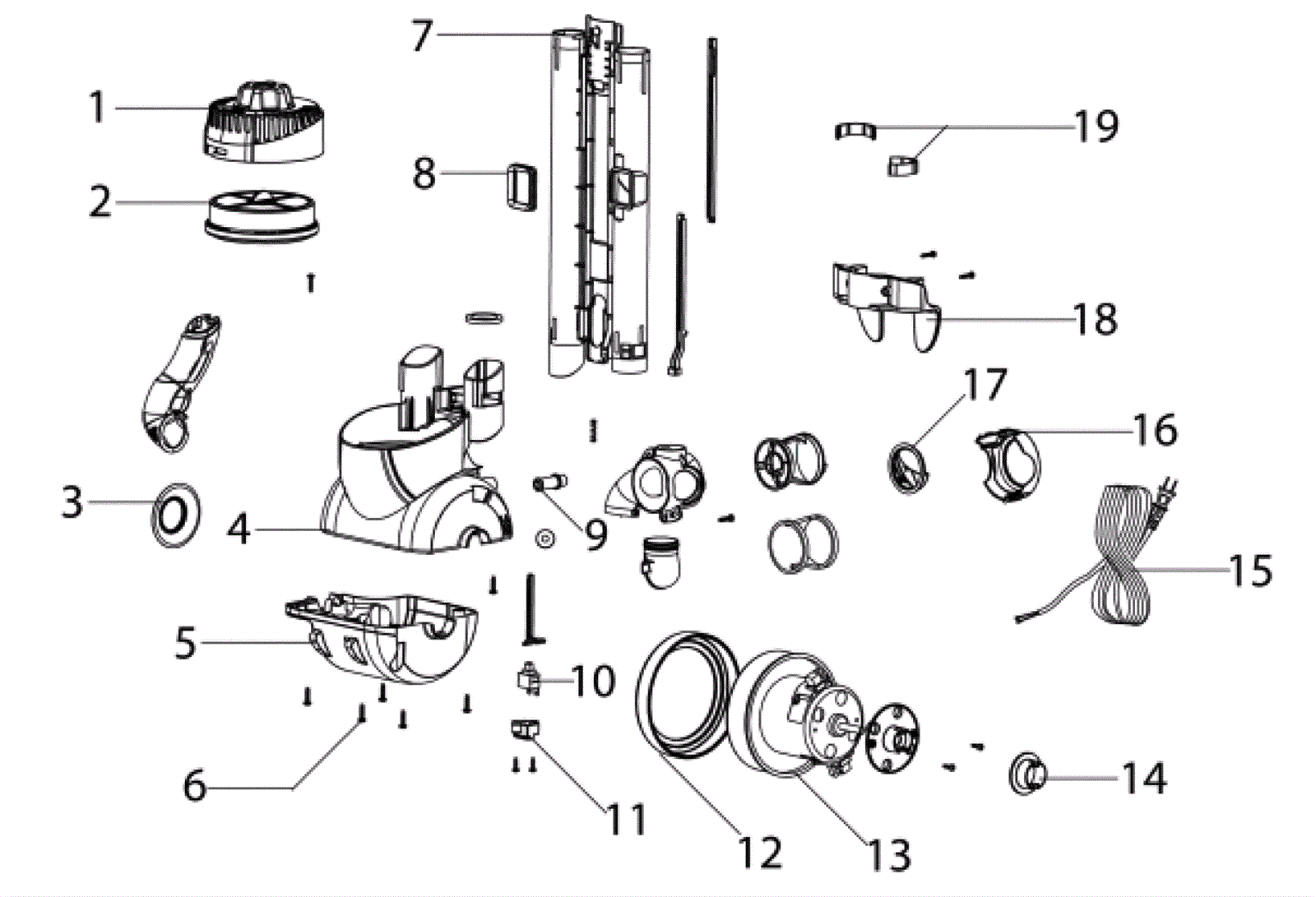

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-1152
|
Hepa cover and graphics assembly |
1 |
|
|
2 |
182-0377
|
Filter assembly |
1 |
|
|
3 |
182-1153
|
Motor intake seal |
1 |
|
|
5 |
182-1155
|
Lower motor cover and graphics assembly |
1 |
|
|
6 |
182-2298
|
Screw (pkg of 8) |
4 |
|
|
7 |
182-1156
|
Backbone assembly |
1 |
|
|
8 |
182-1157
|
Cup inlet gasket |
1 |
|
|
9 |
182-1158
|
Strain relief |
1 |
|
|
10 |
182-1060
|
Switch assembly (OBSOLETE) |
1 |
|
|
11 |
182-1159
|
Switch cover |
1 |
|
|
12 |
182-1160
|
Motor can gasket |
1 |
|
|
13 |
182-1161
|
Motor assembly |
1 |
|
|
14 |
182-1162
|
Motor bushing |
1 |
|
|
15 |
182-1163
|
Supply cord and terminal assembly |
1 |
|
|
16 |
182-1164
|
Valve body cover graphics |
1 |
|
|
17 |
182-1165
|
Valve tumbler assembly |
1 |
|
|
18 |
182-1166
|
Lower cord wrap |
1 |
|
|
19 |
182-1167
|
Backbone clip |
1 |
|
|
