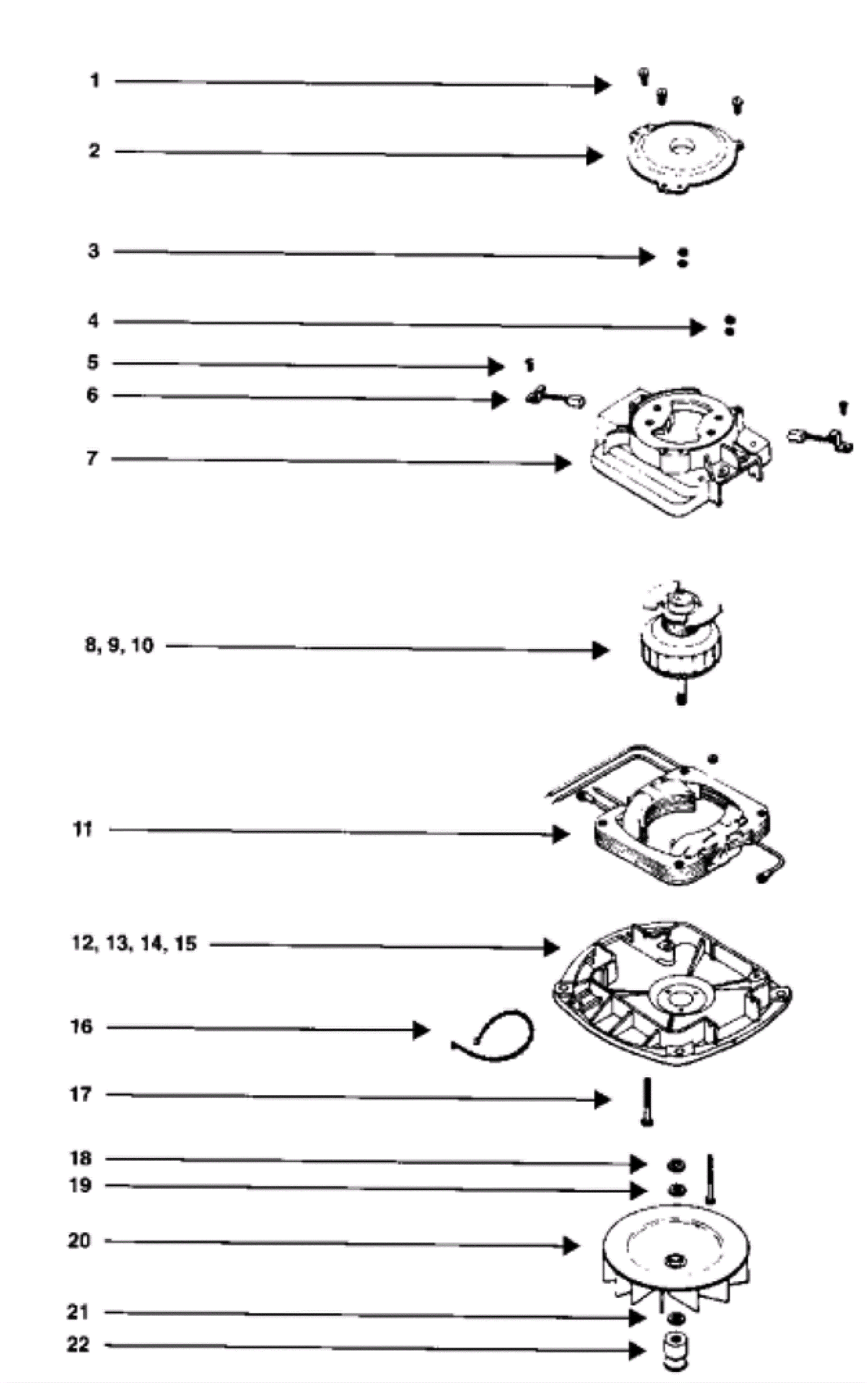

Motor Assembly

#PartDescription ReqNotesAvailability
1 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 1
2 182-0054 Retainer assembly 1
3 999-0092 Washer #8 internal star lock zinc plated 1
4 999-0308 Nut 8-32 plain 1
5 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated 1
6 991-5101 Carbon brush (sold individually) 1
7 N/A Not available 1
8 182-0009 120V vacuum motor assembly 1
9 182-0065 Bearing 1
10 182-0061 Fan 1
11 182-0009 120V vacuum motor assembly 1
13 182-0064 Bearing and retainer (OBSOLETE) 1
14 182-0065 Bearing 1
15 182-0066 Rivet (OBSOLETE) 1
16 997-2101 6 inch cable tie 1
17 182-0068 Orlo thread screw 1
18 182-0069 Washer 1
19 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) 1
20 182-0071 Fan 1
21 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) 1
22 182-0072 Motor pulley 1
