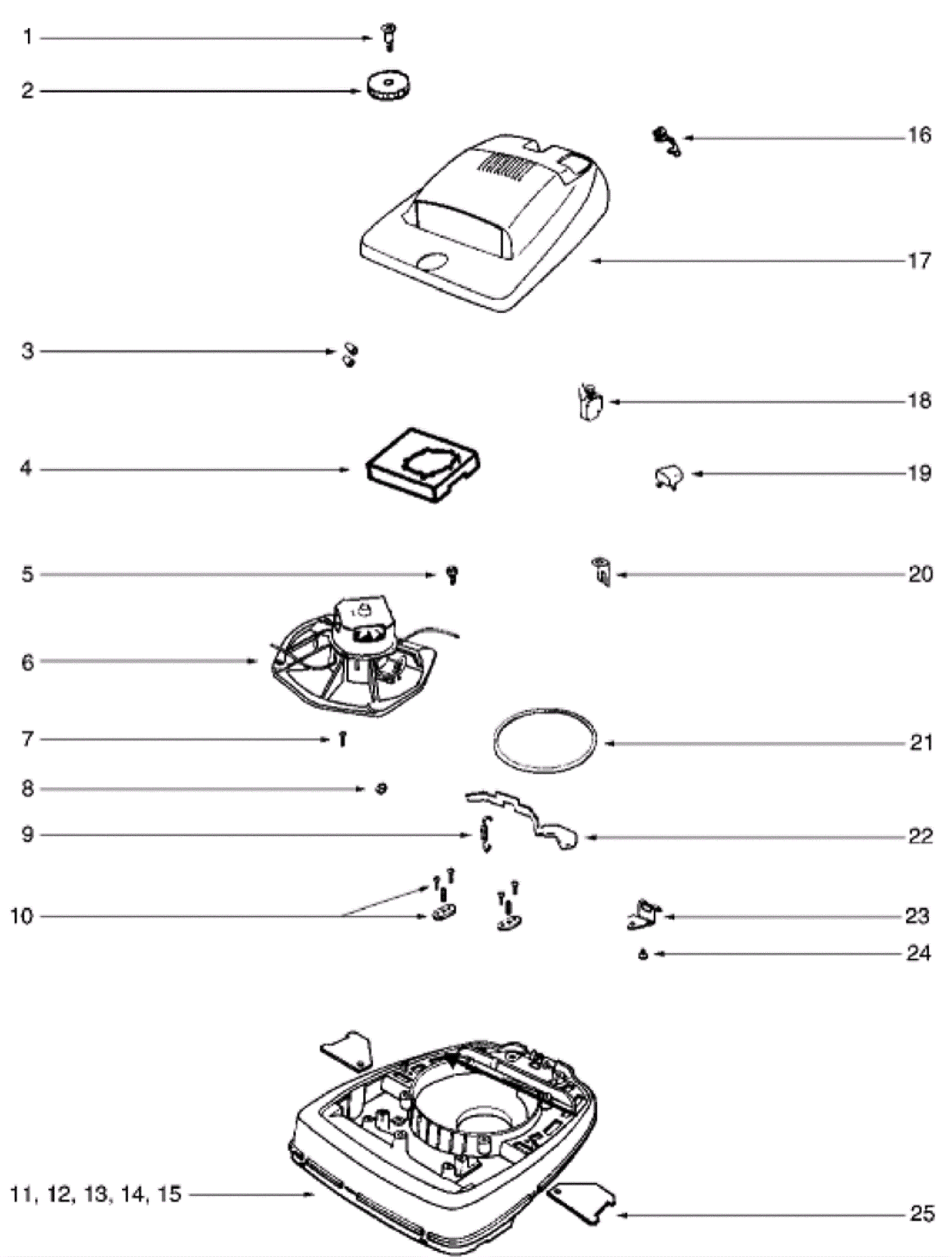

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-0003
|
Shoulder screw |
1 |
|
|
2 |
182-0004
|
Knob |
1 |
|
|
3 |
998-0062
|
Wire nut (blue) |
1 |
|
|
4 |
182-0022
|
Air separator |
1 |
|
|
5 |
182-0012
|
Screw 10-14 x .88 phillips pan plastite |
1 |
|
|
6 |
182-0009
|
120V vacuum motor assembly |
1 |
|
|
7 |
182-0016
|
Screw |
1 |
|
|
8 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
9 |
182-0011
|
Foot pedal spring |
1 |
|
|
10 |
182-0013
|
Screw and clamp assembly |
1 |
|
|
11 |
182-8243
|
12 inch base assembly |
1 |
|
|
12 |
182-0115
|
Right side cam |
1 |
|
|
13 |
182-0116
|
Left side cam |
1 |
|
|
14 |
182-0029
|
Cam rivet |
1 |
|
|
15 |
N/A
|
Not available |
1 |
|
|
16 |
182-0017
|
Strain relief bushing |
1 |
|
|
17 |
182-0181
|
Hood assembly |
1 |
|
|
18 |
182-0019
|
Push switch |
1 |
|
|
19 |
182-0183
|
Switch button |
1 |
|
|
20 |
182-0020
|
Switch clip |
1 |
|
|
21 |
182-0010
|
Motor seal gasket |
1 |
|
|
22 |
182-0023
|
Foot pedal |
1 |
|
|
23 |
182-0119
|
Bag clip retainer bracket |
1 |
|
|
24 |
182-0034
|
Screw 10-14 x 1/2 pan head plastite |
1 |
|
|
25 |
182-0014
|
Wheel cover |
2 |
|
|
