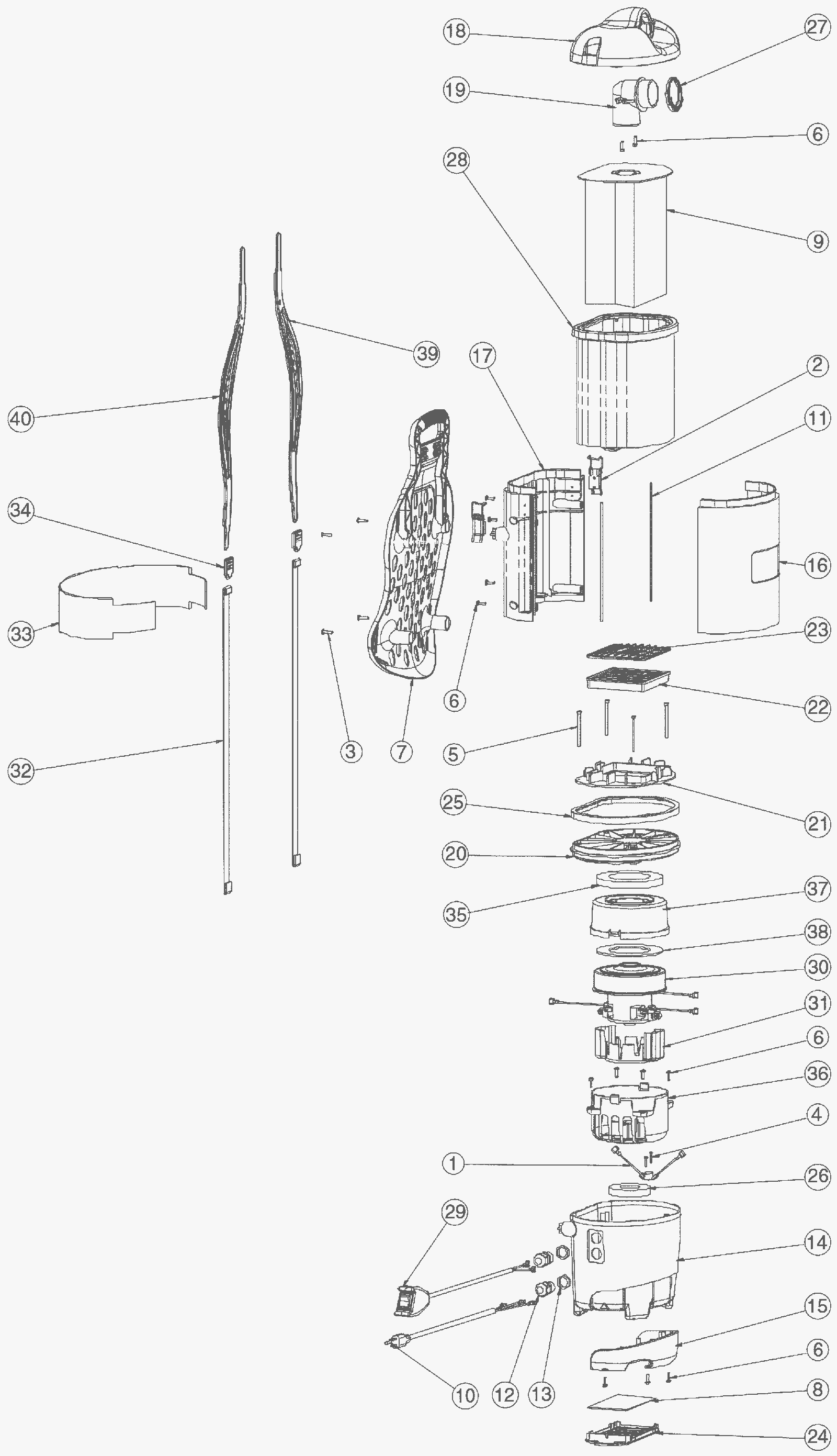

Entire Assembly

#PartDescription ReqNotesAvailability
1 182-8365 Thermal protection switch 1
2 182-8366 Latch 1
3 182-8367 Screw #10 type B phillips pan head 4
4 999-1602 Screw #6 x 3/8 pan head stainless steel 2
5 182-8368 Screw #8-16 x 2 1/2 phillips pan head 4
6 182-8369 Screw #8 x 5/8 HI-LO phillips pan head 13
7 190-0686 Backplate (no straps) 1
8 190-0462 Exhaust filter 1
9 991-9042 6 quart paper vacuum bags (pkg of 10) 1
10 182-8371 Power harness 1
11 182-8372 Bag compartment seal 2
12 182-8373 Heyco fitting 2
13 182-8374 Heyco fitting nut 2
14 182-8375 Motor compartment 1
15 182-8376 Bumper 1
16 182-8377 Front plate 1
17 182-8378 Back plate 1
18 182-8379 Cover 1
19 182-8380 Hose inlet 1
20 182-8381 Motor cover 1
21 182-8382 Secondary filter plate 1
22 190-0461 HEPA filter 1
23 182-8383 Secondary filter cap 1
24 182-8384 Post filter frame 1
25 182-8385 Body seal 1
26 182-8386 Bottom motor mount 1
27 182-8387 Inlet seal 1
28 182-8388 Shake out cloth bag 1
29 182-8389 Switch harness 1
30 182-2078 Motor (OBSOLETE) 1
31 182-8390 Tek motor shroud 1
32 182-8161 Shoulder harness strap 2
34 190-9931 Padded straps w/ back rest 2
35 182-8391 Top motor mount 1
36 182-8392 Bottom motor shroud 1
37 182-8393 Top motor shroud 1
38 182-8394 Motor seal 1
39 182-8164 Right shoulder strap 1
40 182-8166 Left shoulder strap 1
N/S 182-8395 Crevice tool 1
N/S 182-8396 Upholstery tool 1
N/S 182-8397 Dust brush tool body 1
N/S 182-8398 Dust brush bristles 1
N/S 182-8399 Carpet tool body 1
N/S 182-8400 Carpet tool bumper 1
N/S 182-8401 Bare floor tool body 1
N/S 182-8402 Bare floor tool brush 1
N/S 182-8403 Hose 1
N/S 239-0698 Wand 1
N/S 182-8405 16-3 50 foot extension cord 1 (OEM)
N/S 991-5002 16/3 extension cord 50 foot (orange) 1 (NON-OEM)
