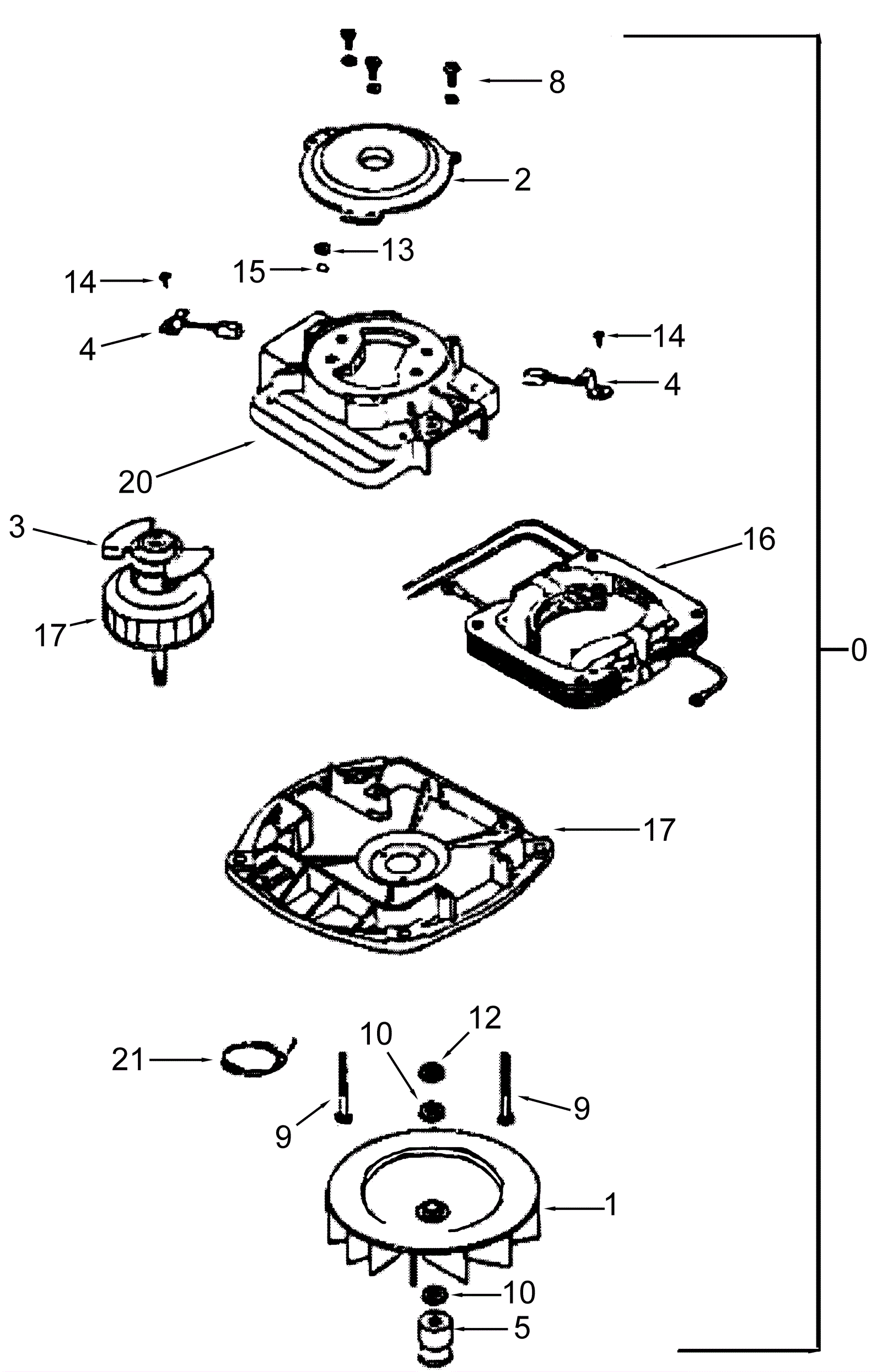

C2032 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
0 182-0009 120V vacuum motor assembly $63.34 1 (includes 1 thru 21, bearings, retainer, and rivet) ships same day
1a 182-0071 Fan $8.15 1 usually ships 6-16 days
1b 272-9477 Pulley and fan kit (green) $11.40 1 (lifetime warranty) ships same day
2 182-0054 Retainer assembly $4.19 1 usually ships 1-5 days
3 182-0061 Fan $2.10 1 ships same day
4a 991-5101 Carbon brush (sold individually) $4.79 2 (OEM) usually ships 8-20 days
4b 991-5101 Carbon brush (sold individually) $4.79 2 (NON-OEM) usually ships 8-20 days
5 182-0072 Motor pulley (OBSOLETE) $5.48 1 usually ships 6-16 days
8 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc $0.99 3 ships same day
9 182-0068 Orlo thread screw $2.27 2 usually ships 6-16 days
10 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) $3.72 2 ships same day
12 182-0069 Washer $1.00 1 ships same day
13 999-0308 Nut 8-32 plain $0.99 1 ships same day
14 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 2 ships same day
15 999-0092 Washer #8 internal star lock zinc plated $0.99 1 ships same day
16 182-0009 120V vacuum motor assembly $63.34 1 ships same day
17 182-0009 120V vacuum motor assembly $63.34 1 (motor housing, only available in assembly) ships same day
20 N/A Not available Call for price 1 Motor cover usually ships 3-26 days
21 997-2101 6 inch cable tie $0.99 1 ships same day
N/S 182-0064 Bearing and retainer (OBSOLETE) $3.59 1 usually ships 6-16 days
N/S 182-0065 Bearing $10.49 1 usually ships 6-16 days
N/S 182-0066 Rivet (OBSOLETE) $2.99 1 usually ships 6-16 days
