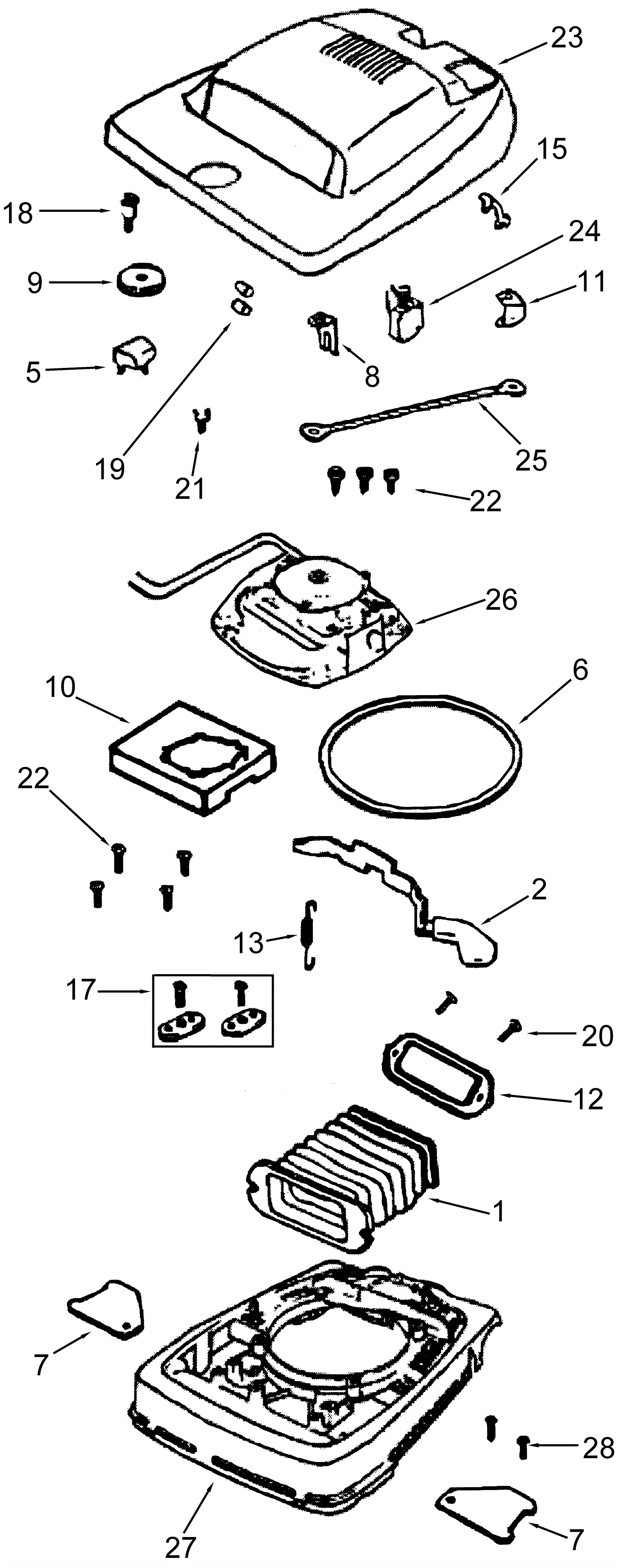

C2032 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 182-0026 Bellows $21.67 1 ships same day
2 182-0023 Foot pedal $4.28 1 usually ships 6-16 days
5 182-0006 Button switch $2.99 1 usually ships 1-5 days
6 182-0010 Motor seal gasket $0.90 1 ships same day
7 182-0014 Wheel cover $3.06 2 usually ships 6-16 days
8 182-0020 Switch clip $2.56 1 ships same day
9 182-0004 Knob $4.19 1 usually ships 6-16 days
10 182-0022 Air separator $4.19 1 usually ships 6-16 days
11 182-0018 Bracket $2.99 1 usually ships 1-5 days
12 182-0025 Bellows clamp $7.10 1 ships same day
13 182-0011 Foot pedal spring $3.72 1 ships same day
15 182-0017 Strain relief bushing $2.08 1 ships same day
17 182-0013 Screw and clamp assembly $3.14 2 usually ships 6-16 days
18 182-0003 Shoulder screw $12.74 1 ships same day
19 998-0062 Wire nut (blue) $0.99 2 ships same day
20 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
21 182-0008 Motor mounting screw $4.19 1 usually ships 6-16 days
22 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 7 ships same day
23 182-1000 Hood assembly $25.19 1 usually ships 1-5 days
24 182-0019 Push switch $8.25 1 ships same day
25 182-0129 Wire and terminal assembly $2.99 1 usually ships 6-16 days
26 182-0009 120V vacuum motor assembly $63.34 1 ships same day
27 182-0015 Base assembly $30.99 1 usually ships 6-16 days
28 182-1002 Screw $2.16 2 usually ships 1-5 days
N/S 182-0115 Right side cam $4.19 1 usually ships 6-16 days
N/S 182-0116 Left side cam $2.72 1 ships same day
N/S 182-0029 Cam rivet $1.05 1 ships same day
