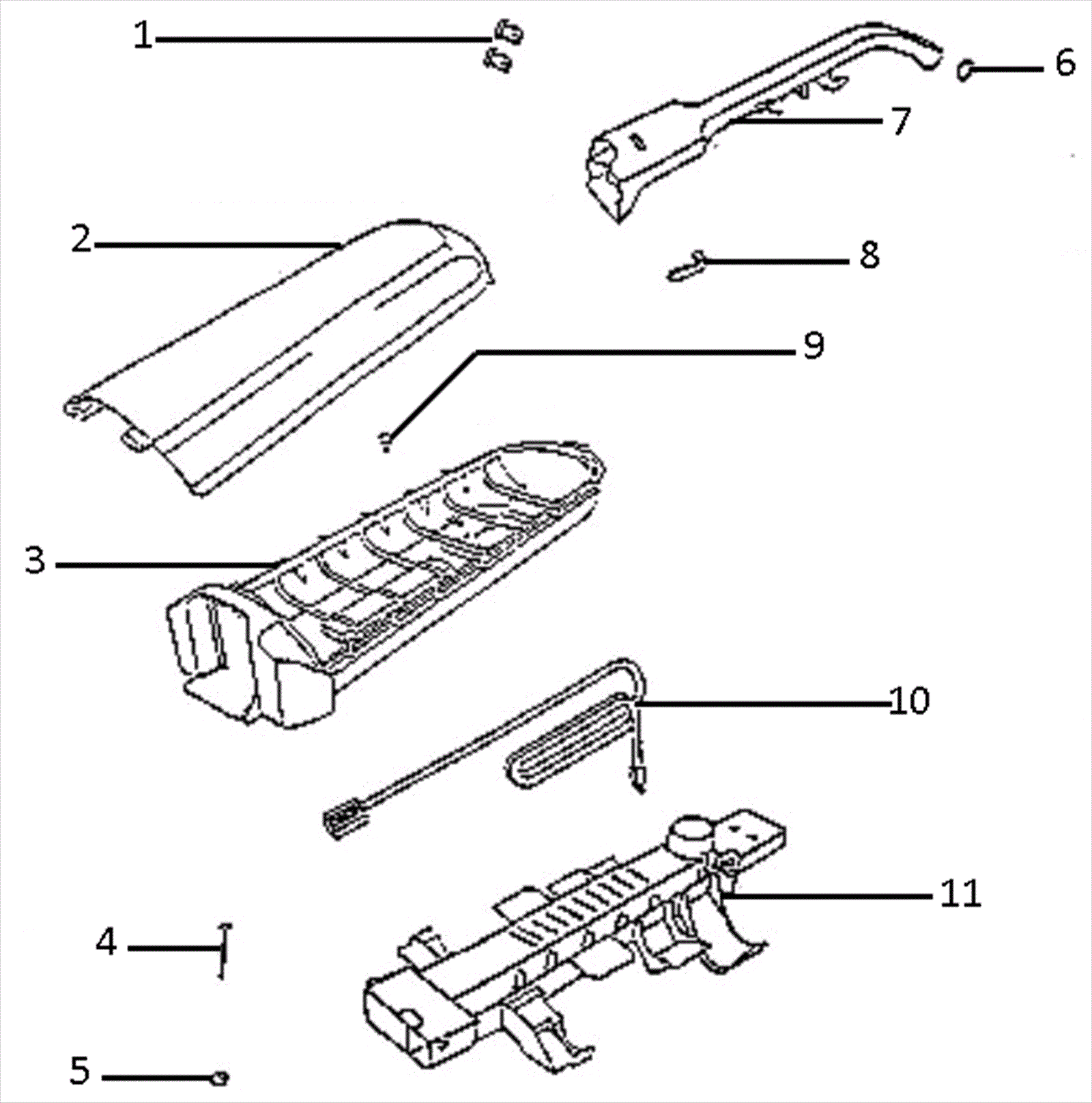

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
182-8278
|
Pin (pkg of 10) |
|
|
|
2 |
182-8279
|
Handle cover |
|
|
|
3 |
182-8280
|
Rear housing kit |
|
|
|
4 |
182-8281
|
Screw |
|
|
|
5 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
|
6 |
182-8282
|
Handle cap |
|
|
|
7 |
182-8283
|
Upper handle assembly |
|
|
|
8 |
182-8284
|
Cord release |
|
|
|
9 |
182-0008
|
Motor mounting screw |
|
|
|
10 |
182-8285
|
Cord and plug assembly |
|
|
|
11 |
182-8286
|
Lower handle |
|
|
|
