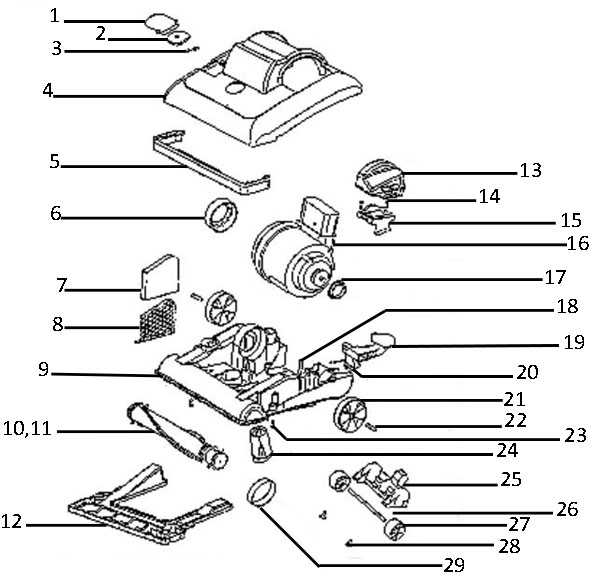

Base Assembly

#PartDescription ReqNotesAvailability
1 182-8249 Attachment door and gasket (OBSOLETE)
2 182-8250 Gasket (OBSOLETE)
3 182-0046 Axle spring
4 182-8251 Base assembly (OBSOLETE)
5 182-8252 Guard (OBSOLETE)
6 182-8253 Motor mount (OBSOLETE)
7 182-8254 Muffler (OBSOLETE)
8 182-8255 Screen (OBSOELTE)
9 182-8256 Base assembly (OBSOLETE)
10 182-7977 Disturbulator assembly
11 182-7977 Disturbulator assembly
12 182-8266 Bottom plate assembly (OBSOLETE)
13 182-8257 Pedal (OBSOLETE)
14 182-0714 Screw package
15 182-8259 Bracket
16 182-8258 Motor assembly
17 182-8267 Motor mount
18 182-8267 Motor mount
19 182-8260 Handle release
20 182-0046 Axle spring
21 182-8261 Wheel
22 182-8267 Motor mount
23 182-0714 Screw package
24 182-8262 Knob
25 182-8263 Wheel base
26 182-8264 Axle
27 182-8265 Wheel
28 182-8201 Screws
29 182-0595 Belt, extended life 2-pack (U-style) (84464)
