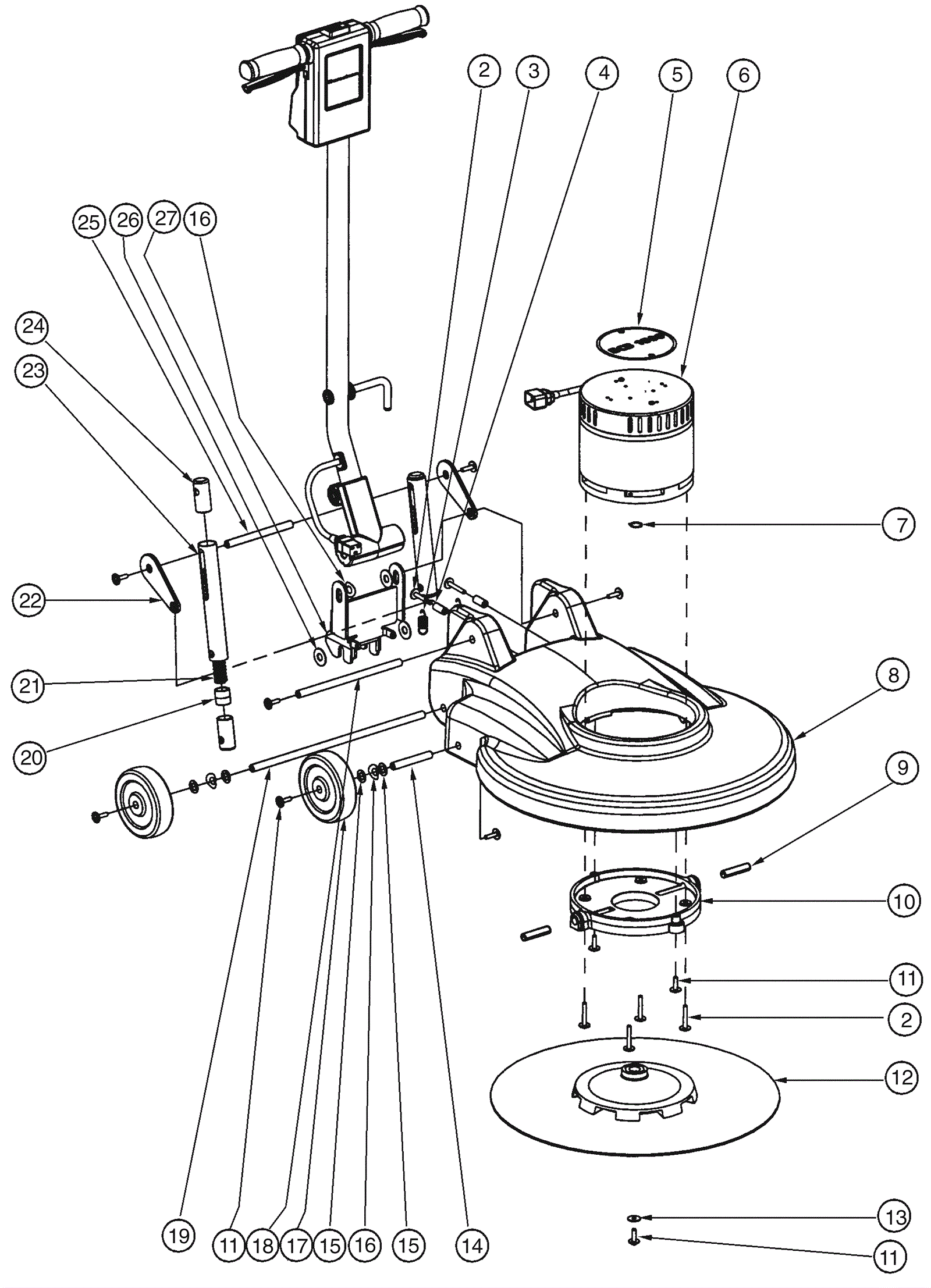

ECB 1500 Base Assembly

#PartDescriptionPriceReqNotesAvailability
2 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 6 ships same day
3 272-8226 Extension spring $10.56 2 usually ships 16-41 days
4 272-8734 Spacer $10.56 2 usually ships 1-5 days
5 272-8735 Motor decal (OBSOLETE) $7.59 1 usually ships 1-5 days
6a 272-8208 120V brush motor $1,714.77 1 usually ships 16-41 days
6b N/A Not available Call for price 1 (Carbon brush assembly) usually ships 3-26 days
6c 372-1685 Springs $37.49 4 usually ships 4-15 days
6d N/A Not available Call for price 4 (Carbon brush assembly) usually ships 3-26 days
6e 170-1510 Varistor $26.58 1 usually ships 16-41 days
6f 170-1509 Lead (yellow) $25.36 1 usually ships 16-41 days
6g 170-1508 Lead (red) $11.99 1 usually ships 16-41 days
6h 170-6417 Bracket commutator (OBSOLETE) $143.51 1 usually ships 1-5 days
6i 163-0063 240V rectifier $10.65 1 ships same day
6j 170-0321 Front end bearing $21.54 1 ships same day
6k 372-1890 Bearing (rear) $43.41 1 usually ships 16-41 days
6l 170-0379 Wave washer $10.56 1 usually ships 16-41 days
7 272-8494 External retaining ring $11.99 1 usually ships 1-5 days
8 272-8939 Motor weldment frame $783.75 1 usually ships 1-5 days
9 272-8206 Coiled pin $11.26 2 usually ships 16-41 days
10 272-8737 Motor mount $33.00 1 usually ships 1-5 days
11 272-8200 Button head screw $5.28 13 ships same day
12 272-8211 20 inch pad driver $514.77 1 usually ships 16-41 days
13 170-1274 Washer $10.56 1 usually ships 16-41 days
14 272-8212 Front axle $31.50 2 usually ships 16-41 days
15 170-0705 Washer 1/2 x 3/64 $2.70 8 usually ships 4-15 days
16 272-8202 Bowed washer $3.30 5 ships same day
17 172-3050 5 inch wheel $26.65 4 usually ships 7-17 days
18 272-8738 Pivot axle $12.83 1 usually ships 1-5 days
19 272-8213 Rear axle $12.83 1 usually ships 16-41 days
20 272-8739 Sleeve $16.07 2 usually ships 1-5 days
21 272-8740 Compression spring $11.99 2 usually ships 16-41 days
22 272-8741 Linking arm $17.61 2 usually ships 16-41 days
23 272-8742 Tube spring (OBSOLETE) $7.59 2 usually ships 1-5 days
24 272-8743 Spring guide $12.83 4 usually ships 1-5 days
25 272-8744 Loaded spring pin $12.83 1 usually ships 1-5 days
26 170-6124 Washer flat nylon $1.21 3 usually ships 4-15 days
27 272-8745 Release pedal $110.97 1 usually ships 1-5 days
