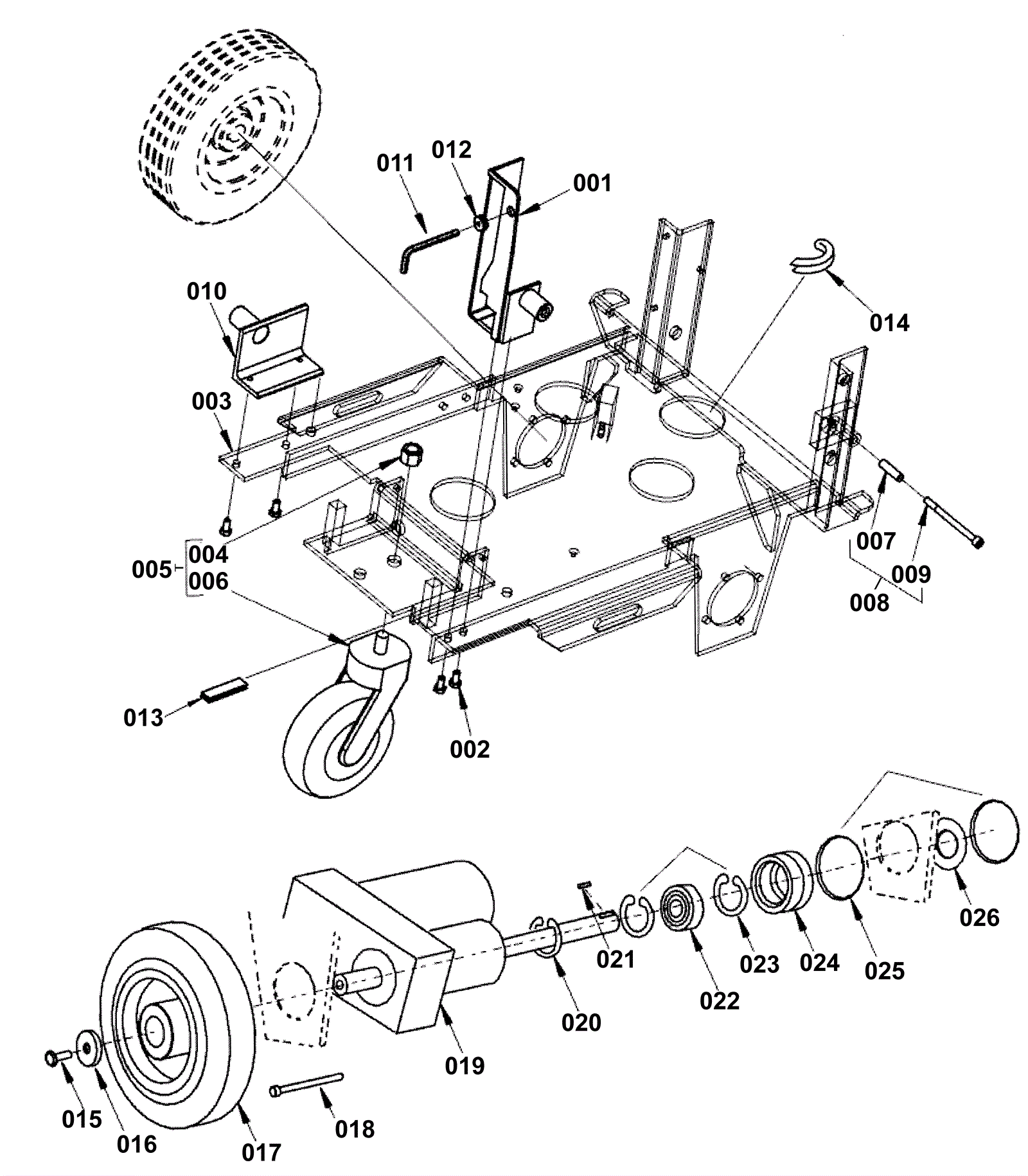

BA 5321-D Chassis With Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-2370 Right tank axle $55.00 1 usually ships 1-5 days
002 272-1923 Screw M6-1 x 12mm hex head $10.31 4 usually ships 1-5 days
003 172-2371 Chassis (OBSOLETE) $361.83 1 usually ships 1-5 days
004 172-2372 Nut hex $11.54 1 usually ships 1-5 days
005 272-2712 Caster wheel kit $149.02 1 Includes 004 and 006 usually ships 17-28 days
006 272-2712 Caster wheel kit $149.02 1 usually ships 17-28 days
007 181-0914 Spacer $11.99 1 usually ships 1-5 days
008 172-2374 Tank closure kit (OBSOLETE) $9.46 1 Includes 007 and 009 usually ships 17-28 days
009 N/A Not available Call for price 1 usually ships 3-26 days
010 172-2375 Left tank axle (OBSOLETE) $22.00 1 usually ships 1-5 days
011 272-8091 Allen wrench $10.52 1 usually ships 1-5 days
012 272-8093 Cable guide $8.80 1 usually ships 1-5 days
013 172-2376 Reinforced seal (OBSOLETE) $6.29 1 usually ships 1-5 days
014 172-2377 Seal (OBSOLETE) $8.07 1 usually ships 1-5 days
015 172-2378 Screw hex (OBSOLETE) $5.94 2 usually ships 1-5 days
016 999-1262 Washer M10 flat $1.47 2 ships same day
017 172-2379 Drive wheel with traction (OBSOLETE) $190.08 2 usually ships 17-28 days
018 272-1923 Screw M6-1 x 12mm hex head $10.31 4 usually ships 1-5 days
019 272-2706 Drive motor $2,750.00 1 usually ships 11-21 days
020 172-2381 Retaining ring (OBSOLETE) $7.70 2 usually ships 1-5 days
021 272-0751 Feather key $13.76 2 ships same day
022 172-2383 Ball bearing $30.28 1 usually ships 17-28 days
023 172-2384 Washer lock (OBSOLETE) $5.94 2 usually ships 1-5 days
024 172-2385 Bearing support $30.13 1 usually ships 1-5 days
025 172-2386 Washer lock $10.23 2 usually ships 1-5 days
026 172-2387 Washer $9.35 1 usually ships 1-5 days
