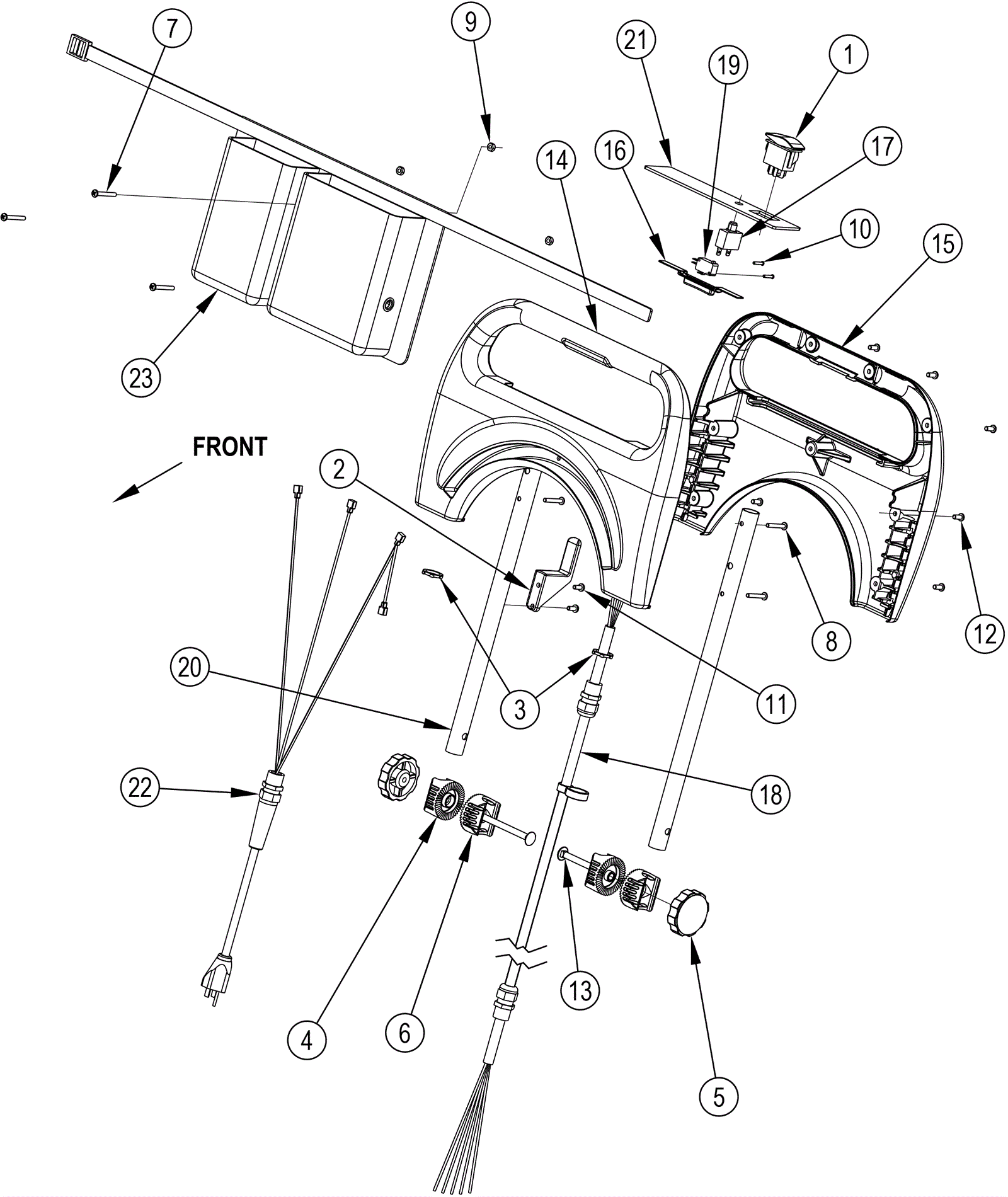

KLENZOR 16 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-0486 3 position rocker switch $34.66 1 usually ships 16-41 days
2 172-4104 Cord hook $34.66 1 usually ships 16-41 days
3 172-4536 Nut 1/2-14 conduit lock $11.99 2 usually ships 16-41 days
4 272-5069 Handle adjustment ratchet $23.95 2 usually ships 16-41 days
5 272-5070 Knob (OBSOLETE) $5.91 2 usually ships 16-41 days
6 272-5068 Handle adjustment ratchet $33.24 2 usually ships 16-41 days
7 181-0357 Screw 10-24 x 1 1/2 pan head phillips $9.27 3 usually ships 1-5 days
8 999-0570 Screw 10-24 x 1 1/4 pan head phillips stainless steel $0.99 4 ships same day
9 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 3 ships same day
10 172-1285 Screw 1/4-20 x 5/8 pan head phillips plastite $11.99 2 usually ships 16-41 days
11 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
12 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.56 9 usually ships 16-41 days
13 272-5245 Screw 5/16-18 X 3.50 carriage $10.52 2 usually ships 1-5 days
14 272-0493 Front handle cover (OBSOLETE) $59.03 1 usually ships 16-41 days
15 272-0559 Rear handle cover (OBSOLETE) $42.19 1 usually ships 16-41 days
16 272-0495 Spray button $11.99 1 ships same day
17 170-5173 Circuit breaker $13.40 1 usually ships 16-41 days
18 272-0560 Main cable assembly $171.88 1 usually ships 1-5 days
19 272-0503 Snap action switch $12.83 1 usually ships 16-41 days
20 272-0561 Handle tube $32.43 2 usually ships 1-5 days
21 272-0562 Control panel plate $10.52 1 usually ships 1-5 days
22a 272-0494 14/3 power cord 50 foot $158.05 1 (OEM) ships same day
22b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
23 272-0488 Utility bag (OBSOLETE) $31.48 1 usually ships 1-5 days
