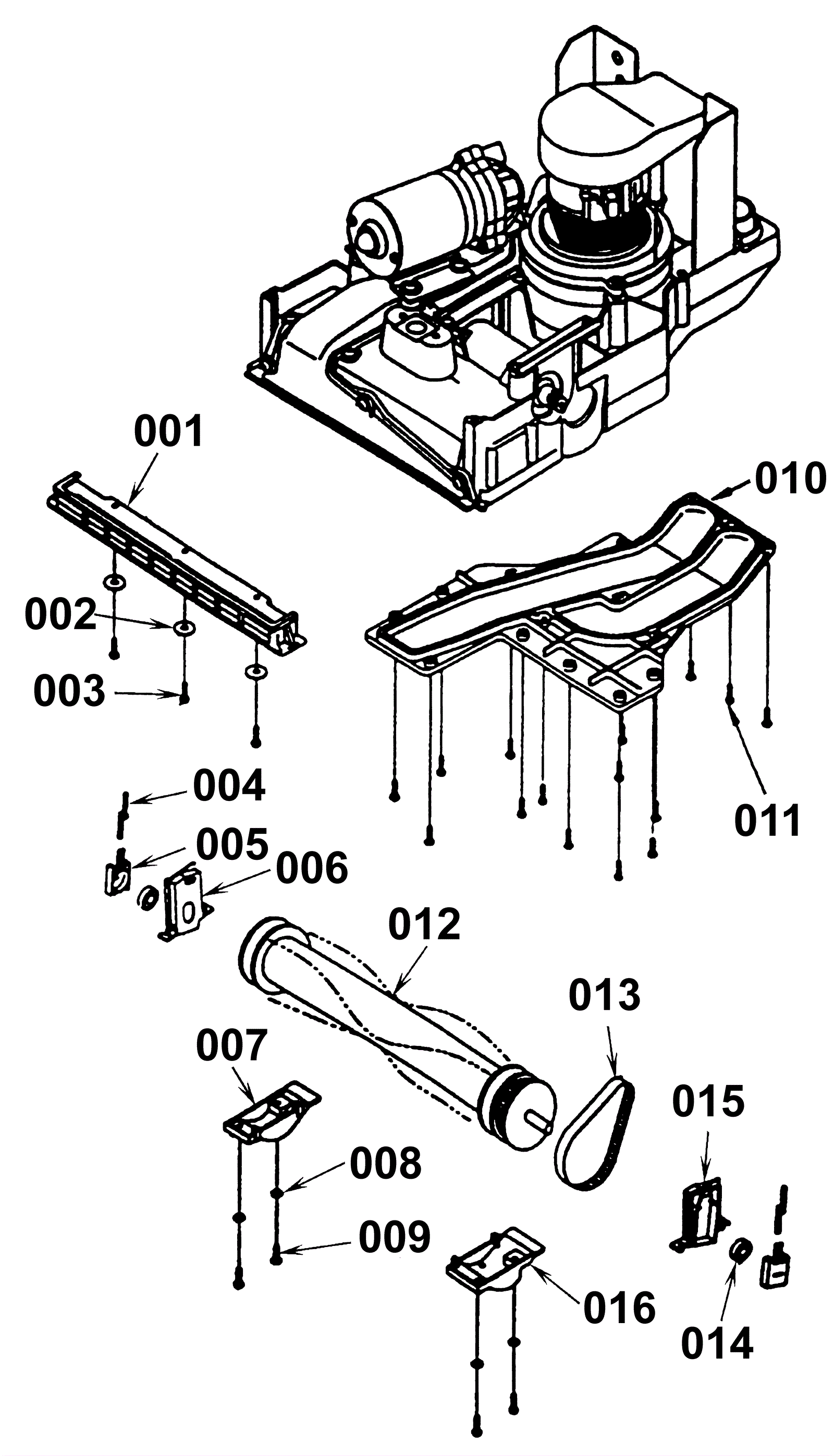

EC12 Brush Roll Assembly

#PartDescriptionPriceReqNotesAvailability
001a 181-1573 Vacuum shoe (OBSOLETE) Call for price 1 usually ships 13-16 days
001b 181-1574 Vacuum shoe w/gasket (OBSOLETE) Call for price 1 usually ships 1-5 days
002 999-0266 Washer #8 SAE flat stainless steel Call for price 3 usually ships 11-14 days
003 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel Call for price 3 usually ships 11-14 days
004 181-1576 Brush spring (OBSOLETE) Call for price 4 usually ships 1-5 days
005 181-1577 Slide block (OBSOLETE) Call for price 2 usually ships 1-5 days
006 181-1578 Left brush retainer (OBSOLETE) Call for price 1 usually ships 1-5 days
007 181-1579 Left brush retainer cover (OBSOLETE) Call for price 1 usually ships 1-5 days
008 N/A Not available Call for price 4 Not available(cushion washer) usually ships 3-26 days
009 181-1550 Screw -32 x 5/8 truss head stainless steel (OBSOLETE) Call for price 4 usually ships 1-5 days
010 181-1581 Bottom cover (OBSOLETE) Call for price 1 usually ships 13-16 days
011 181-1582 Screw 8-16 x 1 plastite pan head (OBSOLETE) Call for price 15 usually ships 1-5 days
012 181-1583 Brush roll w/pulley assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
013 181-1584 Pitch belt (OBSOLETE) Call for price 1 usually ships 1-5 days
014 181-1585 Brush bearing (OBSOLETE) Call for price 2 usually ships 1-5 days
015 181-1586 Right retainer brush (OBSOLETE) Call for price 1 usually ships 1-5 days
016 181-1587 Right brush retainer cover (OBSOLETE) Call for price 1 usually ships 1-5 days
