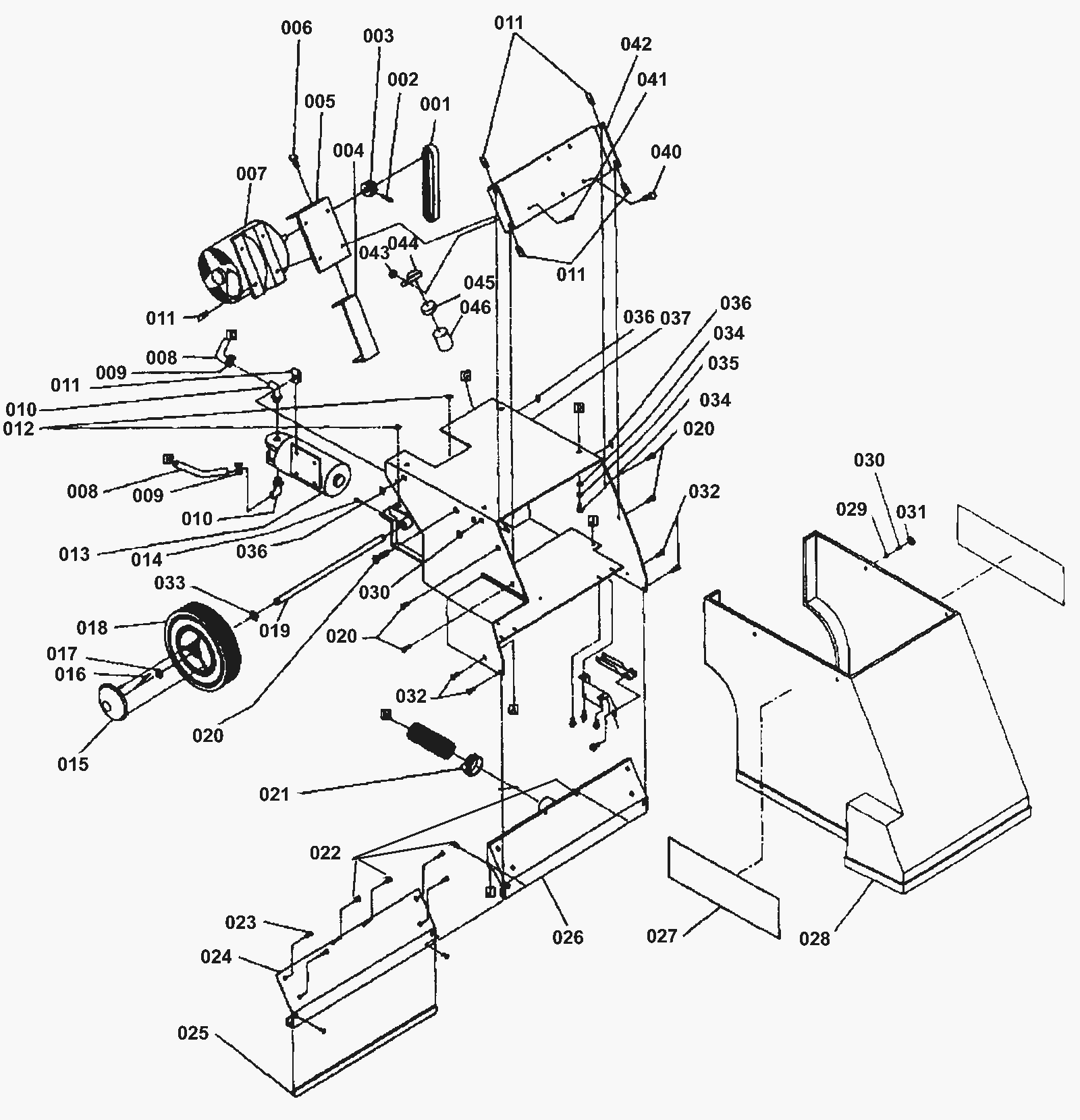

Base Assembly

#PartDescription ReqNotesAvailability
001 172-6275 V belt 1
002 172-4051 Spring pin 1
003 N/A Not available 1 (Grooved pulley)
004 N/A Not available 1 (Weldment plate)
005 N/A Not available 1 (Motor base weldment)
006 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
007 N/A Not available 1 (Motor)
008 172-2737 Solution hose 3/8 x 10 inch 2
009 997-2001 Hose clamp 2
010 N/A Not available 2 (Male pipe thread elbow 3/8 x 3/8)
011 172-2049 Nut 1/4- 20 6
012 999-0190 Nut 1/4-20 hex plain finish 1
013 172-5663 Water pump (OBSOLETE) 1
014 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 2
015 181-0314 Hub cap (OBSOLETE) 2
016 N/A Not available 2 (Cotter pin)
017 999-0187 Washer 1/2 flat plain finish 2
018 181-0315 8 inch wheel 2
019 N/A Not available 2 (Steel rod)
020 999-1164 Bolt 1/4-28 x 5/8 hex head stainless steel 6
021 997-2008 Hose clamp 1
022 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 10
023 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 6
024 N/A Not available 1 (Vacuum chamber)
025 N/A Not available 1 Nose piece
026 N/A Not available 1 Casting assembly
027 N/A Not available 2 (ID Decal)
028 N/A Not available 1
029 999-0006 Washer 3/16 flat zinc plated 4
030 999-0201 Washer 3/8 internal star lock 4
031 N/A Not available 4 (Plug)
032 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 4
033 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
034 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
035 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2
036 999-0123 Washer 1/4 SAE flat zinc plated 2
037 N/A Not available 1 Base weldment
038 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread 4
040 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
041 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 1
042 N/A Not available 1 (Front panel)
043 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
044 172-7246 Loop clamp (OBSOLETE) 1
045 N/A Not available 1 (Electric cap)
046 181-0335 Replacement capacitor 1
047 272-0222 Cap bottom (OBSOLETE) 1
048 N/A Not available 1 (Steel bracket)
049 N/A Not available 1
