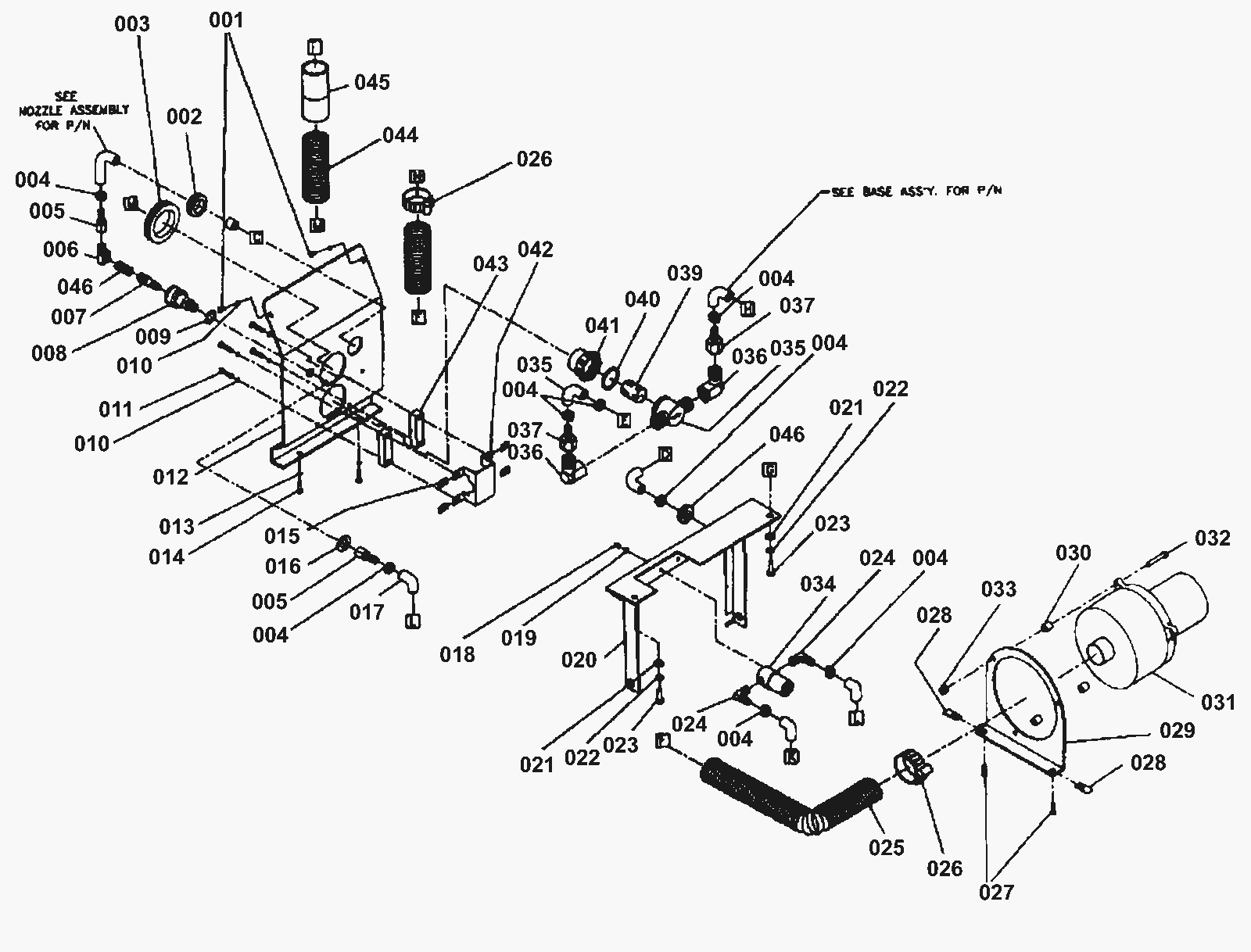

Auxiliary Panel Assembly

#PartDescription ReqNotesAvailability
001 175-3240 Elevated cover 2
002 181-0202 Grommet 1
003 172-4032 Grommet 1
004 997-2001 Hose clamp 8
005 181-0370 Adapter (OBSOLETE) 1
006 272-0213 Elbow pipe (OBSOLETE) 1
007 N/A Not available 1 (Quick connect nipple)
008 209-0368 Female quick disconnect 1
009 N/A Not available 1
010 999-0053 Washer #10 split lock plain finish 6
011 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 4
012 N/A Not available 1 (Rear cover)
013 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4
014 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
015 172-4433 Nut 10-24 insert 4
016 999-0855 Washer 9/16 SAE flat 1
017 172-2737 Solution hose 3/8 x 10 inch 1
018 N/A Not available 1 Screw 8-32 x 1/4 pan head
019 N/A Not available 1 Washer 11/64 x 3/8 x 1/64 external lock
020 N/A Not available 1 (Brace weldment)
021 999-0123 Washer 1/4 SAE flat zinc plated 2
023 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
024 N/A Not available 2 (Brass elbow)
025 172-7804 Vinyl hose (black) 1
026 997-2008 Hose clamp 2
027 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
028 172-2049 Nut 1/4- 20 2
029 172-7962 Vacuum motor bracket (OBSOLETE) 1
030 181-0421 Spacer 3
031 991-1204 120V 3 stage vacuum motor tangential with snout 1 115v
032 999-0684 Screw 10-24 x 1 1/2 socket cap 3
033 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
034 181-0380 Solenoid valve (OBSOLETE) 1 115v
035 N/A Not available 1 Housing
036 172-2102 Street elbow (OBSOLETE) 2
037 N/A Not available 2 (Adapter)
038 272-0215 Vinyl tube 1
039 172-6792 Filter screen (OBSOLETE) 1
040 172-6799 O-ring filter 1
041 172-6795 Filter cover 1
042 N/A Not available 1 (Filter bracket)
043 N/A Not available 2 Rubber spacer
044 272-0217 Vinyl vacuum hose (OBSOLETE) 1
045 181-0738 Hose cuff 1
046 172-6986 Grommet (OBSOLETE) 1
048 N/A Not available 1 Nipple 1/4 x 1/4 hex
