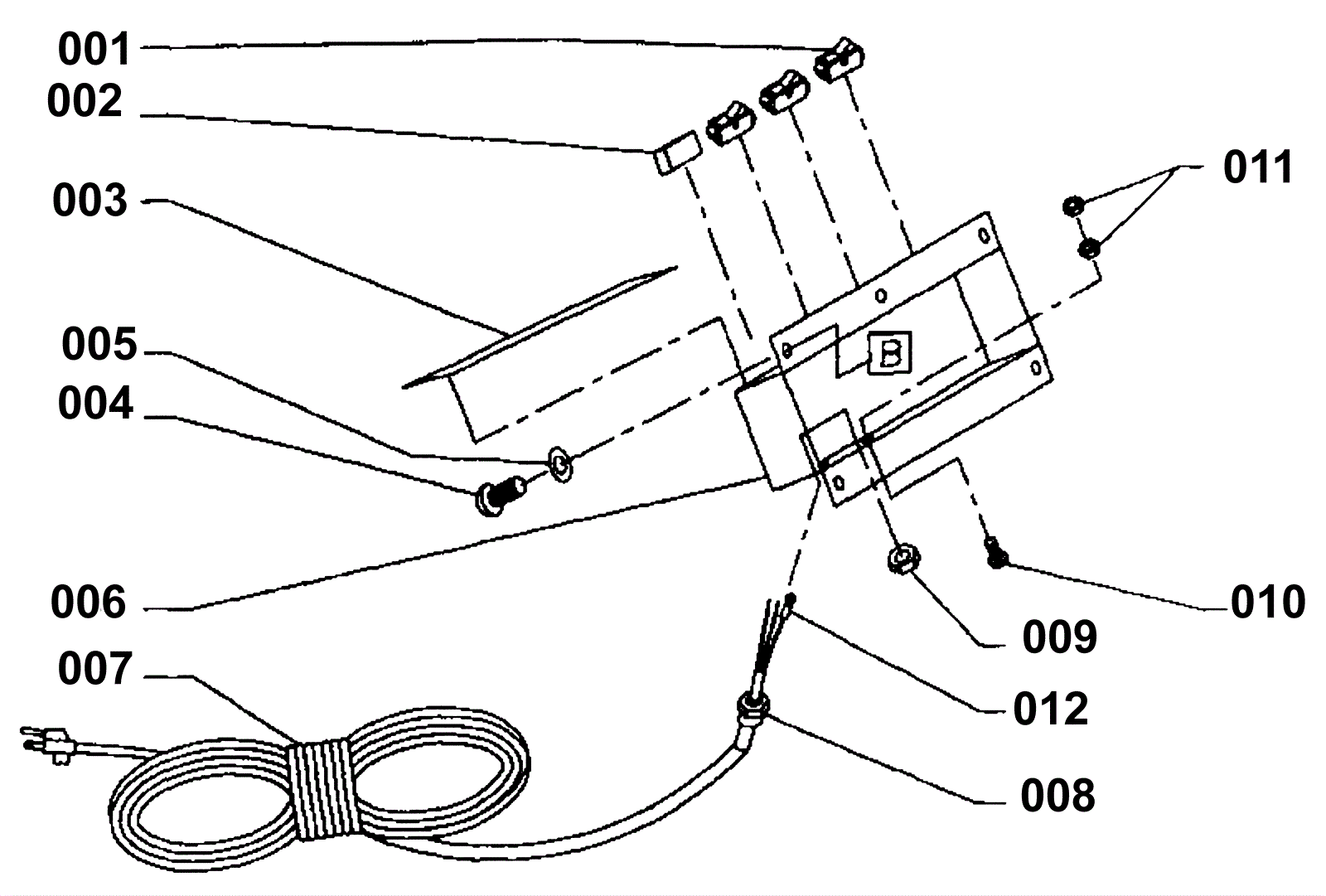

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
3 |
(Rocker switch) |
|
002 |
N/A
|
Not available |
1 |
(Indicator light) |
|
003 |
N/A
|
Not available |
1 |
(Instruction decal for power vacuum, pump and brushes) |
|
004 |
999-0413
|
Screw 10-32 x 1/2 pan head slotted zinc plated |
5 |
|
|
005 |
999-0053
|
Washer #10 split lock plain finish |
5 |
|
|
006 |
N/A
|
Not available |
1 |
Panel weldment |
|
007 |
172-6258
|
14/3 power cord 75 foot (OBSOLETE) |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Strain relief bushing) |
|
009 |
172-4536
|
Nut 1/2-14 conduit lock |
1 |
|
|
010 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
|
011 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
012 |
272-0212
|
Terminal ring |
1 |
|
|
