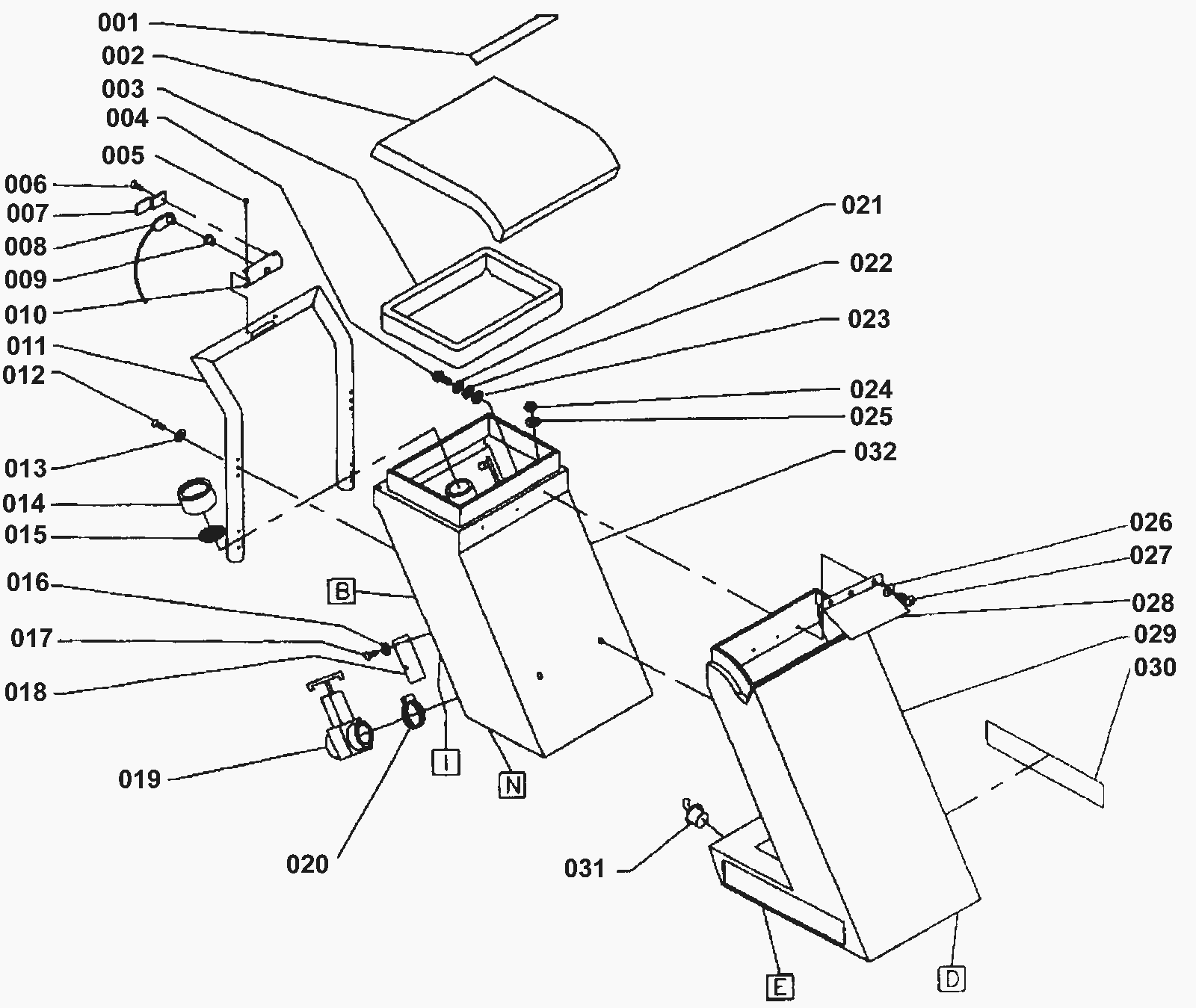

KX 180SC Tanks Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-7919 Instruction label (OBSOLETE) $21.20 1 usually ships 1-5 days
002 172-7961 Tank cover (OBSOLETE) $177.22 1 usually ships 16-41 days
003 N/A Not available Call for price 1 (Recovery gasket) usually ships 3-26 days
004 N/A Not available Call for price 2 Product is obsolete usually ships 3-26 days
005 N/A Not available Call for price 4 (Nylon clip) usually ships 3-26 days
006 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
007 N/A Not available Call for price 1 (Steel plate) usually ships 3-26 days
008 172-6456 Waterproof push switch (OBSOLETE) $113.40 1 usually ships 1-5 days
009 N/A Not available Call for price 1 (Plastic button - for pump) usually ships 3-26 days
010 272-2033 Handle cover weldment (OBSOLETE) $17.50 1 usually ships 1-5 days
011 N/A Not available Call for price 1 Handle usually ships 3-26 days
012 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel $2.05 4 ships same day
013 272-2034 Washer 5/19 x 8/17 x 1/38 internal lock (OBSOLETE) $5.40 4 usually ships 1-5 days
014 172-8430 Pipe coupling (OBSOLETE) $371.00 1 usually ships 1-5 days
015 N/A Not available Call for price 1 Mesh screen usually ships 3-26 days
016 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
017 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated $2.20 2 ships same day
018 272-2035 Steel plate (OBSOLETE) $15.34 1 usually ships 1-5 days
019 N/A Not available Call for price 1 (Slide valve) usually ships 3-26 days
020 181-0636 Hose clamp $10.90 1 usually ships 1-5 days
021 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
022 172-5951 Washer 1/3 x 3/4 x 1/10 flat brass (OBSOLETE) $9.00 2 usually ships 1-5 days
023 181-0299 Bushing $13.70 2 usually ships 1-5 days
024 999-0960 Nut 10-24 hex stainless steel $0.99 2 ships same day
025 N/A Not available Call for price 3 Seal washer usually ships 3-26 days
026 N/A Not available Call for price 3 (Washer) usually ships 3-26 days
027 272-2038 Vacuum motor assembly (OBSOLETE) $5.40 3 usually ships 1-5 days
028 N/A Not available Call for price 1 Solution intake screen usually ships 3-26 days
029 N/A Not available Call for price 1 (Solution tank) usually ships 3-26 days
030 N/A Not available Call for price 2 Recovery tank usually ships 3-26 days
031 181-0441 Expansion plug $33.37 1 usually ships 16-41 days
032 N/A Not available Call for price 1 usually ships 3-26 days
