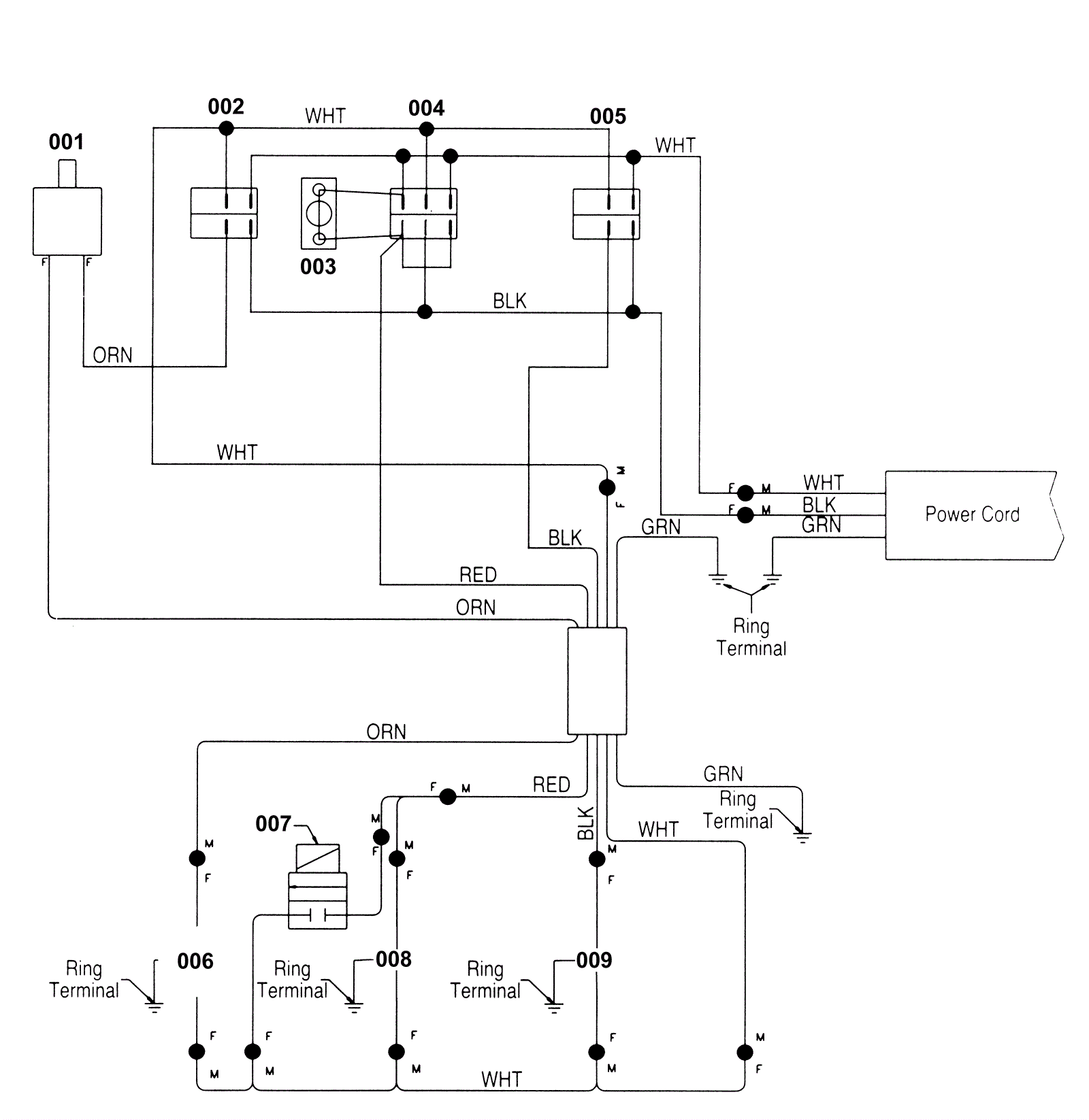

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-2160
|
10amp circuit breaker |
1 |
|
|
002 |
N/A
|
Not available |
1 |
(Switch) |
|
003 |
N/A
|
Not available |
1 |
(Indicator light) |
|
004 |
181-0479
|
DPDT Switch (OBSOLETE) |
1 |
|
|
005 |
N/A
|
Not available |
1 |
(Switch) |
|
006 |
N/A
|
Not available |
1 |
(Motor assembly) |
|
007 |
181-0380
|
Solenoid valve (OBSOLETE) |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Pump) |
|
009 |
991-1204
|
120V 3 stage vacuum motor tangential with snout |
1 |
|
|
