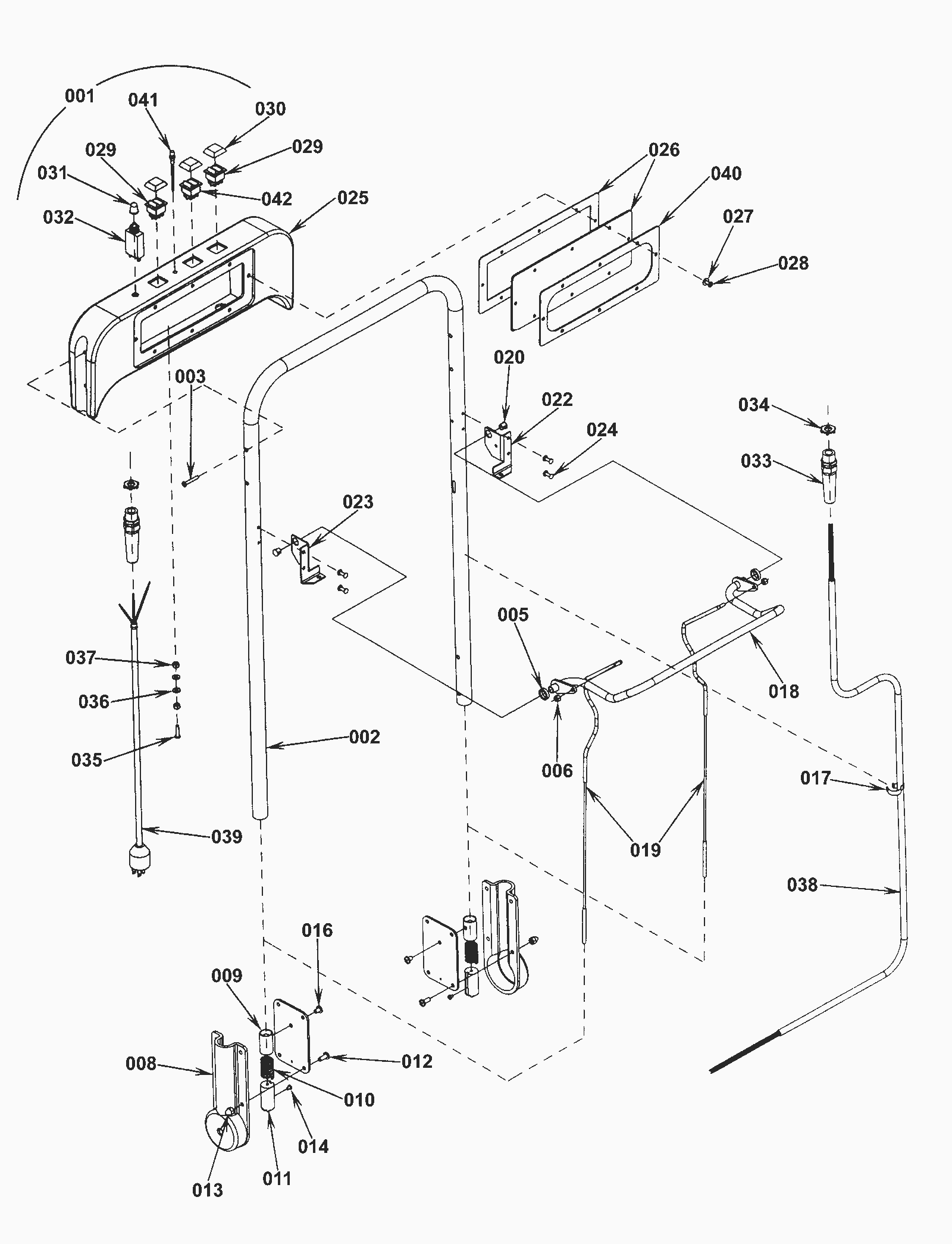

Handle Assembly

#PartDescription ReqNotesAvailability
001 N/A Not available 1 (Control panel assembly)
002 181-0452 Handle weldment (OBSOLETE) 1
003 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 4
005 N/A Not available 2 (Washer)
006 999-0086 Nut 10-32 nylon insert lock zinc plated 2
008 N/A Not available 2 (Pivot casting)
009 N/A Not available 2 (Steel tube)
010 172-2141 Compression spring (OBSOLETE) 2
011 N/A Not available 2 (Latching pin)
012 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 8
013 999-0429 Nut 1/4-20 acorn nickel plated 8
014 999-0690 Screw 5/16-24 x 1 cup point socket set stainless steel 2
016 N/A Not available 2 (Screw 1/4-20 x 3/8 machine round head stainless steel)
017 N/A Not available 1 (Spring clip)
018 181-0461 Weldment lever (OBSOLETE) 1
019 181-0462 Cable (OBSOLETE) 2
020 172-2255 Plug 2
022 N/A Not available 1 (Right handed plate)
023 N/A Not available 1 (Left handed plate)
024 N/A Not available 6 (Pop rivet)
025 N/A Not available 1 (Control panel)
026a N/A Not available 1 Gasket & Cover assembly
026b N/A Not available 1 (Cover)
026c N/A Not available 1 (Gasket)
027 999-0006 Washer 3/16 flat zinc plated 8
028 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 8
029 N/A Not available 2 (Switch)
030 N/A Not available 3 (Rubber boot)
031 N/A Not available 1 (Rubber boot)
032 172-2160 10amp circuit breaker 1
033 181-0473 Strain relief (OBSOLETE) 2
034 172-4536 Nut 1/2-14 conduit lock 2
035 181-0474 Screw 10-32 x 7/8 phillips pan head 1
036 999-0053 Washer #10 split lock plain finish 2
037 999-0460 Nut 10-32 hex 2
038 N/A Not available 1 (Cord)
039a 181-0476 14/3 power cord (OBSOLETE) 1
039b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
039c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
040 N/A Not available 1 Plate
041 N/A Not available 1 (Indicator light)
042 181-0479 DPDT Switch (OBSOLETE) 1
