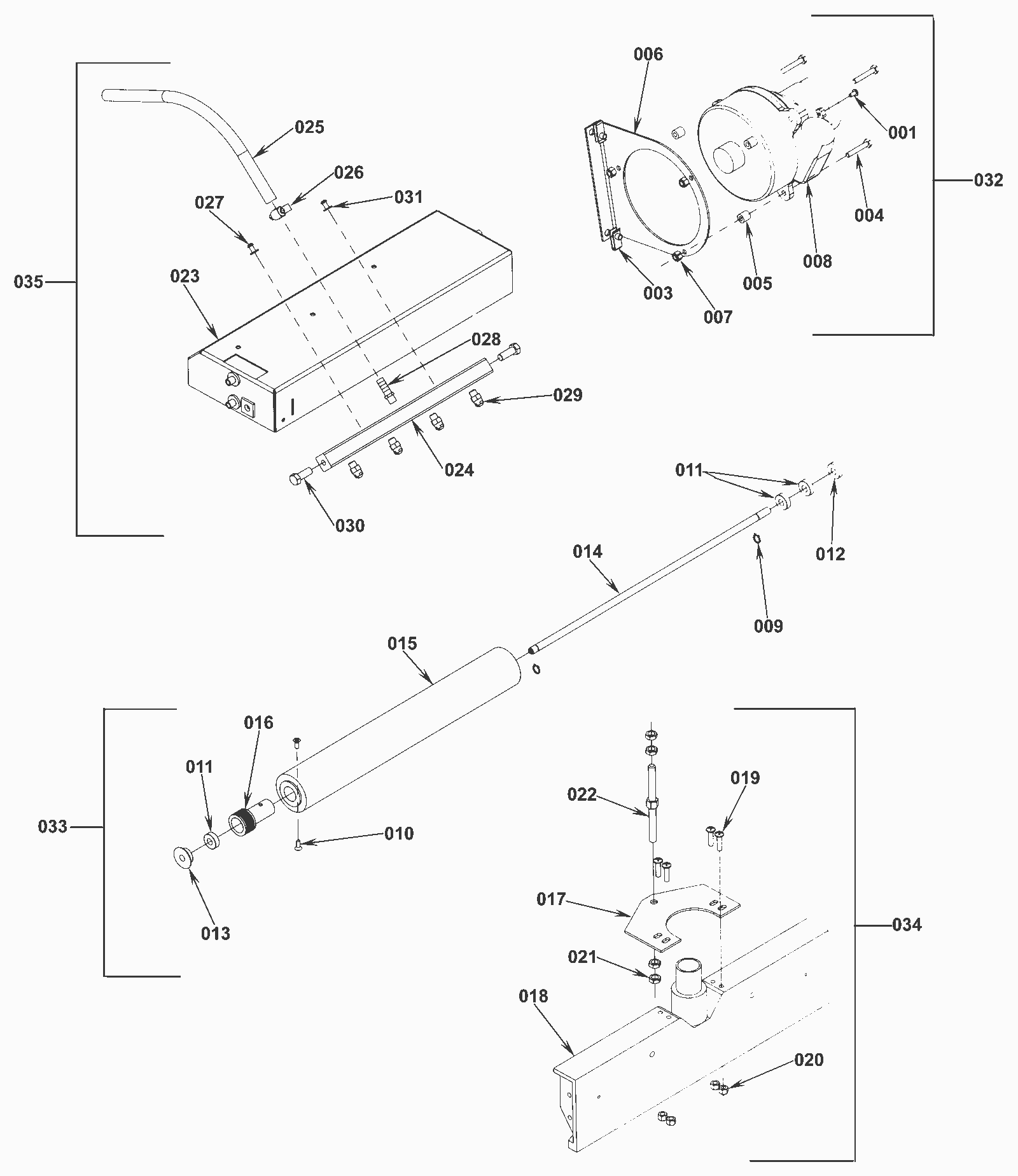

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
|
003 |
172-2049
|
Nut 1/4- 20 |
2 |
|
|
004 |
999-0344
|
Bolt 1/4-20 x 1 1/2 hex head plain finish |
3 |
|
|
005 |
181-0421
|
Spacer |
3 |
|
|
006 |
N/A
|
Not available |
1 |
(Vacuum motor bracket) |
|
007 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
008 |
991-1204
|
120V 3 stage vacuum motor tangential with snout |
1 |
|
|
009 |
181-0424
|
Retaining ring |
2 |
|
|
010 |
999-0554
|
Screw 10-24 x 1/2 flat head slotted stainless steel |
2 |
|
|
011 |
181-0425
|
Ball bearing (OBSOLETE) |
3 |
|
|
012 |
181-0426
|
Grease seal |
1 |
|
|
013 |
181-0427
|
Spacer seal (OBSOLETE) |
1 |
|
|
014 |
181-0428
|
Brush axle (OBSOLETE) |
1 |
|
|
016 |
181-0363
|
Groove pulley (OBSOLETE) |
1 |
|
|
017 |
N/A
|
Not available |
1 |
(Vacuum chamber lift bracket) |
|
018 |
N/A
|
Not available |
1 |
(Vacuum chamber casting) |
|
019 |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
4 |
|
|
020 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
021 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
022 |
N/A
|
Not available |
1 |
(Stud) |
|
023 |
N/A
|
Not available |
1 |
(Extractor head weldment) |
|
024 |
N/A
|
Not available |
1 |
(Solution tube) |
|
025 |
181-0436
|
Hose 18 inch |
1 |
|
|
026 |
997-2001
|
Hose clamp |
1 |
|
|
027 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
|
028 |
181-0437
|
Grommet |
1 |
|
|
029 |
N/A
|
Not available |
4 |
(Spray nozzle)
|
|
030 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
2 |
|
|
031 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
032 |
N/A
|
Not available |
1 |
(Vacuum motor assembly) |
|
033 |
N/A
|
Not available |
1 |
(Brush assembly) |
|
034 |
N/A
|
Not available |
1 |
(Includes items 017 - 022) Vacuum chamber assembly |
|
035 |
N/A
|
Not available |
1 |
(Extractor assembly) |
|
