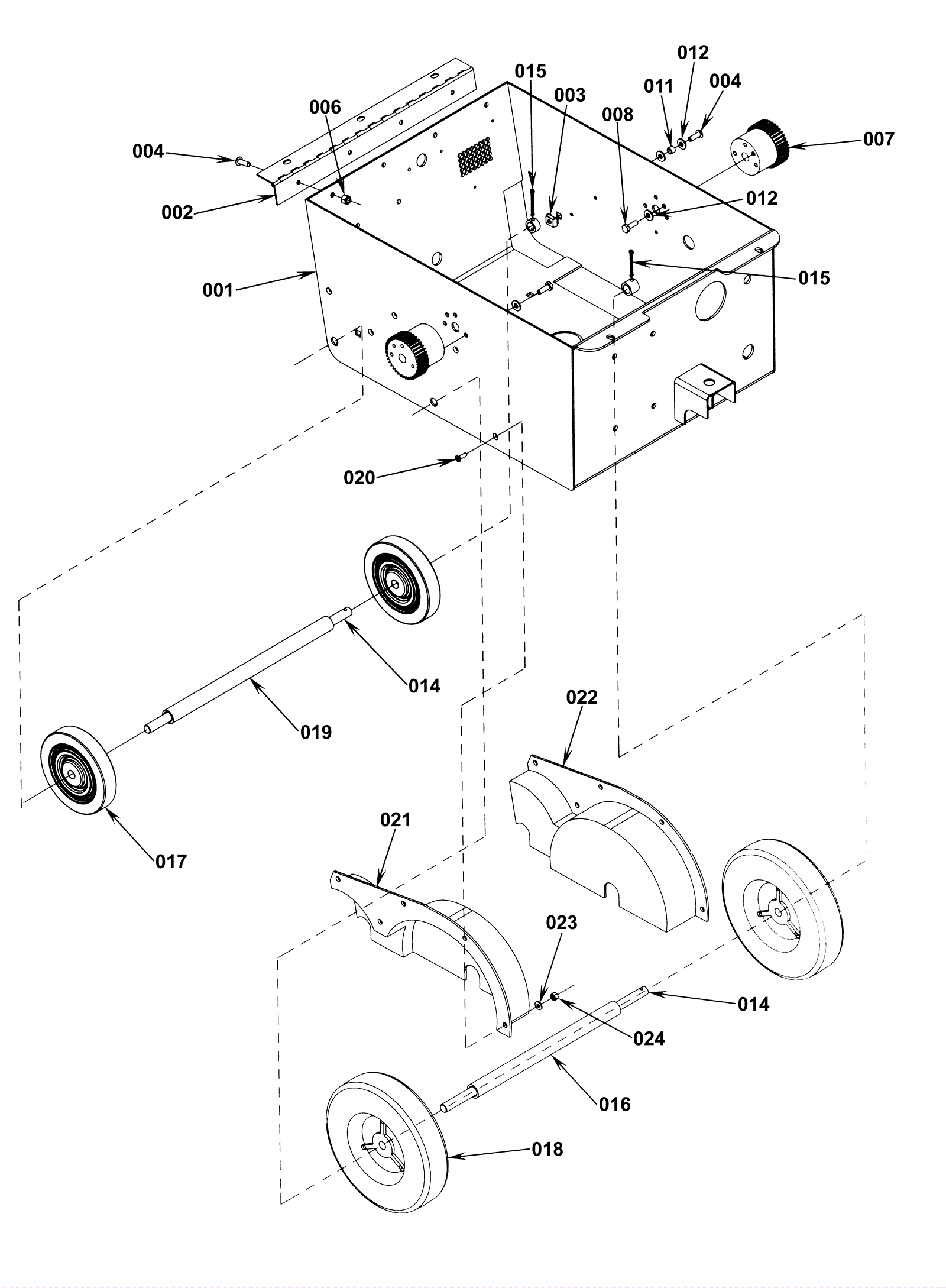

Base Assembly 2

#PartDescription ReqNotesAvailability
000 N/A Not available 1 (Base assembly)
001 N/A Not available 1 (Extractor base)
002 N/A Not available 1 (Hinge)
003 999-0190 Nut 1/4-20 hex plain finish 9
004 999-0512 Bolt 3/8-24 x 3/4 hex head grade 5 zinc plated 6
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
007 181-0413 Gear (OBSOLETE) 2 (Gear)
008 272-1596 Bolt 1/4-20 x 3/4 hex head lock 8
011 N/A Not available 2 (Sleeve bushing)
012 999-0123 Washer 1/4 SAE flat zinc plated 12
014 N/A Not available 2 (Wheel axle)
015 172-9386 Cotter pin 2
016 N/A Not available 1 (Pipe)
017 181-0416 5 inch wheel 2
018 181-0315 8 inch wheel 2
019 N/A Not available 1 (Pipe)
020 181-0214 Screw flat phil SS 10
021 N/A Not available 1 (Wheel cover)
022 N/A Not available 1 (Wheel cover)
023 999-0006 Washer 3/16 flat zinc plated 10
024 999-0442 Nut 10-24 nylon insert lock stainless steel 10
