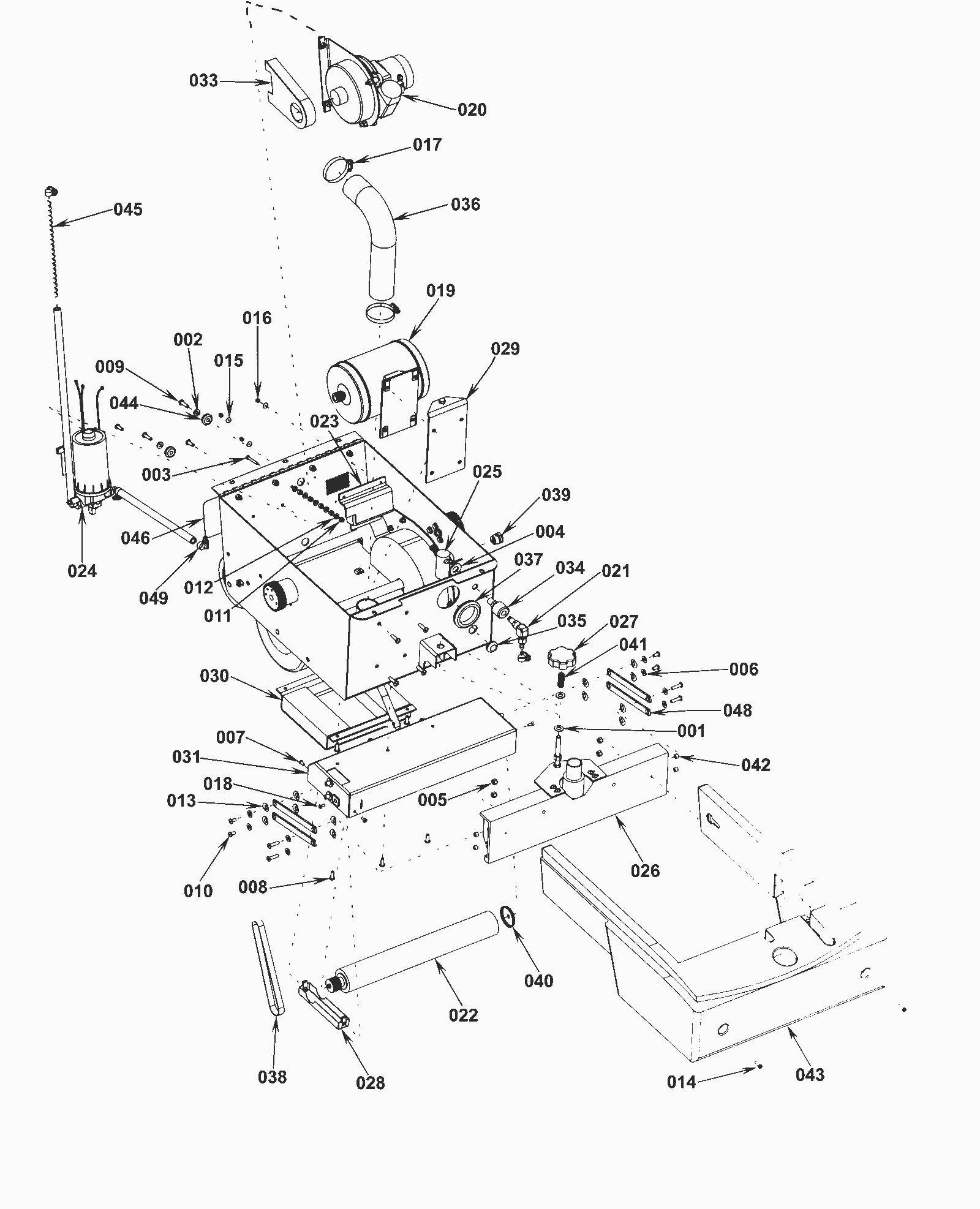

Base Assembly 1

#PartDescription ReqNotesAvailability
000 N/A Not available 1 (Base assembly)
001 999-0120 Washer 3/8 SAE flat 3
002 999-0123 Washer 1/4 SAE flat zinc plated 2
003 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated 1
004 999-0855 Washer 9/16 SAE flat 1
005 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
006 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
007 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 2
008 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 9
009 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 10
010 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
011 N/A Not available 5 (Sleeve bushing)
012 999-0053 Washer #10 split lock plain finish 5
013 172-6237 Washer 3/8 bowed (OBSOLETE) 12
014 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 2
015 172-0253 Washer 1/8 x 23/64 flat stainless steel 3
016 181-0359 Rivet 1/8 x 1/4 pop 3
017 997-2003 Hose clamp 2
018 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 2
019a N/A Not available 1 (Motor assembly)
019b N/A Not available 1 (115V AC motor)
019c 181-0363 Groove pulley (OBSOLETE) 1
019d 172-4051 Spring pin 1
019e 172-2049 Nut 1/4- 20 4
019f N/A Not available 1 (Wire assembly)
019g N/A Not available 1 (Romex clamp)
019h 181-0366 Receptacle 1/4 2
020 N/A Not available 1 (Vacuum motor assembly)
021a N/A Not available 1 (Coupler assembly)
021b N/A Not available 1 (Coupler)
021c 181-0370 Adapter (OBSOLETE) 1
022 N/A Not available 1 (Brush assembly)
023a N/A Not available 1 (Cooling muffler assembly)
023b N/A Not available 1 (Air cooling muffler bracket)
023c N/A Not available 1 (Self adhesive foam)
024a N/A Not available 1 (Pump assembly)
024b N/A Not available 1 (Pump)
024c 172-2734 Elbow barb 27/64 x 3/8 2
024d 997-2001 Hose clamp 2
024e 272-1036 Solution hose 1
024f 181-0378 Hose 20 inch 1
024g 172-2049 Nut 1/4- 20 2
025a N/A Not available 1 (Valve assembly)
025b 181-0380 Solenoid valve (OBSOLETE) 1
025c 172-0298 Barb fitting 1/4 x 3/8 1
026 N/A Not available 1 Vacuum chamber assembly
027a N/A Not available 1 (Knob assembly)
027b N/A Not available 1 (Plastic knob)
027c 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
028 N/A Not available 1 (Bracket)
029a N/A Not available 1 (Takeup assembly)
029b N/A Not available 1 (Takeup weldment)
029c N/A Not available 1 (Plate with nut weldment)
029d 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
030a N/A Not available 1 (Exhaust muffler assembly)
030b N/A Not available 1 (Aluminum bracket)
030c N/A Not available 2 (Foam)
031 N/A Not available 1 (Extractor assembly)
033a N/A Not available 1 (Not Available) Plate assembly
033b N/A Not available 1 (Aluminum plate)
033c N/A Not available 1 (Foam gasket)
034 181-0396 Quick disconnect coupling (OBSOLETE) 1
035 181-0397 Grommet 1
036 N/A Not available 1 (Hose)
037 172-4032 Grommet 1
038 172-8932 Poly-V belt 1
039 N/A Not available 1 (Not Available) Strain relief
040 181-0402 Thread guard (OBSOLETE) 1
041 N/A Not available 1 (Compression spring)
042 N/A Not available 1 (Sleeve bushing)
043 N/A Not available 1 (Machine cover)
044 N/A Not available 1 (Grommet)
045 N/A Not available 1 (Spring)
046 N/A Not available 1 (Warning decal)
048 181-0409 Steel bar (OBSOLETE) 4
049 997-2001 Hose clamp 3
