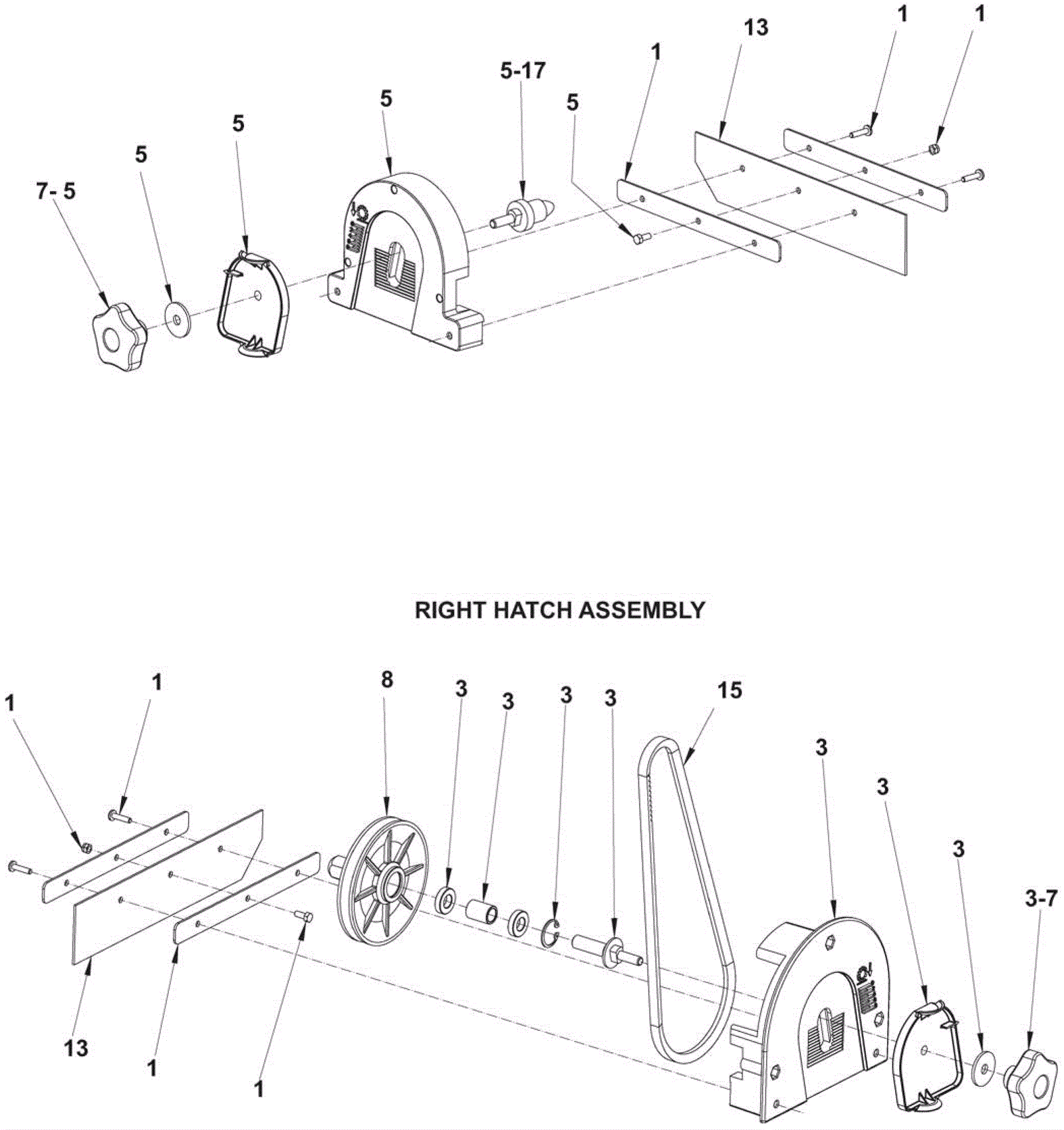

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-9526
|
Skirts kit |
$176.52
|
1 |
|
usually ships 17-28 days |
3 |
272-8982
|
Right hatch fixing kit |
$123.12
|
1 |
|
usually ships 17-28 days |
5 |
272-9809
|
Left hatch fixing kit |
$95.66
|
1 |
|
usually ships 17-28 days |
7 |
272-0709
|
Handwheel |
$12.31
|
2 |
|
ships same day |
8 |
272-8983
|
Pulley |
$46.00
|
1 |
|
usually ships 17-28 days |
13 |
272-9527
|
Non marking skirt flap |
$80.16
|
1 |
|
usually ships 17-28 days |
15 |
272-8984
|
Belt |
$42.98
|
1 |
|
ships same day |
17 |
272-8985
|
Main broom pin |
$31.10
|
1 |
|
usually ships 17-28 days |
KIT 1 |
472-0748
|
SKIRTS NO MARKING W/HRDWRE KIT |
$192.01
|
1 |
(includes 1-13) |
usually ships 17-28 days |
