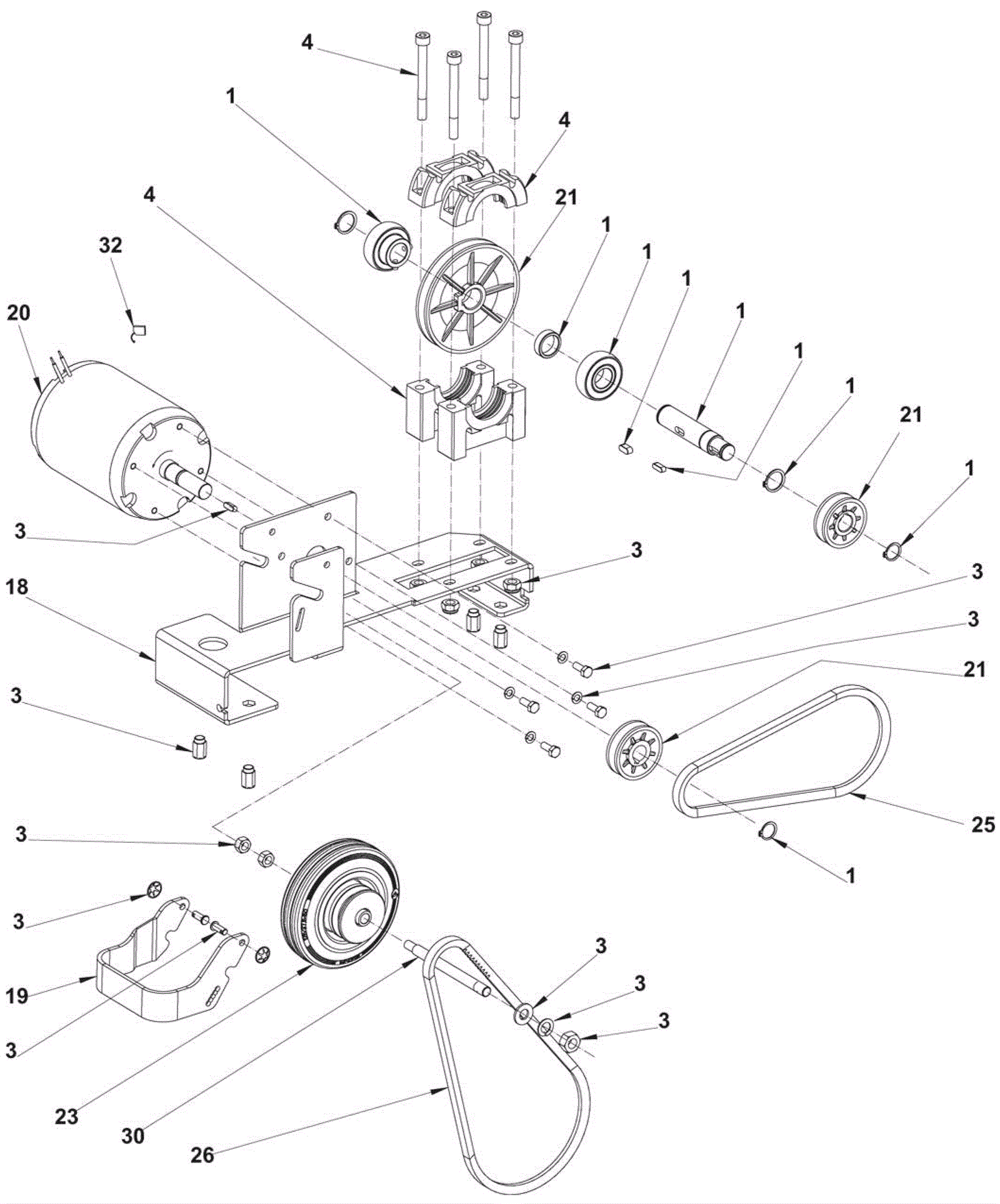

EDGE 28B Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8973 Shaft pulley kit $156.64 1 usually ships 16-41 days
3 272-8962 Transmission hardware kit $39.03 1 usually ships 16-41 days
4 272-8974 Bearing support kit $34.66 1 usually ships 1-5 days
18 272-8975 Motor support plate $216.68 1 usually ships 1-5 days
19 272-8976 Bracket $67.20 1 usually ships 1-5 days
20 272-8977 12V electric motor $745.81 1 usually ships 16-41 days
21 272-8978 Pulley kit $67.20 1 usually ships 16-41 days
23 272-8979 Friction wheel $179.06 1 usually ships 16-41 days
25 272-8980 Belt $31.83 1 usually ships 16-41 days
26 272-6577 Belt $59.87 1 ships same day
30 272-8981 Shaft $10.56 1 usually ships 16-41 days
32 172-4846 Carbon brush kit (one kit each motor) $231.75 1 usually ships 1-5 days
