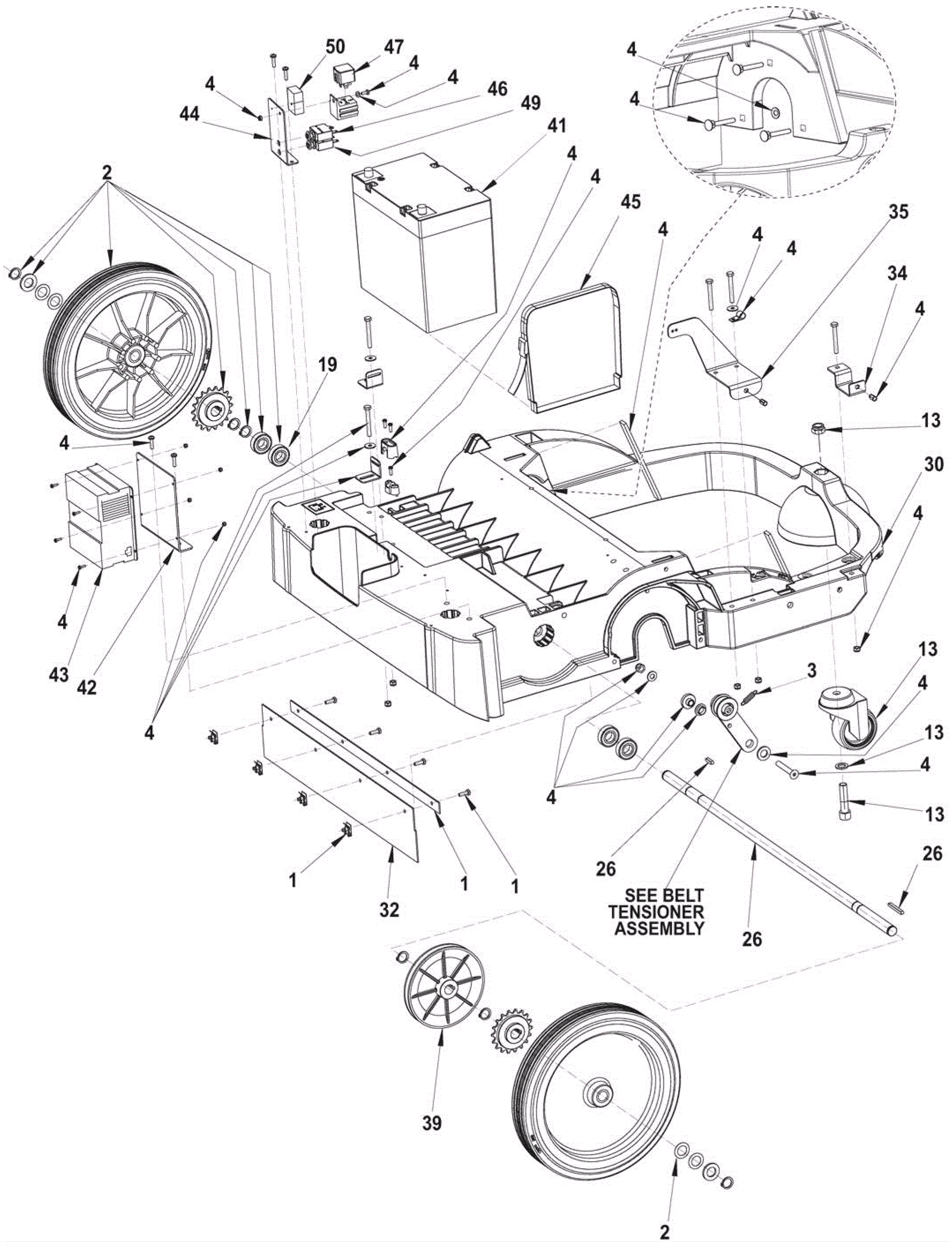

EDGE 28B Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-9526 Skirts kit $171.88 1 usually ships 16-41 days
2 272-8965 Wheel kit $268.66 2 ships same day
3 272-9488 Spring $10.56 1 usually ships 16-41 days
4 272-8966 Transmission hardware kit $216.68 1 usually ships 16-41 days
13 272-8967 Caster wheel kit $79.45 1 usually ships 16-41 days
19 172-7074 Ball Bearing $70.72 4 usually ships 16-41 days
26 272-8968 Wheel shaft kit $156.64 1 usually ships 16-41 days
30 272-9503 Chassis $373.33 1 usually ships 16-41 days
32 272-9527 Non marking skirt flap $78.05 1 usually ships 16-41 days
34 272-9507 Carter fixing bracket $30.28 1 usually ships 1-5 days
35 272-9508 Carter fixing bracket $44.79 1 usually ships 1-5 days
39 272-9512 Pulley $34.66 1 ships same day
41 162-0037 12V 42Ah gel battery $234.62 1 usually ships 4-19 days
42 272-9514 Battery charger fix bracket $36.07 1 usually ships 1-5 days
43 272-8551 12V 6amp onboard battery charger $349.53 1 ships same day
44 272-9515 Electronic component support $22.41 1 usually ships 1-5 days
45 272-8552 Battery strap $16.50 1 usually ships 1-5 days
46 272-9516 5amp circuit breaker $59.87 1 usually ships 16-41 days
47 272-9517 12V 70amp relay $37.61 1 usually ships 16-41 days
49 272-2572 30amp circuit breaker $79.45 1 usually ships 16-41 days
50 272-9519 Fuse carrier $10.56 1 usually ships 1-5 days
N/S 272-9524 Machine harness $380.52 1 usually ships 1-5 days
N/S 472-0748 SKIRTS NO MARKING W/HRDWRE KIT $186.96 1 (includes 1-32) usually ships 16-41 days
N/S 272-8969 Cable extension (OBSOLETE) $24.74 1 usually ships 16-41 days
N/S 272-8970 7 1/2amp fuse $11.99 1 usually ships 1-5 days
