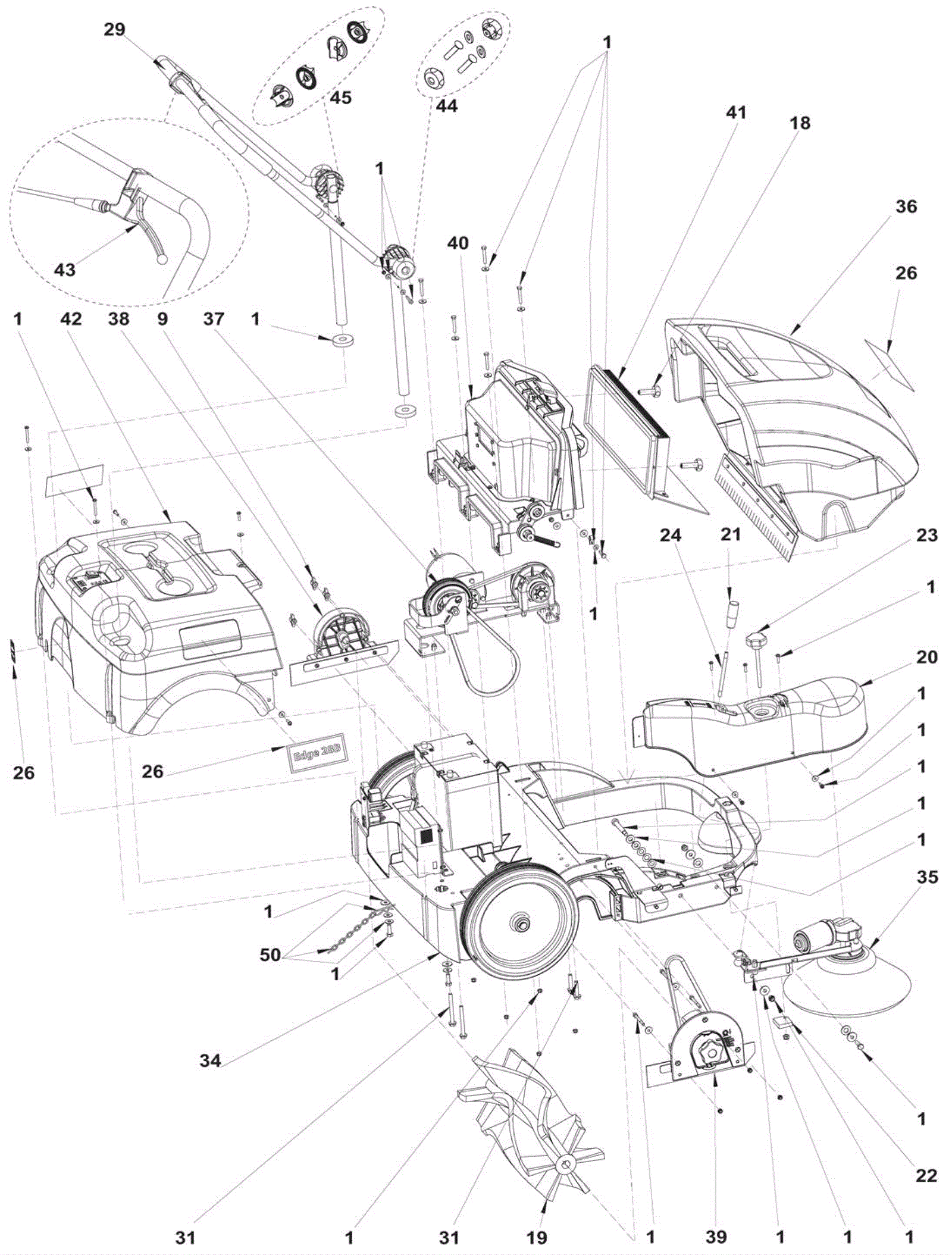

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-8954
|
Main hardware kit |
$40.55
|
1 |
|
ships same day |
9 |
272-0772
|
Nut M6 wing (pkg 5) |
$51.96
|
3 |
|
usually ships 13-18 days |
18 |
272-8955
|
M6 handwheel |
$12.89
|
2 |
|
usually ships 13-18 days |
19 |
272-8542
|
Main brush |
$168.42
|
1 |
|
ships same day |
20 |
472-1331
|
CRANKCASE SIDE BROOM GREY PKD |
$50.45
|
1 |
|
usually ships 13-18 days |
21 |
272-8957
|
Handle |
$15.85
|
1 |
|
usually ships 13-18 days |
22 |
272-8958
|
Side boom adjuster block |
$48.17
|
1 |
|
usually ships 13-18 days |
23 |
272-8959
|
M8 handwheel |
$13.78
|
1 |
|
usually ships 13-18 days |
24 |
272-9602
|
Side broom lever |
$11.35
|
1 |
|
usually ships 13-18 days |
26 |
472-0875
|
DECALS KIT EDGE 28B |
$25.30
|
1 |
|
usually ships 13-18 days |
29 |
272-8555
|
Complete handle |
$305.09
|
1 |
|
usually ships 1-5 days |
31 |
272-8962
|
Transmission hardware kit |
$41.97
|
1 |
|
usually ships 13-18 days |
34 |
N/A
|
Not available |
Call for price
|
1 |
(see Chassis Assembly for part breakdown) |
usually ships 3-26 days |
35 |
N/A
|
Not available |
Call for price
|
1 |
(see Side Broom Assembly for part breakdown) |
usually ships 3-26 days |
36 |
N/A
|
Not available |
Call for price
|
1 |
(see Hopper Assembly for part breakdown) |
usually ships 3-26 days |
37 |
N/A
|
Not available |
Call for price
|
1 |
(see Transmission Assembly for part breakdown) |
usually ships 3-26 days |
38 |
N/A
|
Not available |
Call for price
|
1 |
(see Left and Right Hatch Assembly for part breakdown) |
usually ships 3-26 days |
39 |
N/A
|
Not available |
Call for price
|
1 |
(see Left and Right Hatch Assembly for part breakdown) |
usually ships 3-26 days |
40 |
N/A
|
Not available |
Call for price
|
1 |
(see Dust Control assembly for part breakdown) |
usually ships 3-26 days |
41 |
N/A
|
Not available |
Call for price
|
1 |
(see Vacuum System and Filter Assembly for part breakdown) |
usually ships 3-26 days |
42 |
N/A
|
Not available |
Call for price
|
1 |
(see Control Panel Assembly for part breakdown) |
usually ships 3-26 days |
43 |
272-7166
|
Cable and lever assembly |
$90.13
|
1 |
|
usually ships 13-18 days |
44 |
272-8963
|
Handle fixing kit |
$46.67
|
1 |
|
usually ships 13-18 days |
45 |
181-0896
|
Handle adjuster kit |
$93.17
|
1 |
|
usually ships 13-18 days |
50 |
272-8964
|
Chain kit |
$17.74
|
1 |
|
usually ships 13-18 days |
