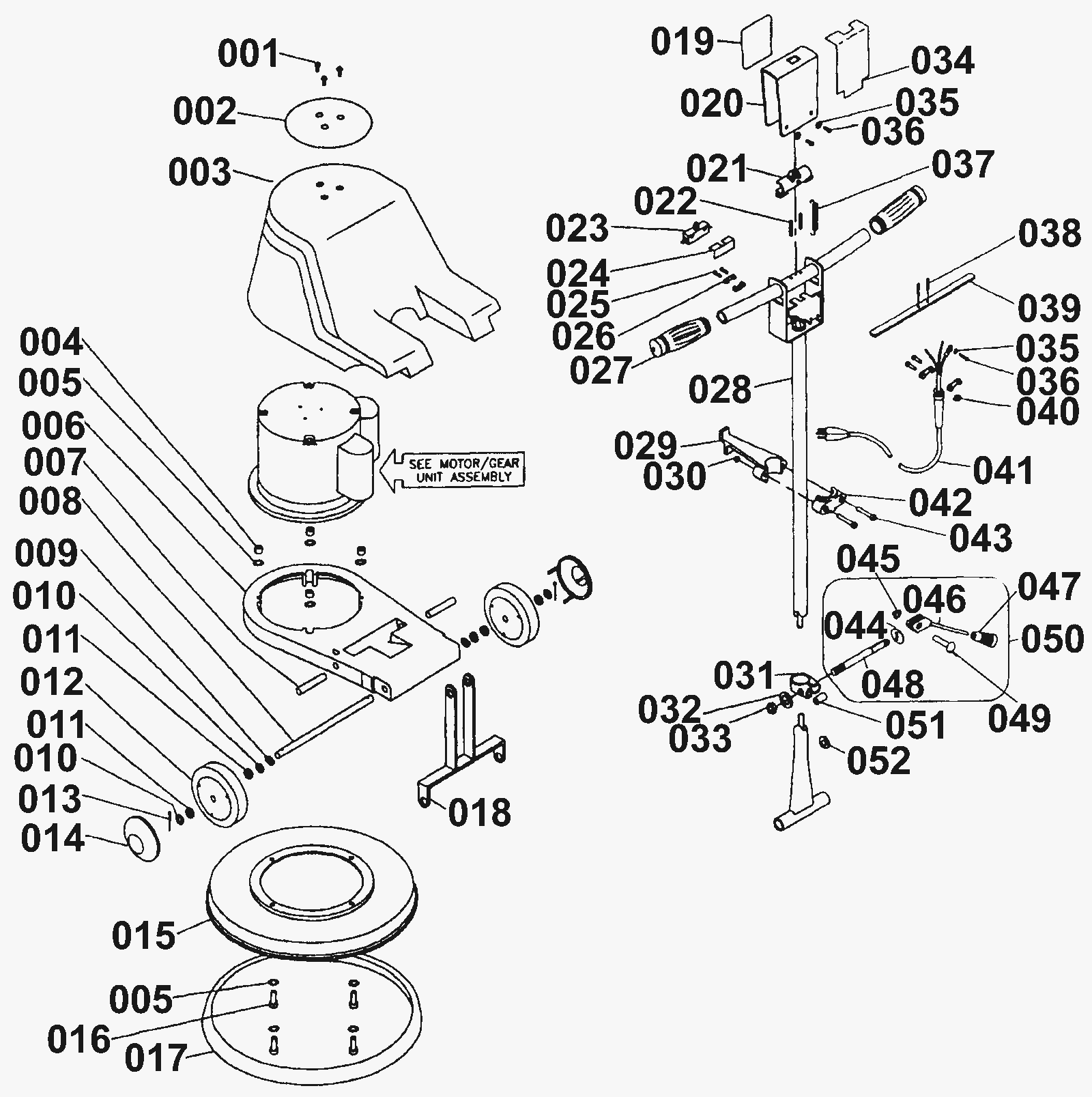

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
3 |
Screw (product is obsolete) |
|
002 |
N/A
|
Not available |
1 |
Motor cover label (product is obsolete) |
|
003 |
272-0865
|
Motor cover (OBSOLETE) |
1 |
|
|
004 |
N/A
|
Not available |
4 |
(Spacer) |
|
005 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
8 |
|
|
006 |
172-0913
|
Floor machine frame (OBSOLETE) |
1 |
|
|
007 |
172-0893
|
Spacer pin 1/2 x 2 3/4 |
2 |
|
|
008 |
181-0761
|
Axle (OBSOLETE) |
1 |
|
|
009 |
272-5215
|
Washer 17/32 |
2 |
|
|
010 |
181-0109
|
Washer 17/32 x 7/8 x 1/32 flat |
4 |
|
|
011 |
N/A
|
Not available |
4 |
Washer (this product is obsolete) |
|
012 |
172-6271
|
5 in wheel with 3 holes (OBSOLETE) |
2 |
|
|
013 |
181-0148
|
Cotter pin |
2 |
|
|
014 |
181-0314
|
Hub cap (OBSOLETE) |
2 |
|
|
015 |
172-0918
|
Brush cover 17 inch (OBSOLETE) |
1 |
|
|
016 |
N/A
|
Not available |
4 |
Screw (this product is obsolete) |
|
017 |
172-0915
|
20 inch bumper |
1 |
|
|
018 |
N/A
|
Not available |
1 |
Handle brace weldment (this product is obsolete) |
|
019 |
N/A
|
Not available |
1 |
Control box label (this product is obsolete) |
|
020 |
N/A
|
Not available |
1 |
Central box cover (this product has become obsolete) |
|
021 |
172-1746
|
Lock off switch (OBSOLETE) |
1 |
|
|
022 |
181-0285
|
Pin |
2 |
|
|
023 |
163-0054
|
On/off switch kit |
1 |
|
|
024 |
N/A
|
Not available |
1 |
Insualtion paper (this product is obsolete) |
|
025 |
999-0400
|
Screw 10-24 x 1 pan head phillips zinc plated |
4 |
|
|
026 |
N/A
|
Not available |
4 |
Plastic cable clamp (this product is obsolete) |
|
028 |
N/A
|
Not available |
1 |
Handle weldment (this product is obsolete) |
|
029 |
172-0891
|
Cord hook body (OBSOLETE) |
1 |
|
|
030 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
031 |
172-0885
|
Handle lock clamp (OBSOLETE) |
1 |
|
|
032 |
999-0721
|
Washer 7/8 USS flat zinc plated |
1 |
|
|
033 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
034 |
N/A
|
Not available |
1 |
Central label (this product is obsolete) |
|
035 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
036 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
|
037 |
172-6270
|
Spring ext (OBSOLETE) |
1 |
|
|
038 |
181-0288
|
Compressed Spring |
2 |
|
|
039 |
N/A
|
Not available |
1 |
(Trigger) |
|
040 |
172-4441
|
Ring ext type c |
1 |
|
|
041a |
N/A
|
Not available |
1 |
(Power cord gray) (OEM) |
|
041b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
041c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
042 |
172-0890
|
Cord hook cap (OBSOLETE) |
1 |
|
|
043 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
2 |
|
|
044 |
272-0373
|
Hardened washer |
1 |
|
|
045 |
N/A
|
Not available |
1 |
Push-on nut (this product is obsolete) |
|
046 |
272-0866
|
Locking handle |
1 |
|
|
047 |
272-0867
|
Handle grip |
1 |
|
|
048 |
172-1757
|
Stud clamp |
1 |
|
|
049 |
172-5933
|
Rivet 5/16 x 5/8 solid pan head (OBSOLETE) |
1 |
|
|
050 |
181-0565
|
Cam lock assembly (OBSOLETE) |
1 |
|
|
052 |
181-0397
|
Grommet |
1 |
|
|
51 |
172-0892
|
Spacer guide (OBSOLETE) |
1 |
|
|
