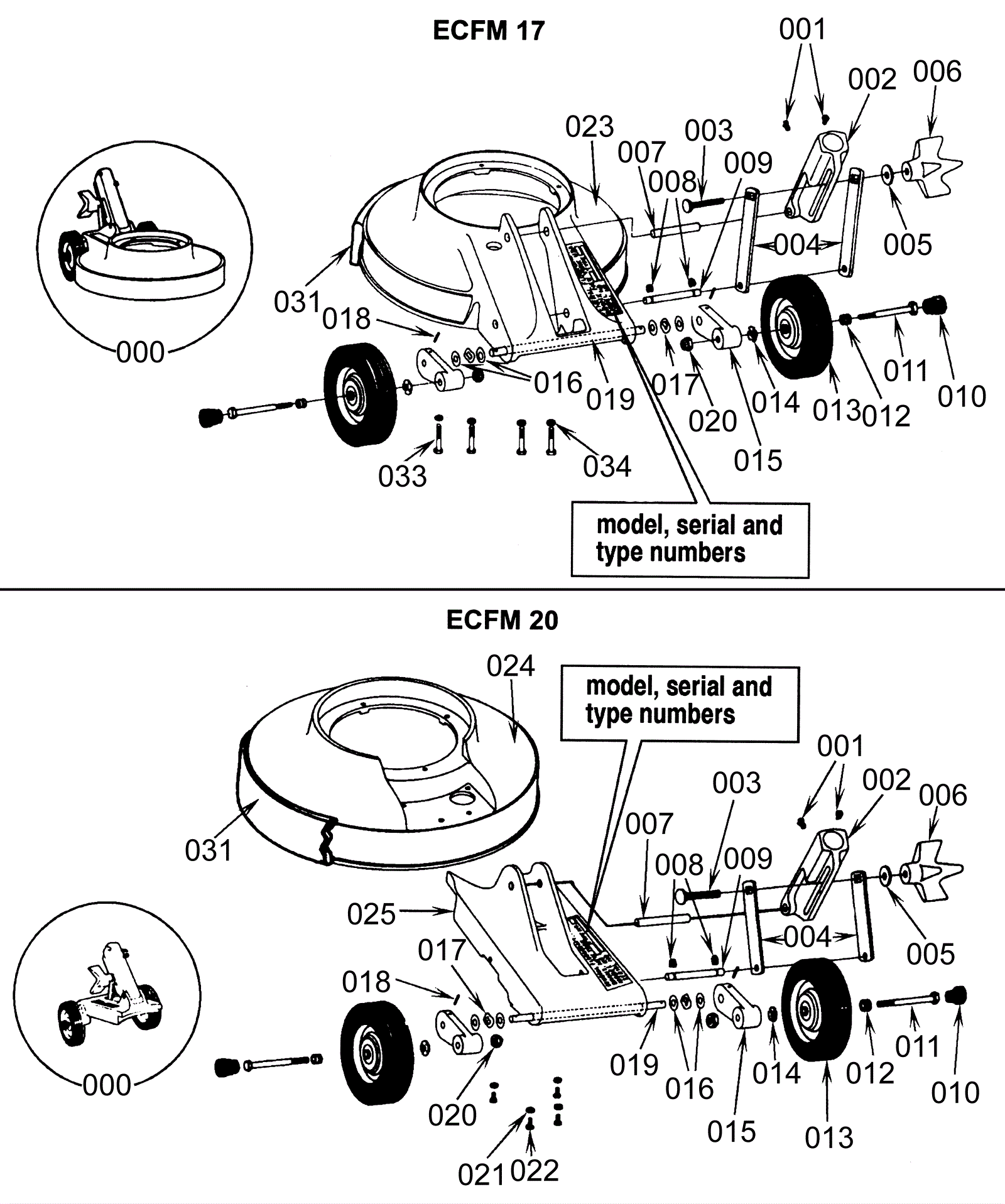

ECFM 20 Apron and Carriage Assembly

#PartDescriptionPriceReqNotesAvailability
000a 172-1694 Apron-carriage assembly (OBSOLETE) $1,101.06 ECFM 17 usually ships 1-5 days
000b 172-1695 Complete carriage assembly (OBSOLETE) $791.10 ECFM 20 usually ships 1-5 days
001 172-1604 Set screw (OBSOLETE) $13.50 usually ships 1-5 days
002 172-1696 Handle adapter (OBSOLETE) $193.86 usually ships 1-5 days
003 N/A Not available Call for price (lock link screw) usually ships 3-26 days
004 172-1698 Handle adapter link (OBSOLETE) $21.06 usually ships 1-5 days
005 172-1699 Washer (OBSOLETE) $14.04 usually ships 1-5 days
006 172-1700 Knob (OBSOLETE) $65.34 usually ships 1-5 days
007 172-1609 Pivot pin (OBSOLETE) $21.38 usually ships 1-5 days
008 172-1701 Snap ring (OBSOLETE) $7.24 usually ships 1-5 days
009 172-1702 Pivot pin (OBSOLETE) $20.52 usually ships 1-5 days
010 172-1703 Wheel axle tip (OBSOLETE) $5.94 usually ships 1-5 days
011 172-1704 Wheel axle (OBSOLETE) $12.42 usually ships 1-5 days
012 172-1614 Spacer (OBSOLETE) $6.37 usually ships 16-41 days
013 N/A Not available Call for price (Wheel) usually ships 3-26 days
014 172-1706 Tension washer (OBSOLETE) $13.50 usually ships 1-5 days
015 N/A Not available Call for price (Pivot arm) usually ships 3-26 days
016 172-1708 Washer (OBSOLETE) $5.40 usually ships 1-5 days
017 172-1709 Tension washer (OBSOLETE) $5.40 usually ships 1-5 days
018 172-1710 Pivot shaft pin (OBSOLETE) $5.94 usually ships 1-5 days
019 172-1711 Wheel carriage pivot shaft (OBSOLETE) $22.68 usually ships 1-5 days
020 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 ships same day
021 172-1712 Washer (OBSOLETE) $7.24 ECFM 20 usually ships 1-5 days
022 172-1713 Mounting bolt (OBSOLETE) $7.24 ECFM 20 usually ships 1-5 days
023 172-1714 Apron carriage (OBSOLETE) $947.70 ECFM 17 usually ships 1-5 days
024 172-1715 Apron (OBSOLETE) $756.54 ECFM 20 usually ships 1-5 days
025 172-1716 Carriage (OBSOLETE) $462.24 ECFM 20 usually ships 1-5 days
031a 172-1717 Bumper (OBSOLETE) $69.12 ECFM 17 usually ships 1-5 days
031b N/A Not available Call for price (ECFM 20) (Bumper) usually ships 3-26 days
033 172-1718 Bolt (OBSOLETE) $7.24 ECFM 17 usually ships 1-5 days
034 172-1719 Washer lock (OBSOLETE) $7.24 ECFM 17 usually ships 1-5 days
