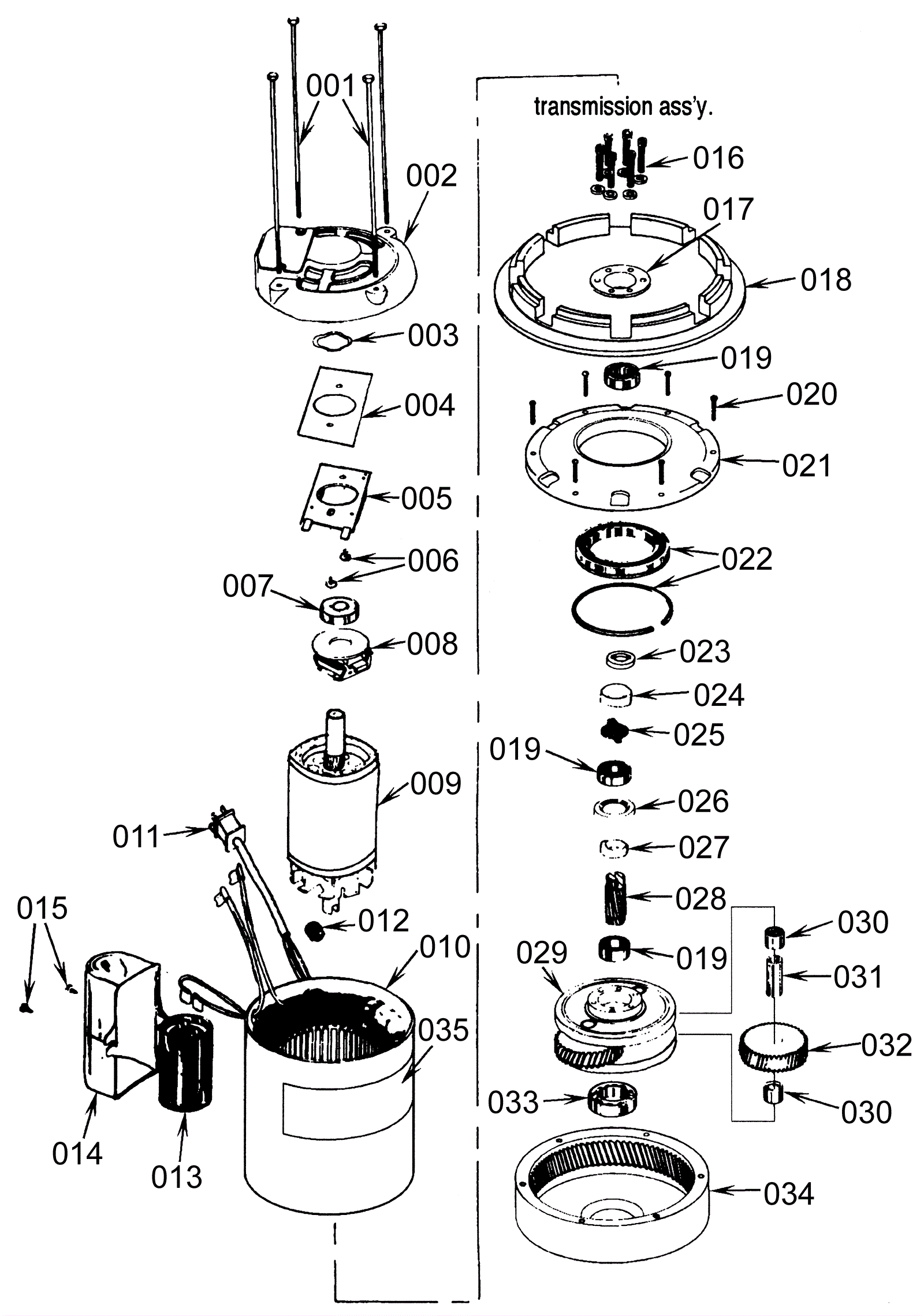

ECFM 20 Gear Head Unit

#PartDescriptionPriceReqNotesAvailability
000a 172-1658 Gear head unit 1HP (OBSOLETE) $2,723.76 ECFM 17 usually ships 1-5 days
000b 172-1659 Motor 1HP (OBSOLETE) $1,299.78 ECFM 17 usually ships 1-5 days
000c 172-1660 Transmission (OBSOLETE) $2,507.76 ECFM 17 & ECFM 20 usually ships 1-5 days
000d 172-1661 Motor 1 1/2 HP (OBSOLETE) $1,527.66 ECFM 20 usually ships 1-5 days
001 172-1662 Thru bolt (OBSOLETE) $6.91 usually ships 1-5 days
002 172-1663 Top end bell (OBSOLETE) $123.66 usually ships 1-5 days
003 172-1664 Tension spring (OBSOLETE) $6.59 usually ships 1-5 days
004 172-1665 Switch insulation (OBSOLETE) $6.48 usually ships 1-5 days
005 172-1666 Stationary switch (OBSOLETE) $116.64 usually ships 1-5 days
006 172-1667 Screw (OBSOLETE) $15.34 usually ships 1-5 days
007 172-1668 Ball bearing (OBSOLETE) $70.74 usually ships 1-5 days
008 172-1669 Rotary switch (OBSOLETE) $106.92 usually ships 1-5 days
009 N/A Not available Call for price Armature (To order give complete information found on motor plate. Field assemblies may not be available.) usually ships 3-26 days
010 N/A Not available Call for price Field assembly (To order give complete information found on motor plate. Field assemblies may not be available.) usually ships 3-26 days
011 172-1670 Motor lead (OBSOLETE) $44.82 usually ships 1-5 days
012 172-1671 Strain relief (OBSOLETE) $44.28 usually ships 1-5 days
013 172-1672 Capacitor (OBSOLETE) $100.44 usually ships 1-5 days
014 172-1673 Capacitor cover (OBSOLETE) $52.38 usually ships 1-5 days
015 172-1674 Screw (OBSOLETE) $11.88 usually ships 1-5 days
016 172-1675 Cap screw (OBSOLETE) $9.07 usually ships 1-5 days
017 172-1676 Retainer plate (OBSOLETE) $17.60 usually ships 1-5 days
018 172-1677 End bell $205.74 (part of transmission assembly) usually ships 1-5 days
019 172-1678 Ball bearing (OBSOLETE) $28.62 usually ships 1-5 days
020 172-1679 Screw (OBSOLETE) $5.40 usually ships 1-5 days
021 172-1680 Housing cover (OBSOLETE) $158.22 usually ships 1-5 days
022 172-1681 Bearing with snap ring (OBSOLETE) $130.14 usually ships 1-5 days
023 172-1682 Retaining ring (OBSOLETE) $10.80 usually ships 1-5 days
024 172-1683 Sleeve spacer (OBSOLETE) $15.12 usually ships 1-5 days
025 N/A Not available Call for price (Coupling) usually ships 3-26 days
026 172-1685 Seal (OBSOLETE) $71.82 usually ships 1-5 days
027 172-1686 Spacer (OBSOLETE) $27.54 usually ships 1-5 days
028 172-1687 Pinion gear (OBSOLETE) $120.96 usually ships 1-5 days
029 172-1688 Cage (OBSOLETE) $121.50 usually ships 1-5 days
030 172-1689 Needle bearing (OBSOLETE) $18.25 usually ships 1-5 days
031 172-1690 Idler shaft (OBSOLETE) $21.17 usually ships 1-5 days
032 172-1691 Idler gear (OBSOLETE) $105.30 usually ships 1-5 days
033 172-1692 Ball bearing (OBSOLETE) $45.90 usually ships 1-5 days
034 172-1693 Transmission housing (OBSOLETE) $83.16 usually ships 1-5 days
035 172-1600 Euroclean decal (OBSOLETE) $11.88 usually ships 1-5 days
