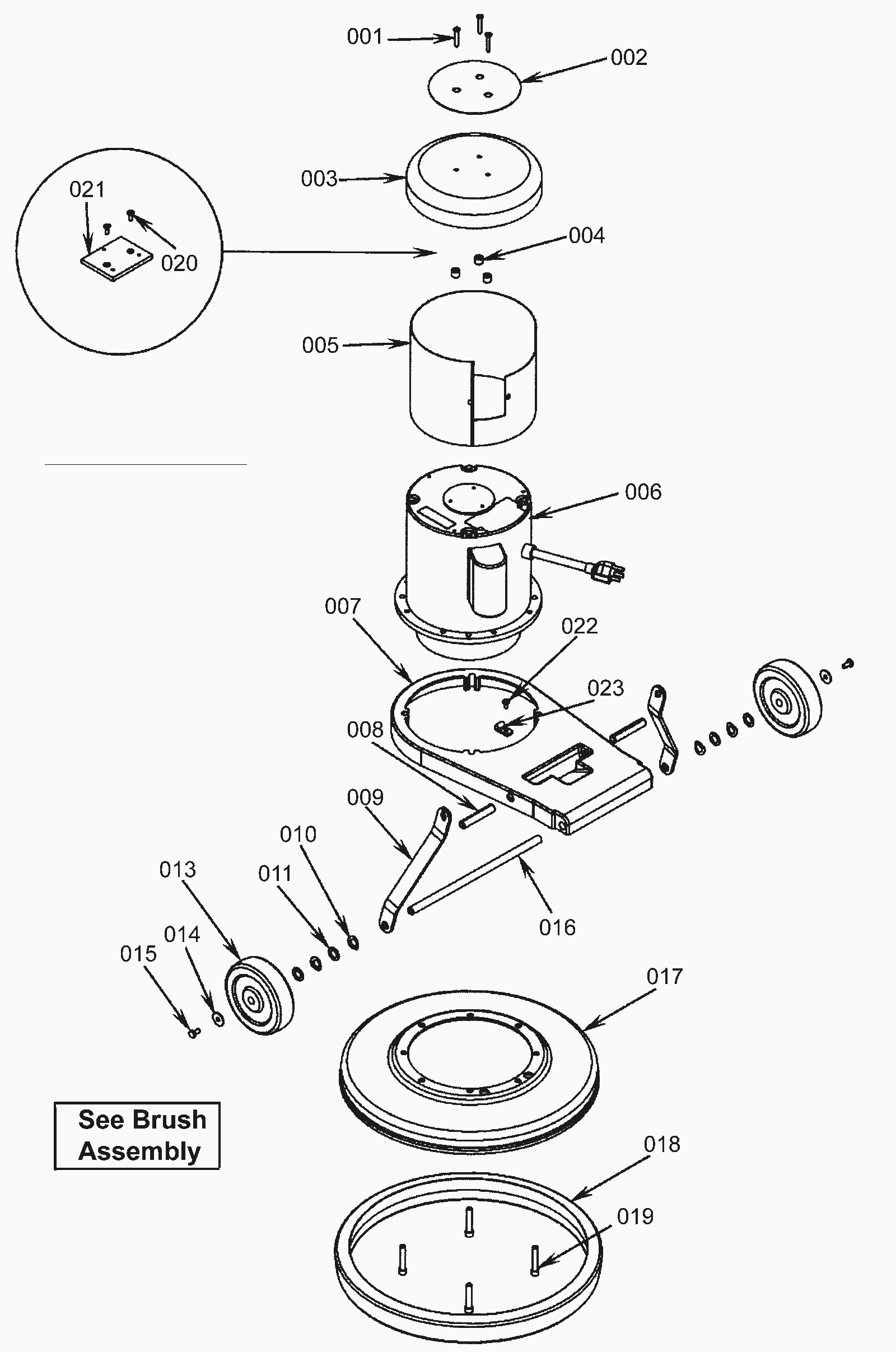

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
3 |
|
|
002a |
N/A
|
Not available |
1 |
(hard floor strip) |
|
002b |
N/A
|
Not available |
1 |
(17SL decal) |
|
002c |
N/A
|
Not available |
1 |
(20SL decal) |
|
002d |
N/A
|
Not available |
1 |
(17HD decal) |
|
002e |
N/A
|
Not available |
1 |
(20HD decal) |
|
003a |
181-1137
|
Dark gray drip cover (OBSOLETE) |
1 |
|
|
003b |
181-0822
|
Motor drip cover (OBSOLETE) |
1 |
|
|
004 |
181-0176
|
Phenolic spacer |
3 |
|
|
005a |
181-1139
|
Screen black (OBSOLETE) |
1 |
|
|
005b |
181-0841
|
Screen (OBSOLETE) |
1 |
|
|
005c |
181-0842
|
Perforated shield (OBSOLETE) |
1 |
|
|
006a |
181-1134
|
1/2 HP motor (OBSOLETE) |
1 |
|
|
006b |
N/A
|
Not available |
1 |
(Gear unit) |
|
006c |
172-0936
|
Motor/Gearbox 1 1/4hp (OBSOLETE) |
1 |
|
|
006d |
172-0937
|
Front bearing (OBSOLETE) |
1 |
|
|
006e |
N/A
|
Not available |
1 |
Stationary switch |
|
006f |
N/A
|
Not available |
1 |
Rotor switch |
|
006g |
172-0940
|
Start capacitor (OBSOLETE) |
1 |
|
|
006h |
172-0941
|
Gear head assembly (OBSOLETE) |
1 |
|
|
006i |
172-0942
|
13 teeth pinion (OBSOLETE) |
1 |
|
|
006j |
170-0694
|
Odum coupling |
1 |
|
|
006k |
181-0787
|
Motor 115v 1.5hp (OBSOLETE) |
1 |
|
|
006m |
172-4173
|
Stationary Switch (OBSOLETE) |
1 |
|
|
006n |
172-4172
|
Start Capacitor (OBSOLETE) |
1 |
|
|
006o |
172-4171
|
Run Capacitor (OBSOLETE) |
1 |
|
|
007 |
172-0913
|
Floor machine frame (OBSOLETE) |
1 |
|
|
008 |
172-0893
|
Spacer pin 1/2 x 2 3/4 |
2 |
|
|
009 |
172-0917
|
Connecting leg (OBSOLETE) |
2 |
|
|
010 |
172-4550
|
Washer 33/64 x 1/64 bowed |
4 |
|
|
011 |
181-0109
|
Washer 17/32 x 7/8 x 1/32 flat |
4 |
|
|
013 |
172-3050
|
5 inch wheel |
2 |
|
|
014 |
172-0553
|
Washer 17/64 x 1/16 flat |
2 |
|
|
015 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
016 |
172-3049
|
Axle (OBSOLETE) |
1 |
|
|
017a |
181-0854
|
Brush cover skirt (OBSOLETE) |
1 |
|
|
017b |
172-0918
|
Brush cover 17 inch (OBSOLETE) |
1 |
|
|
017c |
172-0919
|
Brush cover 20 inch (OBSOLETE) |
1 |
|
|
018a |
N/A
|
Not available |
1 |
(Bumper) |
|
018b |
172-0914
|
Bumper 17 inch floor machine (OBSOLETE) |
1 |
|
|
018c |
172-0915
|
20 inch bumper |
1 |
|
|
019 |
999-0734
|
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
4 |
|
|
020 |
172-4624
|
Screw 10-24 x 1/2 flat head phillips thread forming |
2 |
|
|
021 |
181-1136
|
Drip cover mounting plate (OBSOLETE) |
1 |
|
|
022 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
|
023 |
172-4594
|
Cord clamp |
1 |
|
|
N/S |
170-0694
|
Odum coupling |
|
|
|
