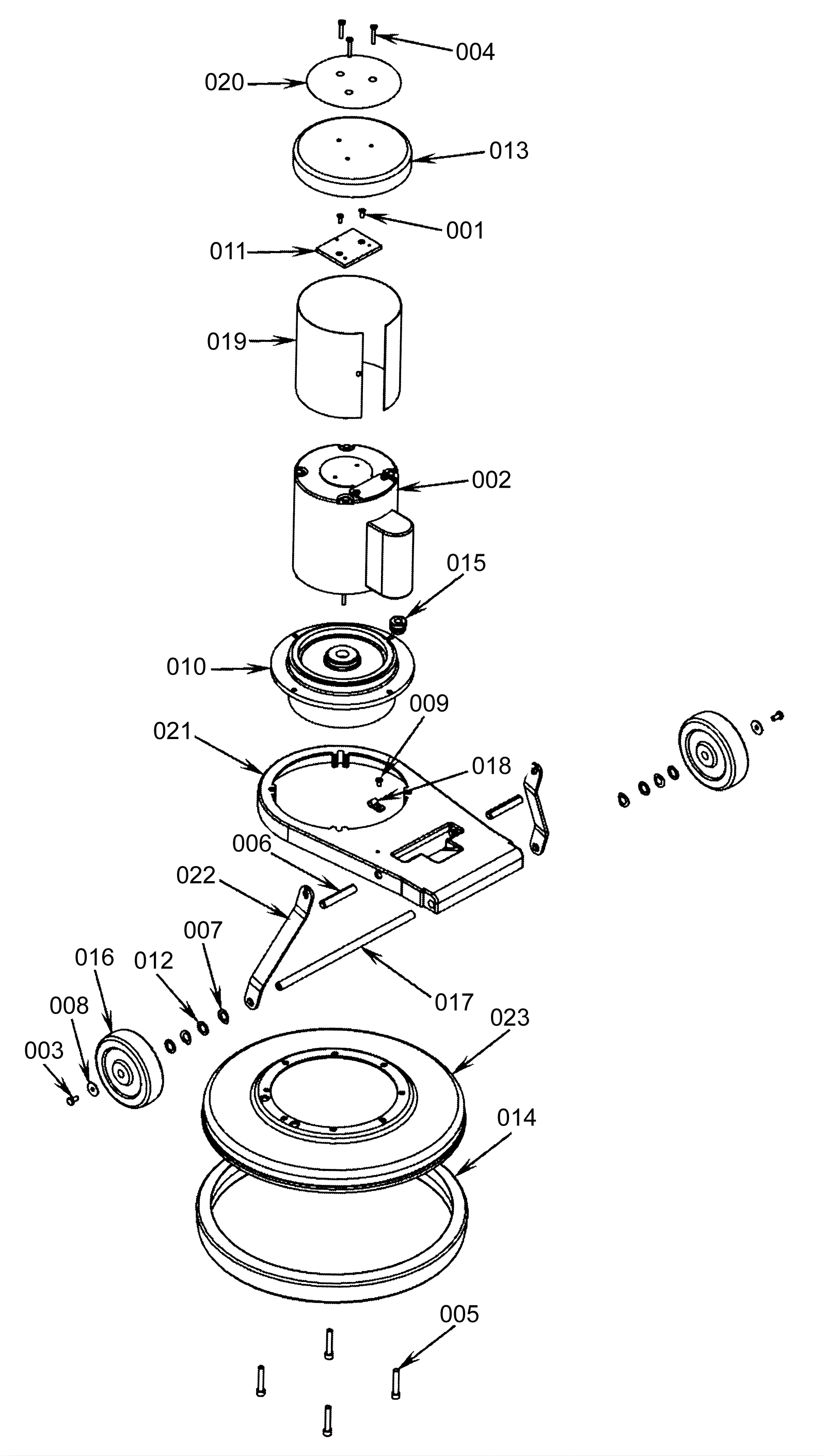

SD 130 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming $9.60 2 (pad holders and brushes come complete with indeustry standard NP92 clutch plate) usually ships 1-5 days
002 181-1134 1/2 HP motor (OBSOLETE) $595.76 1 usually ships 1-5 days
003 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
004 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 3 ships same day
005 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated $1.25 4 ships same day
006 172-0893 Spacer pin 1/2 x 2 3/4 $8.43 2 usually ships 1-5 days
007 172-4550 Washer 33/64 x 1/64 bowed $10.90 4 usually ships 16-41 days
008 172-0553 Washer 17/64 x 1/16 flat $9.60 2 usually ships 16-41 days
009 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
010 N/A Not available Call for price 1 (Gear unit) usually ships 3-26 days
011 181-1136 Drip cover mounting plate (OBSOLETE) $22.71 1 usually ships 1-5 days
012 181-0109 Washer 17/32 x 7/8 x 1/32 flat $9.56 4 usually ships 16-41 days
013 181-1137 Dark gray drip cover (OBSOLETE) $30.24 1 usually ships 1-5 days
014 N/A Not available Call for price 1 (Bumper) usually ships 3-26 days
015 172-2508 Strain relief (OBSOLETE) $7.78 1 usually ships 1-5 days
016 172-3050 5 inch wheel $24.23 2 usually ships 7-17 days
017 172-3049 Axle (OBSOLETE) $46.00 1 usually ships 16-41 days
018 172-4594 Cord clamp $8.00 1 usually ships 1-5 days
019 181-1139 Screen black (OBSOLETE) $42.10 1 usually ships 1-5 days
020 181-1140 Decals (OBSOLETE) $10.06 1 usually ships 1-5 days
021 172-0913 Floor machine frame (OBSOLETE) $51.84 1 usually ships 1-5 days
022 172-0917 Connecting leg (OBSOLETE) $204.91 2 usually ships 1-5 days
023 181-0854 Brush cover skirt (OBSOLETE) $71.82 1 usually ships 1-5 days
