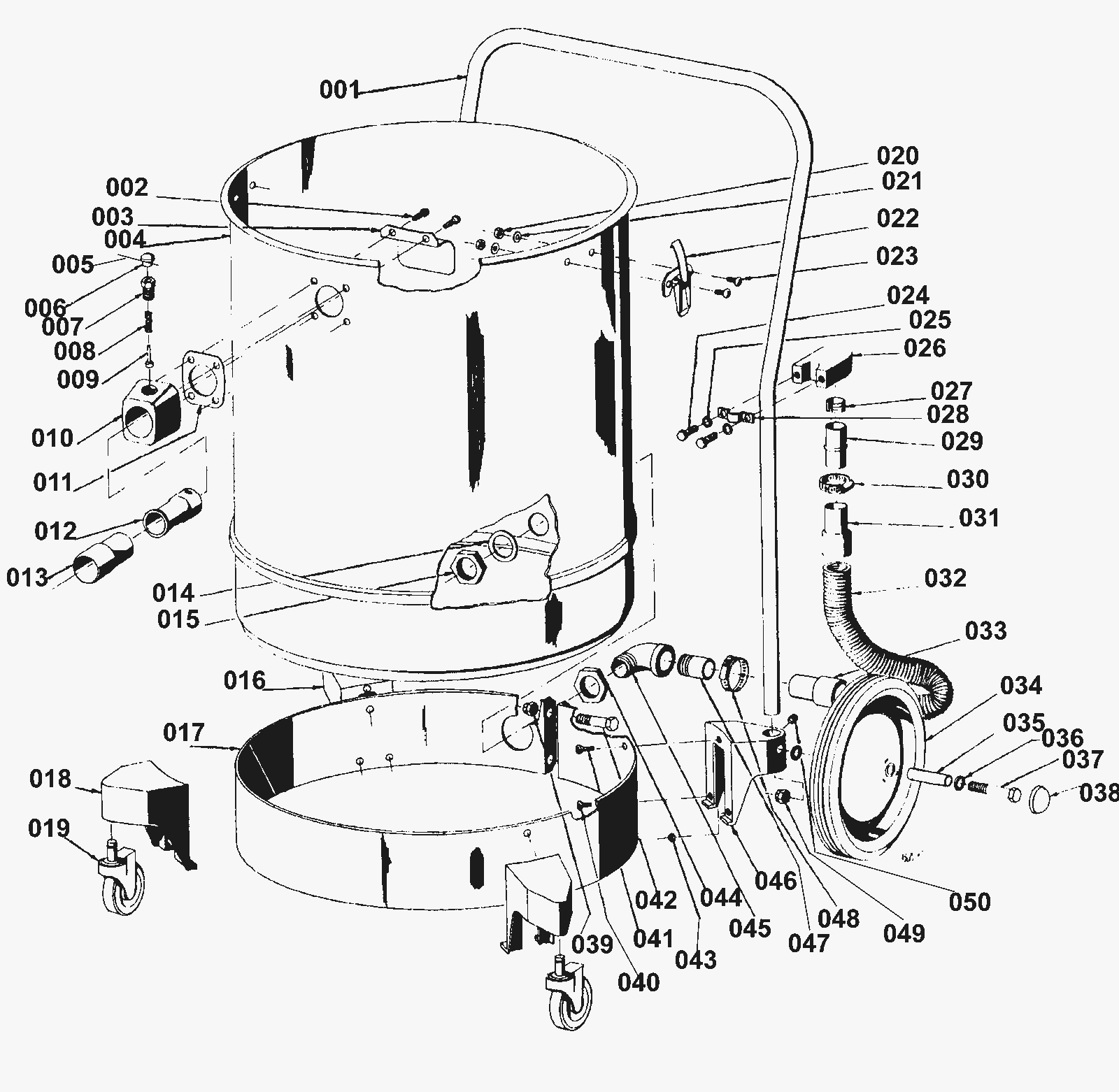

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Carriage Handle |
|
002 |
999-0193
|
Screw 10-24 x 5/8 pan head slotted thread cutting zinc |
4 |
|
|
003 |
N/A
|
Not available |
1 |
Inlet deflector |
|
004 |
N/A
|
Not available |
1 |
Vacuum Tank |
|
005a |
181-0707
|
Knob assembly (OBSOLETE) |
1 |
|
|
005b |
172-4447
|
Pin .062 x .38 grooved type e (OBSOLETE) |
1 |
|
|
006 |
272-2645
|
Knob (OBSOLETE) |
1 |
|
|
007 |
272-2646
|
Coupling lock sleeve (OBSOLETE) |
1 |
|
|
008 |
272-2647
|
Coupling lock spring (OBSOLETE) |
1 |
|
|
009 |
272-2648
|
Coupling lock pin (OBSOLETE) |
1 |
|
|
011 |
N/A
|
Not available |
1 |
(Gasket) |
|
012 |
172-8055
|
Coupling tube (OBSOLETE) |
1 |
|
|
013 |
272-0227
|
Hose cuff (OBSOLETE) |
1 |
|
|
014 |
N/A
|
Not available |
1 |
Seal |
|
015 |
N/A
|
Not available |
1 |
1 Inch pipe nut |
|
016 |
272-2650
|
Right wheel bracket (OBSOLETE) |
1 |
|
|
017 |
N/A
|
Not available |
1 |
Carriage band |
|
018 |
N/A
|
Not available |
2 |
Caster wheel bracket |
|
019 |
272-2651
|
3 inch caster |
2 |
|
|
020 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
021 |
N/A
|
Not available |
4 |
Seal washer |
|
022 |
272-2652
|
Toggle clamp |
2 |
|
|
023 |
999-0645
|
Screw 10-24 x 3/8 round head phillips stainless steel |
4 |
|
|
024 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
025 |
N/A
|
Not available |
2 |
(Gasket) |
|
026 |
N/A
|
Not available |
1 |
Hose support assembly |
|
027 |
N/A
|
Not available |
1 |
Spring button |
|
028 |
N/A
|
Not available |
1 |
Clamp |
|
029 |
N/A
|
Not available |
1 |
Ferrule |
|
030 |
N/A
|
Not available |
1 |
(Hose clamp) |
|
031 |
N/A
|
Not available |
1 |
Hose cuff |
|
032 |
N/A
|
Not available |
1 |
(hose and cuff assembly) |
|
033 |
N/A
|
Not available |
1 |
Hose cuff |
|
034 |
N/A
|
Not available |
2 |
10 Inch wheel |
|
035 |
N/A
|
Not available |
2 |
Spacer |
|
036 |
999-0721
|
Washer 7/8 USS flat zinc plated |
4 |
|
|
037 |
999-0796
|
Bolt 3/8-16 x 3 3/4 hex head stainless steel |
2 |
|
|
038 |
N/A
|
Not available |
2 |
Hub cap |
|
039 |
999-0340
|
Nut 5/16-24 nylon insert lock zinc plated |
2 |
|
|
040 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
041 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
4 |
|
|
042 |
999-1190
|
Bolt 5/16-24 x 1 1/2 hex head hot dipped galvanized |
2 |
|
|
043 |
999-1068
|
Nut 10-24 hex reversible lock zinc plated |
12 |
|
|
044 |
N/A
|
Not available |
1 |
1 Inch pipe nut |
|
045 |
N/A
|
Not available |
1 |
Elbow |
|
046 |
272-2653
|
Left wheel bracket (OBSOLETE) |
1 |
|
|
047 |
N/A
|
Not available |
1 |
Pipe |
|
048 |
N/A
|
Not available |
1 |
(Hose clamp) |
|
049 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
050 |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
|
