| # | Part | Description |
Req | Notes | Availability |
|---|

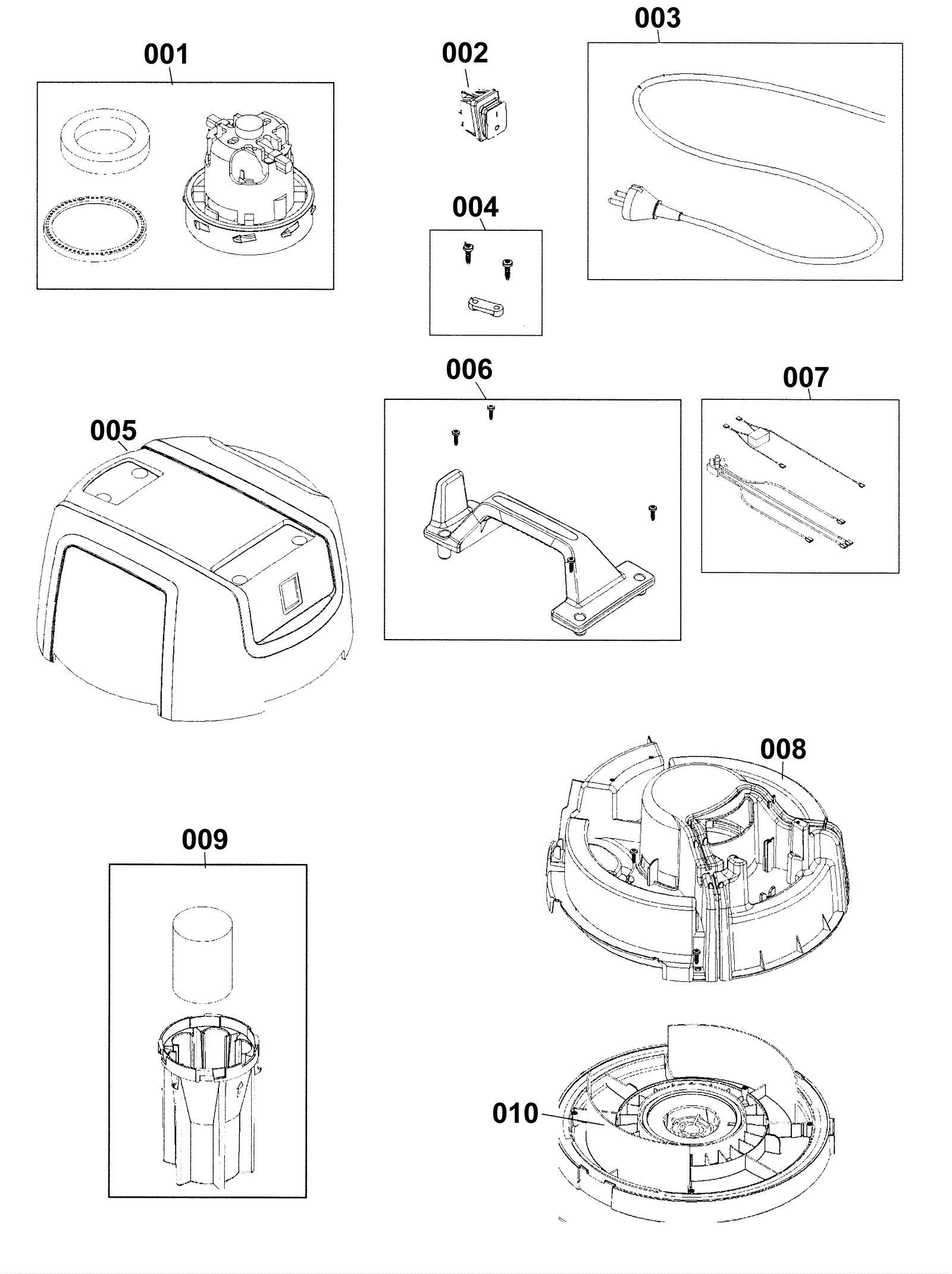

001a |
272-0001
|
120V 1 stage vacuum motor assembly (includes gaskets) |
1 |
Gaskets included |
|
001b |
272-6781
|
Gasket |
|
|
|
002 |
272-0112
|
Rocker switch |
2 |
|
|
003 |
272-0113
|
16/3 power cord 50 foot |
1 |
|
|
004 |
272-0115
|
Anti strain clip |
1 |
Screws included |
|
005 |
272-0122
|
Outer cover |
1 |
Screws included |
|
006 |
272-0123
|
Handle |
1 |
Screws included |
|
007 |
272-0135
|
Internal wires (OBSOLETE) |
1 |
|
|
008 |
272-1230
|
Vacuum motor cover (OBSOLETE) |
1 |
|
|
009 |
272-1231
|
Float cage assembly |
1 |
|
|
010 |
272-1232
|
Fan unit bottom chassis |
1 |
|
|
